PAP10 PAP20 Maintenance Free Bearings Dry Sliding Type For Printing Machinery
PAP10 PAP20 Maintenance Free Bearings Dry Sliding Type For Printing Machinery
PAP10 PAP20 Maintenance Free Bearings Dry Sliding Type For Printing Machinery
PAP10 PAP20 Maintenance Free Bearings Dry Sliding Type For Printing Machinery
Specifications
Brand Name :
WHB
Model Number :
PAP
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
800000pcs per month
Delivery Time :
7-10 work days
Packaging Details :
Standard export carton, wooden case,wood pallet.
Keywords :
Dry Sliding Bearing
Material :
carbon steel
Apply for :
Printing Machinery
Size :
Customizable
Feature :
maintenance-free
Advantage :
low coefficient of friction
Description

PAP10 PAP20 Dry Sliding Bearing Strips Material For Printing Machinery​

1. Product Description

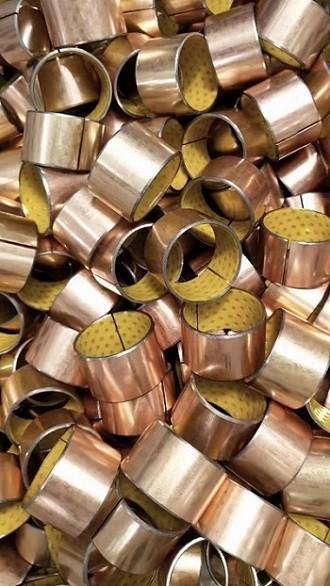

PAP10 PAP20 Dry Sliding Bearing Strips Material For Printing Machinery are made up with Metal-Polymer Composite Self-lubricating Bushing Material Steel Back + Bronze Powder Sinter + PTFE/POM. This material meets the demanding criteria for long life and maintenance free performance with or without lubrication. This material section can be used to make sliding elements in a variety.

2. Specification

Load capacity Static load 250
N/mm2		 PVvalue limit Oil lubrication 60
N/mm2.m/s
Dymamic load 140
N/mm2		 Dry friction 3.6
N/mm2.m/s
Oscillating 60
N/mm2		 Friction coef μ 0.03~0.20
Speed limit Oil lubrication 5m/s Working temperature -195℃~+280℃
Dry friction 2m/s Thermal conductivity 42 W/mk
Coefficient of linearexpansion 11
10 -6/K

3. Application

PAP10 PAP20 Dry Sliding Bearing Strips Material For Printing Machinery are widely used in agriculture machinery,building machinery,hydraulic machinery etc.

4. Advantages

This products offer very good wear and low friction performance over a wide range of loads,speeds and temperatures in dry running conditions. Anti-friction bearing suitable for linear,losccillating and rotating movements. Material is designed to operate without supplemental lubrication and will perfom excellent when lubrication is present.low friction,low wear rate,good sliding characteristics and very low absorption are a few of the features of this material.
