Customizable Flanged Sleeve Bearing , Anti Corrosion Metal Polymer Bearings
Customizable Flanged Sleeve Bearing , Anti Corrosion Metal Polymer Bearings
Specifications
Brand Name :
WHB
Model Number :
DU
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000000pcs per month
Delivery Time :
7-10 work days
Packaging Details :
Standard export carton, wooden case,wood pallet.
Keywords :
Thermoplastic
Material :
carbon steel
Apply for :
hydraulic machinery
Size :
Customizable
Feature :
short design time
Advantage :
anti-corrosion
Description

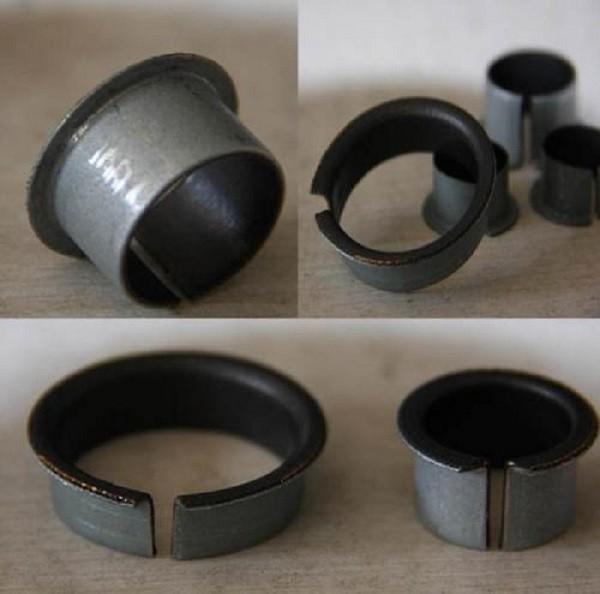

Thermoplastic Flanged Sliding Bearing Metal - Polymer With Anti-corrosion

1. Product Description

Thermoplastic Flanged Sliding Bearing Metal - Polymer With Anti-corrosion consists of steel + bronze powder+ PTFE/Fibre, the material suitable for lubricated applications,over a wide range of loads, speeds and temperatures in dry running conditions,it supports rotary, linear and oscillating motion.

2. Specification

Load capacity Static load 250
N/mm2		 PVvalue limit Oil lubrication 60
N/mm2.m/s
Dymamic load 140
N/mm2		 Dry friction 3.6
N/mm2.m/s
Oscillating 70
N/mm2		 Friction coef μ 0.05~0.30
Speed limit Oil lubrication 5m/s Working temperature -195℃~+280℃
Dry friction 2.5m/s Thermal conductivity 40 W/mk
Coefficient of linearexpansion 11
10 -6/K

3. Application

Thermoplastic Flanged Sliding Bearing Metal - Polymer With Anti-corrosion are widely used in hydraulic machinery,textile machine,chemical machinery etc.

4. Advantages
This material meets the demanding criteria for long life and maintenance free performance with or without lubrication. The products are widely used in all industrial fields where lead is unacceptable.High static and dynamic load capacity suitable for rotating,oscillating and sliding movement,the bearing lining can be machinable after fixed.
