Specifications
Brand Name :
WHB
Model Number :
DX
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
4000000pcs per month
Delivery Time :
7-15 work days
Packaging Details :
Export carton, wooden case, wood pallet.
Keywords :
Boundary Lubricated
Material :
carbon steel
Apply for :
rolling steel machinery
Size :
Customizable
Feature :
easy installation
Advantage :
anti-corrosion
Description

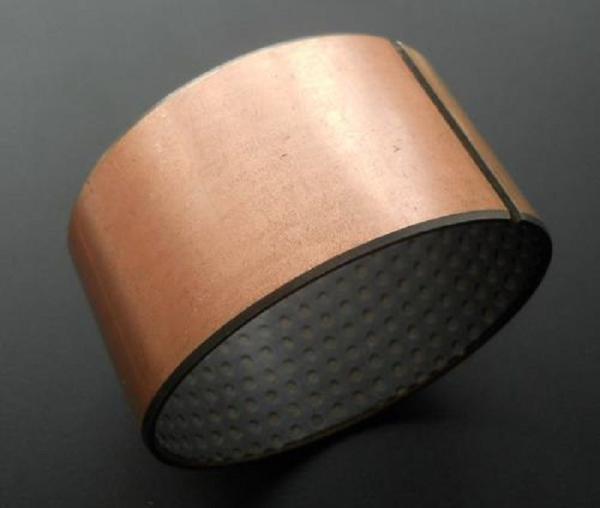

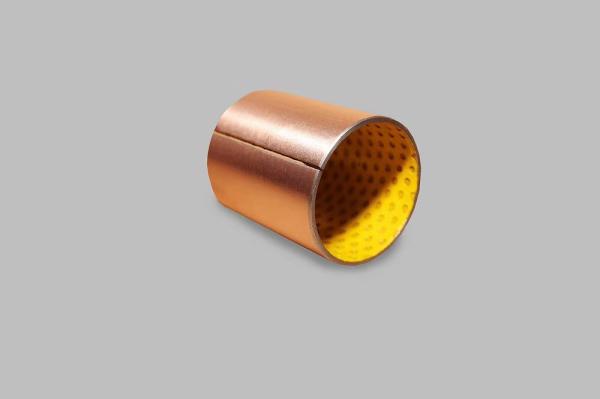

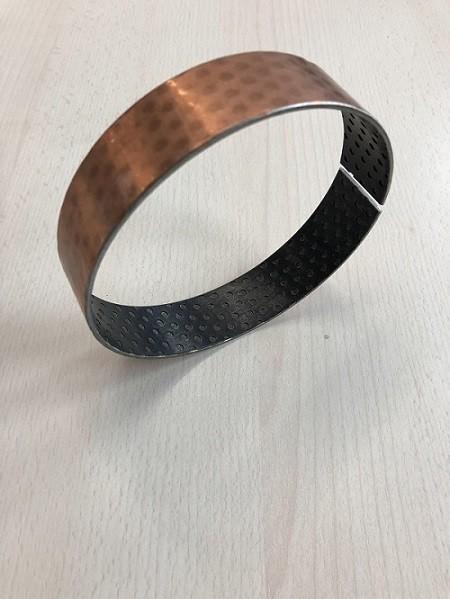

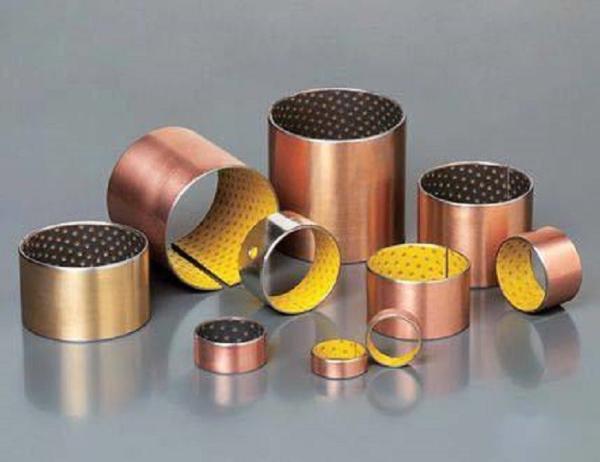

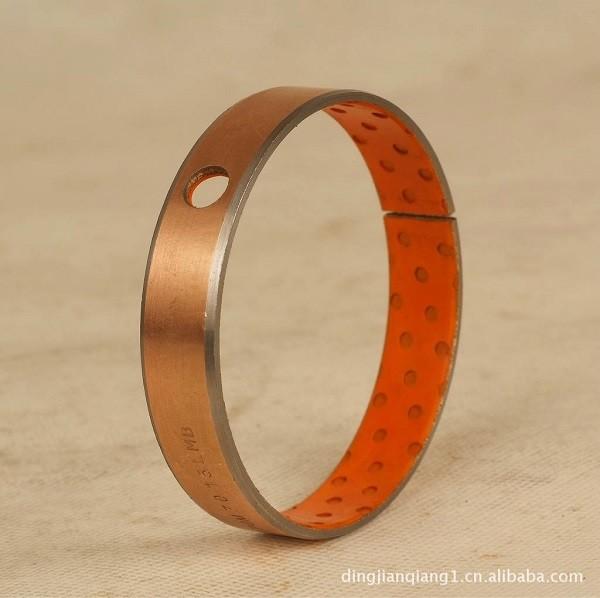

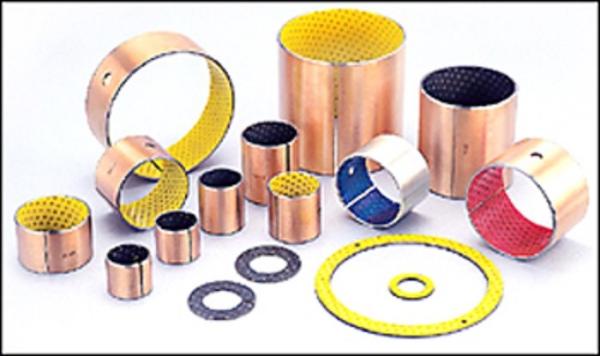

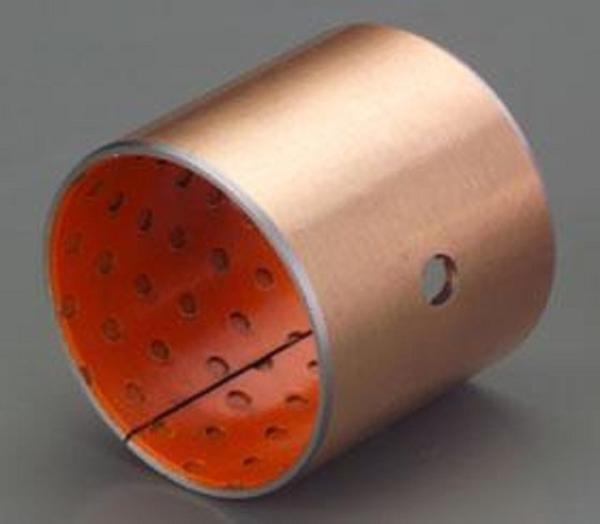

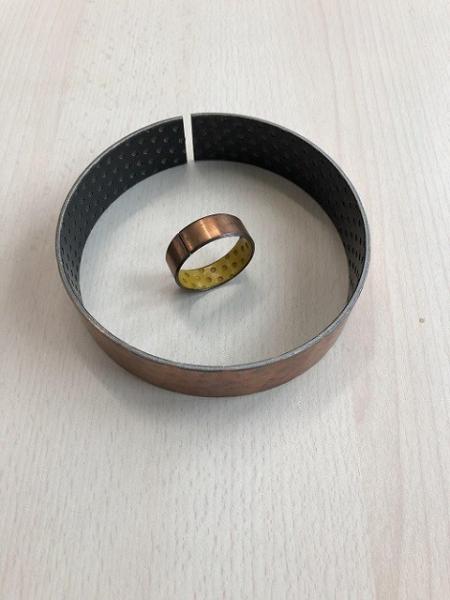

Anti Corrosion Boundary Lubricated Bearing 3 Firmly Bonded Layers Type

1. Product Description

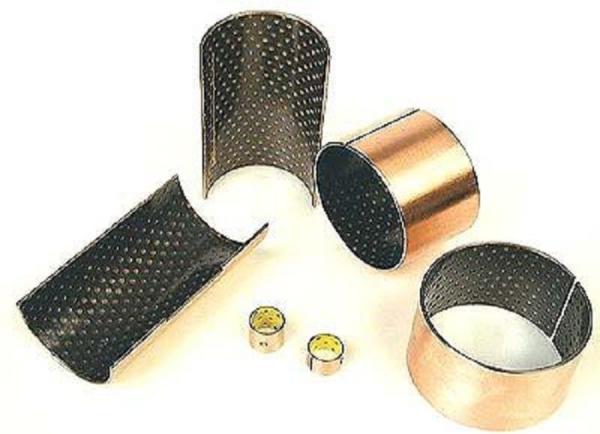

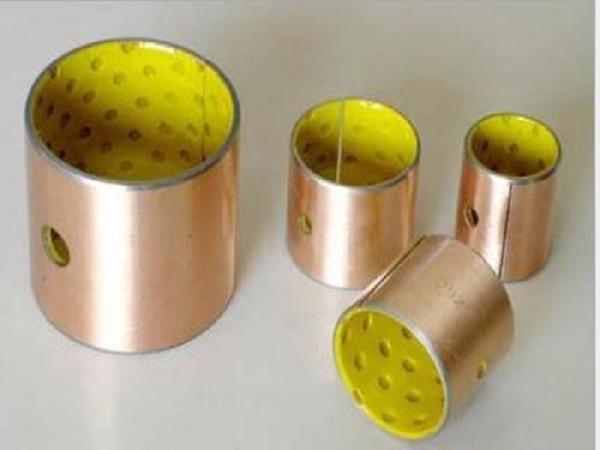

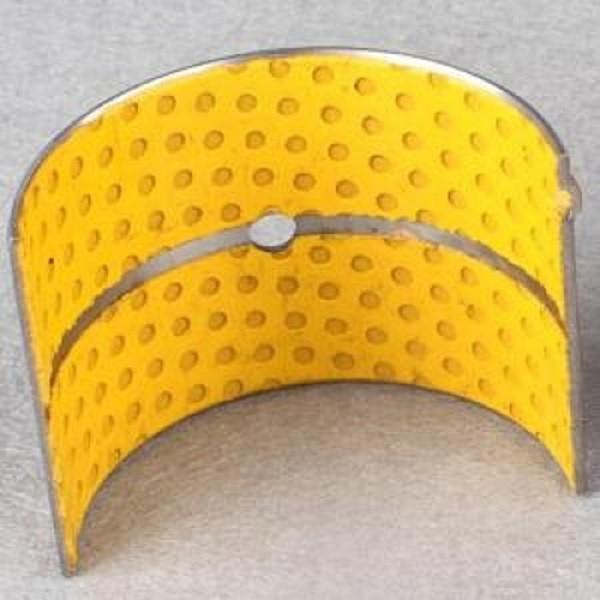

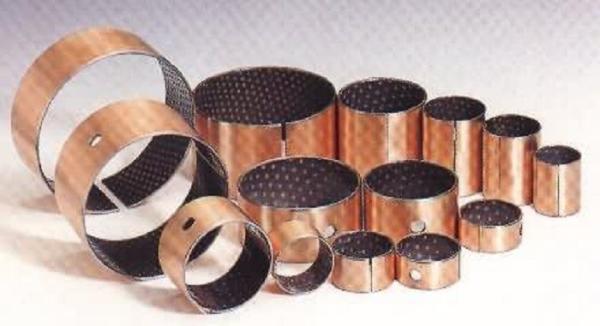

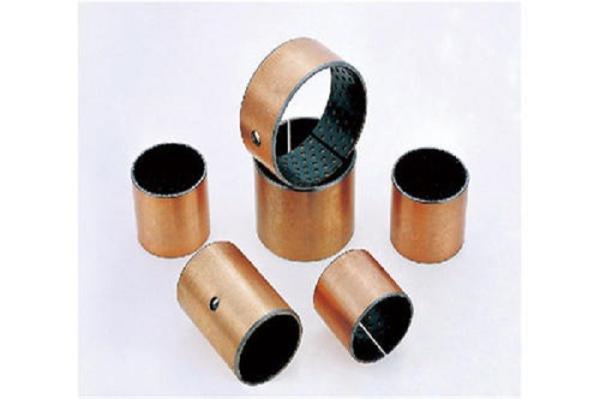

Boundary Lubricated Bearing is based on a composite material with 3 firmly bonded layers: steel as backing.sintered porous bronze powder as interlayer and modified POM as lining layer.It has oil pocket for oil lubrication.It fits well for slow speed,heavy duty under normal temperature.

2. Specification

Load capacity Static load 250N/mm2 Friction coef μ 0.05~0.25
Dymamic load 140N/mm2 Working temperature -40℃~+130℃
Oscillating 60N/mm2 Themal conductivity 13W/mk
PV value limit Oil lubrication 22N/mm2.m/s Speed limit (in oil) 2.5m/s
Dry friction 2.8N/mm2.m/s Coefficient of linearexpansion 11×10-6/K

3. Application

Anti Corrosion Boundary Lubricated Bearing 3 Firmly Bonded Layers Type are widely applied in auto chassis, forging machine,metallurgical and mining equipment,construction machinery, power station,strip rolling industries etc.

4. Advantages

This type of boundary lubricated bearing can be work even if it is without lubricant or under atrace of oil. It is of low friction, anti-corrosion and is of long life.It can save cost and prolong working life when replacing normal bronze bushings,It can lower frquenc of adding oil,simplify replacement process when it is used on rolling mill.
