High Strength Boundary Lubricated Bearing European Standard , PTFE Sleeve Porous Bearing
High Strength Boundary Lubricated Bearing European Standard , PTFE Sleeve Porous Bearing
High Strength Boundary Lubricated Bearing European Standard , PTFE Sleeve Porous Bearing
High Strength Boundary Lubricated Bearing European Standard , PTFE Sleeve Porous Bearing
Specifications
Brand Name :
WHB
Model Number :
DX
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5000000pcs per month
Delivery Time :
7-15 work days
Packaging Details :
Export carton, wooden case, wood pallet.
Keywords :
Porous Polymer
Material :
carbon steel
Apply for :
hydraulic machinery
Size :
Customizable
Feature :
size stability
Advantage :
low coefficient of friction
Description

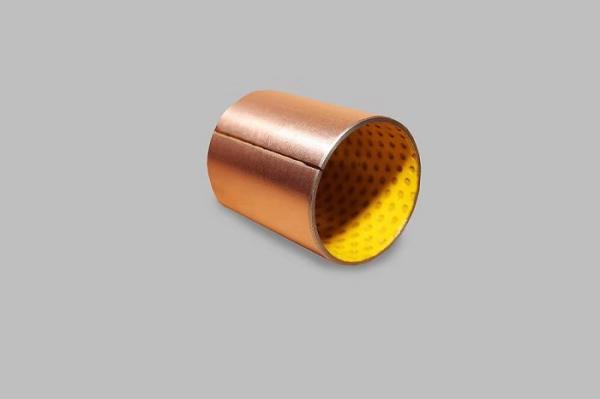

Porous Polymer Plain Bushings DIN European Standard PTFE Sleeve Bearings

1. Product Description

Porous Polymer Plain Bushings DIN European Standard PTFE Sleeve Bearings taking high-strength copper alloy as the base material, holes are distributed on the working face in proportion according to the working conditions and filled with the solid lubrication column,minute partidesof the PTFE layer and the sintered bronze material combine tocreate a solid lubricant film.

2. Specification

Load capacity Static load 250N/mm2 Friction coef μ 0.03~0.20
Dymamic load 140N/mm2 Working temperature -195 ℃~+280℃
Oscillating 60N/mm2 Themal conductivity 42W/mk
PV value limit Oil lubrication 22N/mm2.m/s Speed limit (in oil) 2.5m/s
Dry friction 1.8N/mm2.m/s Coefficient of linearexpansion 11×10-6/K

3. Application

Porous Polymer Plain Bushings DIN European Standard PTFE Sleeve Bearings are widely used in hydraulic cylinder,gear pump, motor etc.

4. Advantages

This type of boundary lubricated bearing is suitable for the low speed and heavy load, intermittent operation and swaying conditions wihich can not oil or not allowed to oil occasions;Simplify oil supply design, reduce maintenance and repair costs and time,it has good wear resistance, low friction coefficient, extend the service life of the product.
