Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable
Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable
Specifications
Brand Name :
WHB
Model Number :
DU
Certification :
ISO3547/9001
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
6000000pcs per month
Delivery Time :
7-15work days
Packaging Details :
Export carton, wooden case, wood pallet.
Keywords :
Straight Self Lubricating
Material :
carbon steel
Apply for :
air cylinder
Size :
Customizable
Feature :
easy installation
Advantage :
self-lubricating
Description

Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable

1. Product Description

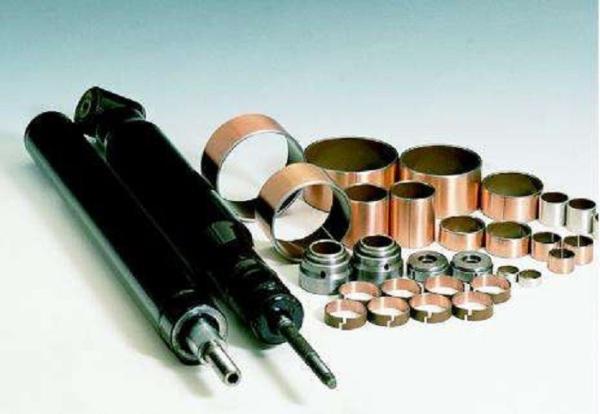

Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable consists of steel back,sintered porous bronze alloy and PTFE & polymer coating.It is lead free and has good pertormance in anti-wear,anti-fatigue,anti-punching. high bonding performance.With excellent tribological properties, this bushing maximizes the strength, dimensional stability, and other properties of the metal.WHB company will try to give customers the best quality,price and service!

2. Specification

Load capacity Static load 200
N/mm2		 PVvalue limit Oil lubrication 40
N/mm2.m/s
Dymamic load 140
N/mm2		 Dry friction 1.8
N/mm2.m/s
Oscillating 60
N/mm2		 Friction coef μ 0.02~0.30
Speed limit Oil lubrication 5m/s Working temperature -150℃~+280℃
Dry friction 2.5m/s Thermal conductivity 42 W/mk
Coefficient of linearexpansion 11
10 -6/K

3. Application

Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable are widely used in pump,oil cylinder ,air cylinder,robot etc.

4. Advantages

This type of self lubricating bearing has the characteristics of low noise and self-lubrication.Meanwhile it can protect the mating surface from wearing. Low friction coefficient and excellent wear resistance under dry conditions, good performance under high load, with excellent anti-dislocation, low friction coefficient, eliminate the "stick slip" phenomenon, the bushing in a wide range of operating temperature performance.
