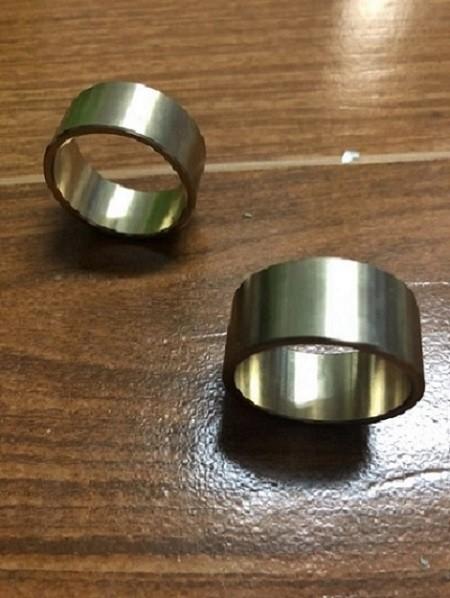

Oilless Bronze Groove Solid Lubricant Bearings For Injection Molding Light Weight
Oilless Bronze Groove Solid Lubricant Bearings For Injection Molding Light Weight
Specifications
Brand Name :
WHB
Model Number :
JDB
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
600000pcs per month
Delivery Time :
10-15 work days
Packaging Details :
Standard export wooden case,wood pallet.
Keywords :
Oilless Bronze
Material :
Copper
Apply for :
injection machine
Size :
Customizable
Feature :
light weight
Advantage :
size stability
Description

Oilless Bronze Groove Solid Lubricant Bearings For Injection Molding Light Weight​

1. Product Description

Oilless Bronze Groove Self Lubricating Bushing by adjusting high hardness brass casting process to further raise the bearings hardness,maximizing both its load bearing capacity and wear-resistant property.Note that if there are any foreign matters on the surface when assembling.Pressing should be carried out slowly when installing.Do not beat in the event of damaging the bushing or causing the distortion to the bushing.

2. Specification

Basic material CuZn25Al6Fe3Mn3 Friction Oil Lubrication 0.06μ
Density 8.7g/cm³

Dry Friction

 0.15μ
Heat-conducting Coefficient 46-63(w/m.k) Tensility ≥8%
Tensile Strength ≥200 N/mm2 Working Temperature Limits -40℃~+300℃
Anti-compact Tenacity ≥400-500 KJ/m3 Max Load Pressure 60 N/mm2
Hardness ≥275HB Max Linear Velocity 0.4 m/s
Flexibility Coefficient 80-110 KN/mm2 Max PV Value 0.8N/mm2.m/s


3. Application

Oilless Bronze Groove Self Lubricating Bushing are widely usded in injection-molding machines,wood-working machine,irrigation machinery etc.

4. Advantages

This series inlaid self-lubricating axle sleeve with high strength, wear resistance, free maintenance etc, WHB can be applied under try,high pressure,corrosive,water or other chenical environments when no oil can be introduced. It has successfully supporting several world famous manufacturers of injection molding machine, die-casting machine.
