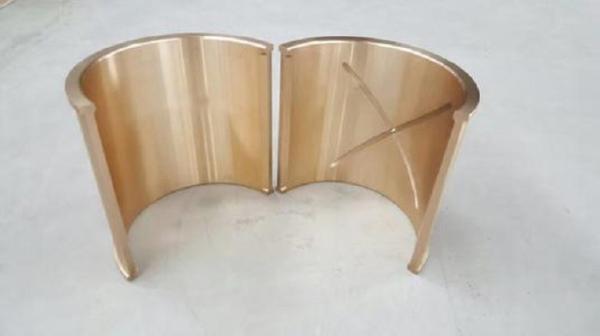

Customizable Half Moon Bearing , Sintered Bronze Bushing Low Friction Coefficient
Customizable Half Moon Bearing , Sintered Bronze Bushing Low Friction Coefficient
Customizable Half Moon Bearing , Sintered Bronze Bushing Low Friction Coefficient
Customizable Half Moon Bearing , Sintered Bronze Bushing Low Friction Coefficient
Specifications
Brand Name :
WHB
Model Number :
JFFB
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
800000pcs per month
Delivery Time :
15-20 work days
Packaging Details :
Export wooden case, wood pallet.
Keywords :
Self-lubricating Half Bearing Bush
Material :
bronze
Apply for :
electric generator
Size :
Customizable
Feature :
low friction
Advantage :
maintenance-free
Description

Self-lubricating Half Bearing Bush With Low Coefficient Of Friction Metric Size

1. Product Description

Self-lubricating Half Bearing Bush With Low Coefficient Of Friction Metric Size is a universal basic product, regardless of high pressure, low pressure, high temperature, low temperature, oil lubrication, oil free lubrication or water lubrication.They all apply.The matrix of the product is high-strength brass, which is twice as hard as the general copper cover.Wear resistance increased more than twice.It stable, reliable and noiseless work.

2. Specification

Basic material CuZn25Al6Fe3Mn4 Dynanic load 110N/mm²
Base hardness HB>210 Friction Coef <0.15
Temperature Max 300℃ Speed limit

dry 0.1m/s oil 10m/s

3. Application

Self-lubricating Half Bearing Bush With Low Coefficient Of Friction Metric Size are widely applied in various electric generator,high-voltage motor,gear reducer,industrial water pump etc.

4. Advantages

The oil groove on the friction surface of the copper tile is lubricated, which plays a role of "support" similar to the ball bearing and reduces the friction force of the shaft.Under the condition of liquid lubrication, the sliding surface is separated by lubricating oil without direct contact, and the friction loss and surface wear can be greatly reduced,with Low replacement cost.
