High Strength Solid Lubricant Bearings C86300 Manganese Bronze Groove Type
High Strength Solid Lubricant Bearings C86300 Manganese Bronze Groove Type
Specifications
Brand Name :
WHB
Model Number :
JDB
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
600000pcs per month
Delivery Time :
10-20 work days
Packaging Details :
Standard export wooden case,wood pallet.
Keywords :
High Strength
Material :
aluminium bronze
Apply for :
engineering machinery
Size :
Customizable
Feature :
good wear resistance
Advantage :
good load capacity
Description

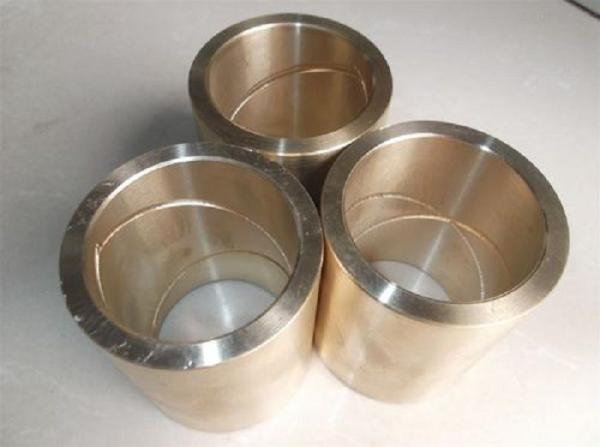

High Strength C86300 Manganese Bronze Grooves Bushings Standard

1. Product Description

High Strength C86300 Manganese Bronze Grooves Bushings Standard offer tecnically and economically favorable bearings solutions,also can offer different types of bronze alloys according to the required lif time,service etc.It can operate under very high loads and speeds.

2. Specification

Basic material ZCuZn25Al6Fe3Mn3 Friction Oil Lubrication 0.05μ
Density 8.0g/cm³

Dry Friction

 0.15μ
Heat-conducting Coefficient 46-63(w/m.k) Tensility ≥8%
Tensile Strength ≥600 N/mm2 Working Temperature Limits -40℃~+400℃
Anti-compact Tenacity ≥800 KJ/m3 Max Load Pressure 120 N/mm2
Hardness ≥250HB Max Linear Velocity 0.25m/s
Flexibility Coefficient 85-115 KN/mm2 Max PV Value 3.0N/mm2.m/s


3. Application

High Strength C86300 Manganese Bronze Grooves Bushings are widely usded in environmental protection machine, hydraulic machinery,chemical machinery etc.

4. Advantages

This type of solid lubricant bearings with high load capability, low weight and good corrosion esistance, to play the bearings of the due performance, the role of mechanical performance and maintenance-free.The oil free design,the cost of oil insallations, processing fees,assembly fees,the extra cos and time savings can significanly reduce manufacturing costs.
