Non Metallic Plastic Plain Bearings Long Operating Life High Hardness OEM Service Available
Non Metallic Plastic Plain Bearings Long Operating Life High Hardness OEM Service Available
Specifications
Brand Name :
WHB
Model Number :
EPB
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2500000psc per month
Delivery Time :
10-20 work days
Packaging Details :
Export carton, wooden case, wood pallet.
Keywords :
Polymer Bearing
Material :
engineering plastic
Apply for :
automobile
Size :
Customizable
Feature :
high hardness
Advantage :
long operating life
Description

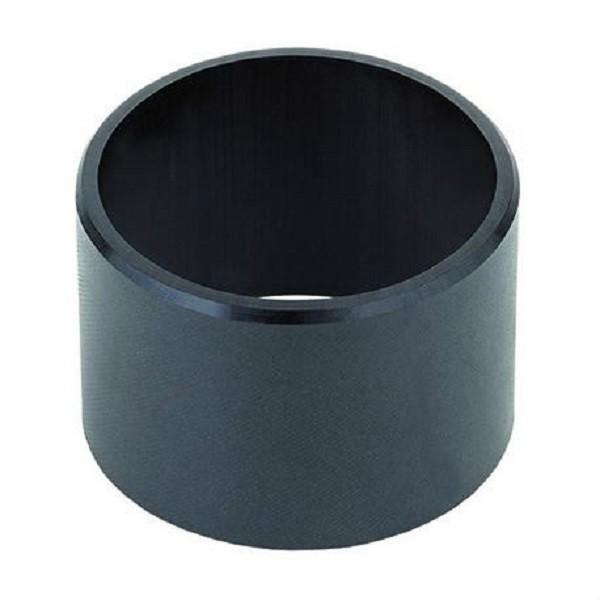

OEM EP IGUS Plastic Plain Bearings Non-Metallic Self-Lubricating Polymer Bearing

1. Product Description

OEM EP IGUS Plastic Plain Bearings Non-Metallic Self-Lubricating Polymer Bearing is a thermal mould character plastic processed by crystal engineering plastic as basic material with proper intensifier and lubricant. is injection moulded in a material that is very stable,has good thermal characteristics,and is self lubricated.

2. Specification

Velocity Max rotating velocity 0.8m/s PVvalue limit Oil lubrication 7
N/mm2.m/s
Max oscillating
velocity
 0.6m/s Dry friction 0.3
N/mm.m/s
Max linear velocity 2.5m/s Friction coef μ 0.05~0.20
Strength Tensile strength 75MPa Working temperature -40℃~+120℃
Compressive strength 60MPa Thermal conductivity 0.2 W/mk
Coefficient of linearexpansion

10K-1*10-5

 Density 1.46g/cm³

3. Application

OEM EP IGUS Plastic Plain Bearings Non-Metallic Self-Lubricating Polymer Bearing are widely applied in fitness equipment,packing machinery ,medical appliance etc.

4. Advantages

Our products can be manufactured in many different types of plastic material to suit various applications and has a good combination of properties, including low moisture absorption, good dimensional stability, and low friction,the composite solid special grease allows EP series plastic bearings with excellent self-lubricating properties and wear resistance.
