Standard Size Boundary Lubricated Bearing Good Load Capacity Short Design Time
Standard Size Boundary Lubricated Bearing Good Load Capacity Short Design Time
Specifications
Brand Name :
WHB
Model Number :
DX
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5000000pcs per month
Delivery Time :
10-15 work days
Packaging Details :
Export carton, wooden case, wood pallet.
Keywords :
POM Bushes
Material :
carbon steel
Apply for :
engineering machinery
Size :
Customizable
Feature :
short design time
Advantage :
good load capacity
Description

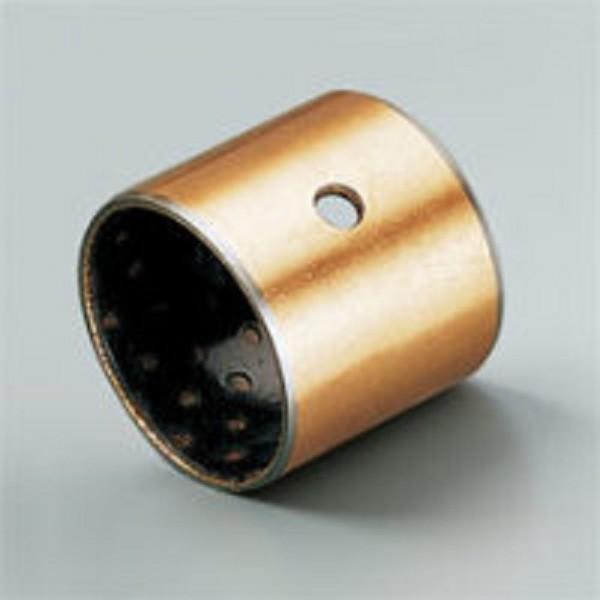

POM Bushes Self Lubricating Plain Bearing Split Type Standard Size​

1. Product Description

POM Bushes Self Lubricating Plain Bearing Split Type Standard Size is based on a composite material with 3 firmly bonded layers: steel as a base, spherical sintered bronze powder as an intermediate layer and modified POM as a coating layer.It is especially suitable for rotating and swaying motion under heavy load and low speed, as well as opening and closing under load, which is not easy to form fluid lubrication.

2. Specification

Load capacity Static load 250N/mm2 Friction coef μ 0.05~0.20
Dymamic load 140N/mm2 Working temperature -40 ℃~+130℃
Oscillating 60N/mm2 Themal conductivity 13W/mk
PV value limit Oil lubrication 22N/mm2.m/s Speed limit (in oil) 2m/s
Dry friction 2.5N/mm2.m/s Coefficient of linearexpansion 11×10-6/K

3. Application

POM Bushes Self Lubricating Plain Bearing Split Type Standard Size is widely used in mining machinery,metallurgical machinery,rolling steel machinery etc.

4. Advantages

It is especially suitable for rotating and swaying motion under heavy load and low speed, as well as opening and closing under load, which is not easy to form fluid lubrication.Under the condition of boundary lubrication, it can be used for a long time without refueling and maintenance.The plastic layer on its surface can leave a certain amount of margin in the shaft sleeve forming process, and can be processed by itself after pressing into the hole, so as to achieve a better assembly size.
