Lead Free Half Shell Bearings , Good Load Capacity POM Composite Bushings
Lead Free Half Shell Bearings , Good Load Capacity POM Composite Bushings
Lead Free Half Shell Bearings , Good Load Capacity POM Composite Bushings
Lead Free Half Shell Bearings , Good Load Capacity POM Composite Bushings
Specifications
Brand Name :
WHB
Model Number :
DX
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5000000pcs per month
Delivery Time :
10-15 work days
Packaging Details :
Export carton, wooden case, wood pallet.
Keywords :
Bearing Bush Sheet Material
Material :
carbon steel
Apply for :
tractors
Size :
Customizable
Feature :
lead free
Advantage :
good load capacity
Description

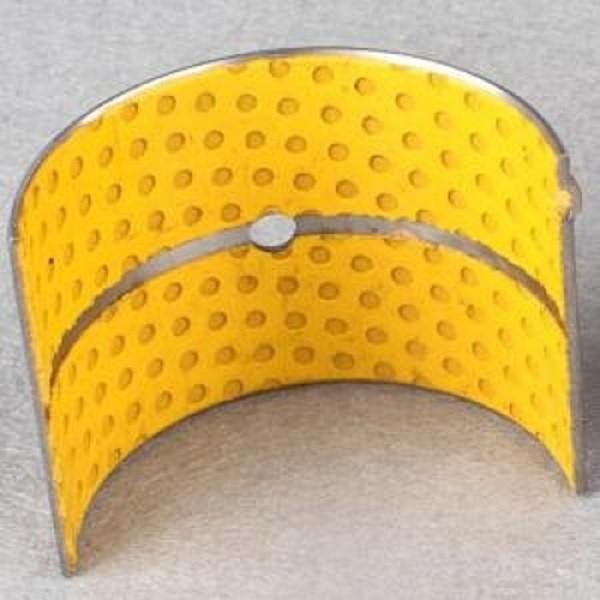

Self Lubricating Half Plain Bearing Bush Sheet Material POM Composite Bushings

1. Product Description

Self Lubricating Half Plain Bearing Bush Sheet Material POM Composite Bushings which is the part in contact between sliding bearing and shaft journal, is a shingle-shaped semi-cylinder, which is very smooth. It is generally made of bronze, friction reducing alloy, low carbon steel,PTFE/POM and other wear-resistant materials.Half plain bearing bush which present excellent seizure resistance with the best load resistance,can be used in harsh environment.

2. Specification

Load capacity Static load 250N/mm2 Friction coef μ 0.05~0.25
Dymamic load 140N/mm2 Working temperature -40 ℃~+130℃
Oscillating 60N/mm2 Themal conductivity 13W/mk
PV value limit Oil lubrication 22N/mm2.m/s Speed limit (in oil) 2.5m/s
Dry friction 2.8N/mm2.m/s Coefficient of linearexpansion 11×10-6/K

3. Application

Self Lubricating Half Plain Bearing Bush Sheet Material POM Composite Bushings are important parts to support a connecting rod and a crankshaft to rotate in an engine for automobiles, motorcycles, construction machinery or ship.

4. Advantages

It has the characteristics of light weight, insulation, friction reduction, wear resistance, self-lubrication, corrosion resistance, simple molding process, high production efficiency.Good in load resistance, impact resistance, and heat resistance. It can be used for places where the speed and the load would be a problem, Half plain bearing bush and sheet material which present excellent seizure resistance with the best load resistance.
