Specifications
Brand Name :
WHB
Model Number :
DX
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000000pcs per month
Delivery Time :
10-15 work days
Packaging Details :
Export carton, wooden case, wood pallet.
Keywords :
Red/Blue Polymer
Material :
carbon steel
Apply for :
mining machinery
Size :
Customizable
Feature :
no need oil
Advantage :
anti-corrosion
Description

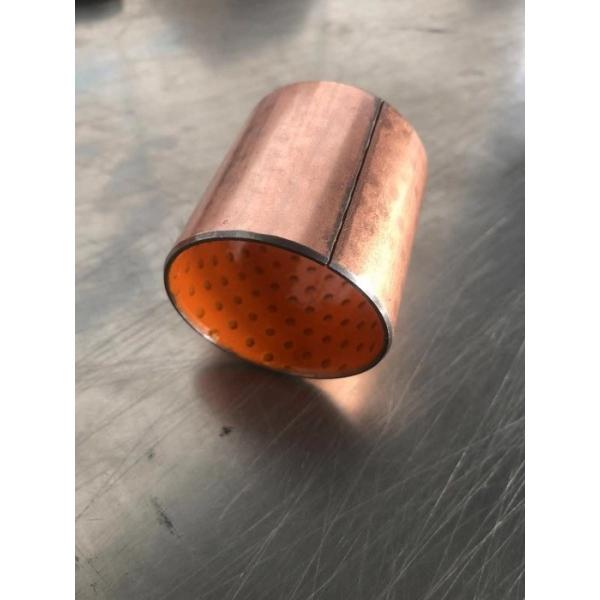

Steel Bronze Red/Blue Polymer Plain Bearings Split Bushes Tin/Copper Plated

1. Product Description

Steel Bronze Red Polymer Plain Bearings Split Bushes Tin/Copper Plated is based on a composite material with 3 firmly bonded layers as backing,sintered porous bronze powder as interlayer and modified POM as lining layer, it is similar with DS bushing in foreign countries,it can work even if it is without lubricant or under atrace of oil.

2. Specification

Load capacity Static load 250N/mm2 Friction coef μ 0.04~0.20
Dymamic load 140N/mm2 Working temperature -40 ℃~+130℃
Oscillating 70N/mm2 Themal conductivity 42W/mk
PV value limit Oil lubrication 25N/mm2.m/s Speed limit (in oil) 2.5m/s
Dry friction 1.8N/mm2.m/s Coefficient of linearexpansion 11×10-6/K

3. Application

Steel Bronze Red Polymer Plain Bearings Split Bushes Tin/Copper Plated are widely used in textile machine,mining machinery,hydraulic machinery etc.

4. Advantages

It is of low fritction,anti-corrosion and is of long life. It can be used in machines under oscillating motion and in open field or in corrosive environment such as windlass,buldozer, tower eranes and printing or dyeing machines for textiles industry.
