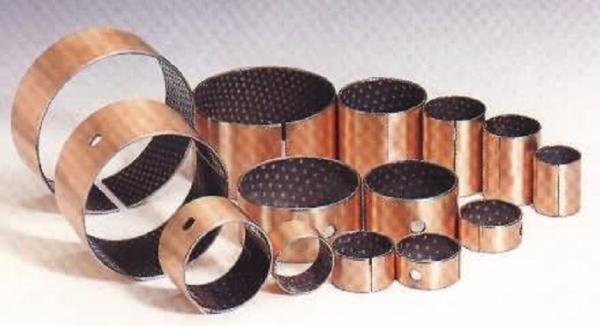

Self Lubricating Composite Sleeve Bearings , Carbon Steel Bearings Wear Resistant
Self Lubricating Composite Sleeve Bearings , Carbon Steel Bearings Wear Resistant
Specifications
Brand Name :
WHB
Model Number :
DX
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
4500000pcs per month
Delivery Time :
7-10 work days
Packaging Details :
Export carton, wooden case, wood pallet.
Keywords :
Self-Lubricating Multilayer
Material :
carbon steel
Apply for :
printing machinery
Size :
Customizable
Feature :
non-pollution
Advantage :
good wear resistance
Description

Self-Lubricating Multilayer Composite Bushing Carbon Steel Copper Powder POM

1. Product Description

Self-Lubricating Multilayer Composite Bushing Carbon Steel Copper Powder POM is backed with copper-plated steel with porous bronze sintered on the steel and polymers (POM+Pb) imbedded into the bores of the bronze. By combining the metals and the polymers together, the products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication.

2. Specification

Load capacity Static load 250N/mm2 Friction coef μ 0.05~0.25
Dymamic load 140N/mm2 Working temperature -40 ℃~+130℃
Oscillating 60N/mm2 Themal conductivity 4W/mk
PV value limit Oil lubrication 22N/mm2.m/s Speed limit (in oil) 2.0m/s
Dry friction 2.8N/mm2.m/s Coefficient of linearexpansion 11×10-6/K

3. Application

Self-Lubricating Multilayer Composite Bushing Carbon Steel Copper Powder POM is widely used in printing machinery ,tobacco machinery,packing machinery etc.

4. Advantages

The products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, the steel back is plated with a erosion-prevention layer,much more fit for which are not allowed to use the lead and difficulty forming the oil film or need lubrication parts.

Product tags

self lubricating sleeve bearings

,

sleeve bearing lubrication

,

self lubricating bronze bearings
