Bronze Alloy Sintered Bimetal Bearing Bushes Convenient Installation High Hardness
Bronze Alloy Sintered Bimetal Bearing Bushes Convenient Installation High Hardness
Bronze Alloy Sintered Bimetal Bearing Bushes Convenient Installation High Hardness
Bronze Alloy Sintered Bimetal Bearing Bushes Convenient Installation High Hardness
Bronze Alloy Sintered Bimetal Bearing Bushes Convenient Installation High Hardness
Bronze Alloy Sintered Bimetal Bearing Bushes Convenient Installation High Hardness
Specifications
Brand Name :
WHB
Model Number :
JF
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
300000pcs per month
Delivery Time :
10-15 work days
Packaging Details :
Export carton, wooden case,wood pallet.
Material :
carbon steel
Application :
engine
Bush types :
bimetal
Standard :
DIN1494
Features :
Long Life
Color :
Optional
Description

Bronze Alloy Sintered Bimetal Bearing Bushes Convenient Installation High Hardness

1. Product Description

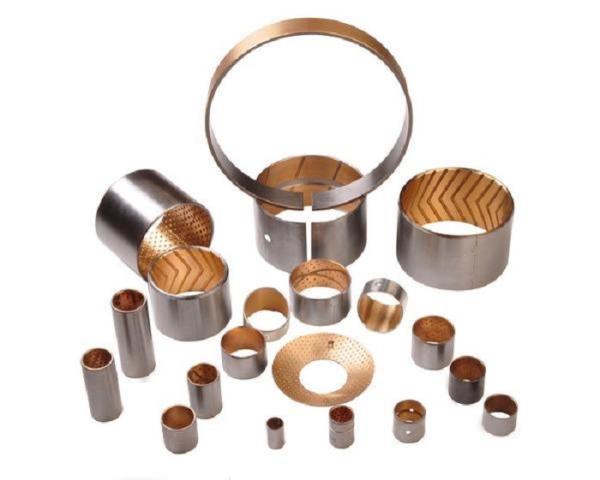

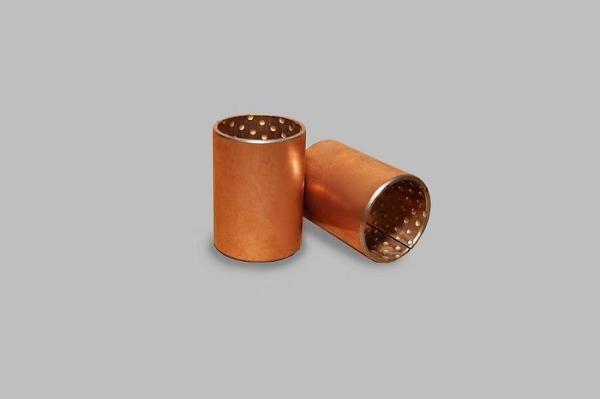

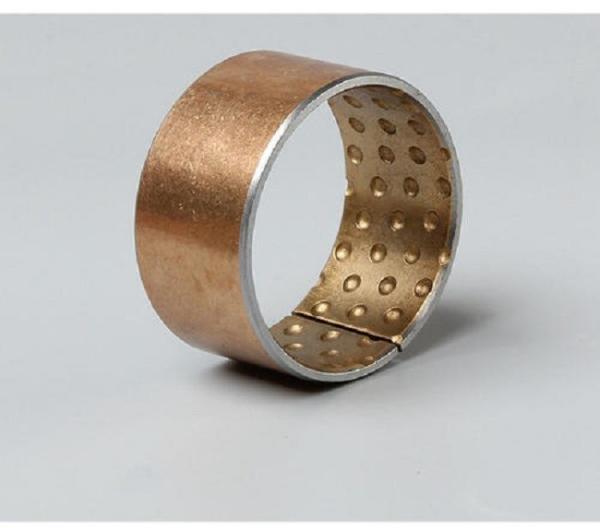

Bimetal Bushing is made of high quality carbon steel sintered with CuPb10Sn10 or CuSn6Zn6Pb3 etc. as a lining layer,to effectively decrease abrasion,its alloy surface can be machined with oil grooves for easier oil storage.When necessary, anerosion protection coating can be plated on te steel back.

2. Specification

PV value limit Grease lubrication 2.8 N/
mm2·m/s		 Mating Axis Hardness ≥ 53 HRC
Oil lubrication 10 N/
mm2·m/s		 Roughness Ra=
0.16~0.63
Linear Velocity Dry Friction 2.5 m/s Max Working
Temperature		 Grease Lubrication 160℃
Grease Lubrication 5 m/s Oil Lubrication 260℃
Anti-tensile Strength 185
N/mm 2		 Friction Coefficient 0.05~0.15
Alloy Hardness

HB

70~100

 Heat-conducting Coefficient 47 W/(m·k)
Heat-expansion Coefficient 18·10
-6k -1		 Load capacity 150N/mm2

3. Application

Bronze Alloy Sintered Bimetal Bearing Bushes Convenient Installation High Hardness application including balance suspensions of heavy-duty trucks, track roller of bulldozers, auto chassis etc. in common use,it is can made to thrust washer and bushes on connecting rod leel of gas engine etc.

4. Advantages

The bimetal bearing bushes are very wear-resisting and suits most for middle speed and high impact conditions. It's suitable for rotatory oscillating,reciprocating movements on the conditions of high load,low speed.with low friction,well wear resistance,long lifetime and better prevent from holding-on.The item are widely applied in various machinery.
