Plastic Machinery Use Thrust Washer Bearing Easy Installation Copper Material
Plastic Machinery Use Thrust Washer Bearing Easy Installation Copper Material
Plastic Machinery Use Thrust Washer Bearing Easy Installation Copper Material
Plastic Machinery Use Thrust Washer Bearing Easy Installation Copper Material
Specifications
Brand Name :
WHB
Model Number :
JTW
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
400000pcs per month
Delivery Time :
10-20 work days
Packaging Details :
Export carton, wooden case.
Keywords :
WHB-500W Thrust Washers
Material :
copper
Apply for :
plastic machinery
Size :
Customizable
Feature :
easy installation
Advantage :
good wear resistance
Description

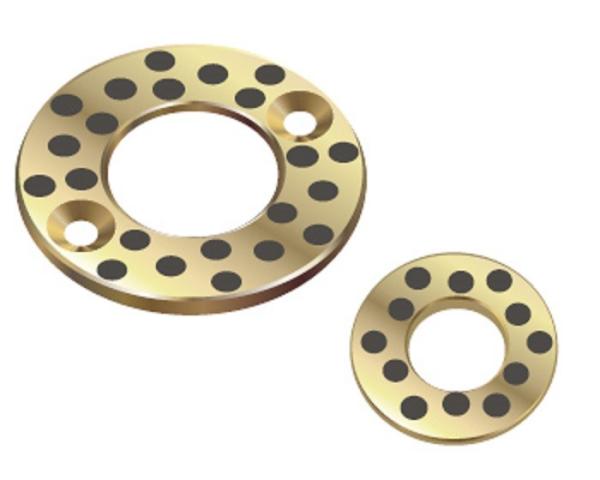

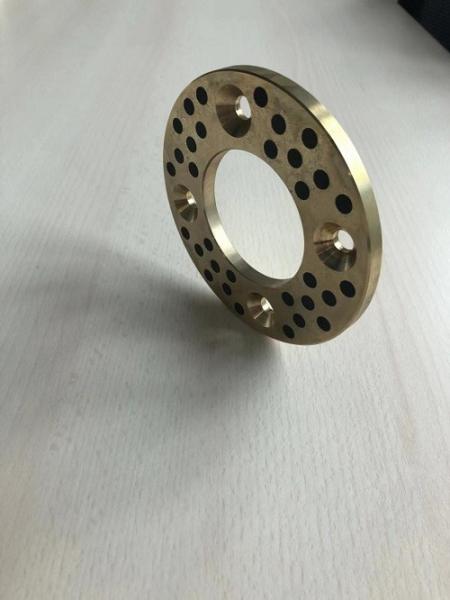

WHB-500W Standard Series Of Thrust Washers With Bolt Hole Embed Solid Lubricant

1. Product Description

WHB-500W Standard Series Of Thrust Washers With Bolt Hole Embed Solid Lubricant combined with the wear resistance of copper alloy (ZCuZn24Al6) and the self-lubricating property of solid lubricant, so that it does not need refueling maintenance during use.Various types of copper alloys can be supplied according to the operating conditions,non-standard requirements can be customized.

2. Specification

sic material ZCuZn24Al6 Friction Oil Lubrication 0.03μ
Density 8.0g/cm³ Dry Friction 0.16 μ
Heat-conducting Coefficient 38-55 W(/m.k) Tensility ≥ 6 %
Tensile Strength ≥750 N/mm2 Working Temperature Limits -40℃~+300℃
Anti-compact Tenacity ≥400-500 KJ/m3 Max Load Pressure 100 N/mm2
Hardness ≥210 HB Max Linear Velocity 0.25m/s
Flexibility Coefficient 120-140 KN/mm2 Max PV Value 200 N/mm2/min

3. Application

WHB-500W Standard Series Of Thrust Washers With Bolt Hole Embed Solid Lubricant are widely applied in automobile production line,fluid machinery, plastic machinery etc.

4. Advantages

Our WHB-500W series thrust washers with excellent resistance against chemical attacks and low friction,also with lowest in friction and good of waer lubrication. Suite for all kinds of harsh working conditions.Complete self-lubrication, no oil or grease required. Maintenance, replacement, and end-item downtime cost reduced due to the exceptional service life compared to similar self-lubricating products.

Product tags

bearing bronze thrust washer

,

stainless steel conveyor roller

,

stainless steel roller conveyor
