Wear Resistant Oilless Wear Plate For Hydraulic Machinery WHB500SW Standard
Wear Resistant Oilless Wear Plate For Hydraulic Machinery WHB500SW Standard
Specifications
Brand Name :
WHB
Model Number :
JSP
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
300000pcs per month
Delivery Time :
15-30 work days
Packaging Details :
Standard export wooden case, wood pallet.
Keywords :
Standard Oilless Wear Plate
Material :
bronze
Apply for :
hydraulic machinery
Size :
Customizable
Feature :
self-lubricating
Advantage :
good wear resistance
Description

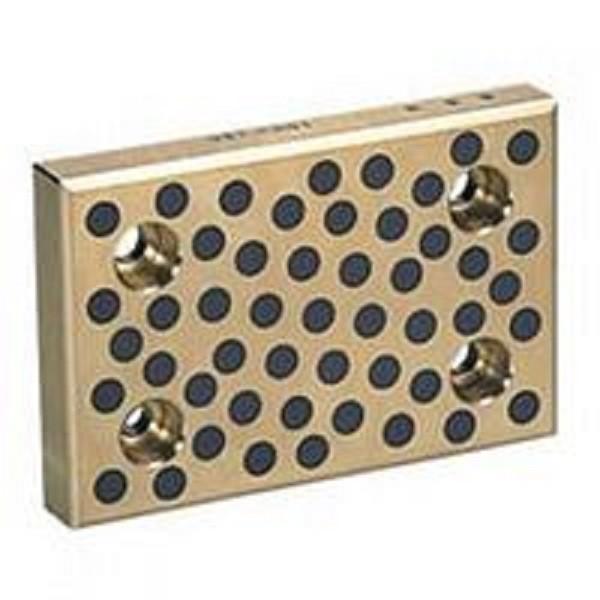

WHB500SW Standard Oilless Wear Plate Fill Graphite With Good Wear Resistance

1. Product Description

WHB500SW Standard Oilless Wear Plate Fill Graphite With Good Wear Resistance based on brass, this product combines the wear resistance of copper alloy (ZCuZn24Al6) and the self-lubricating property of solid lubricant, it can process all kinds of oil groove and oil hole and inset solid lubricant on the friction surface, at the same time, it can adapt to different environmental conditions so that it does not need refueling and maintenance in the process of use.Products are widely used in high - load, intermittent or reciprocating motion, such as steam - car production line, turbine etc.

2. Specification

Basic material ZCuZn24Al6 Dynanic load 100N/mm²
Base hardness HB>230 Friction Coef <0.16
Temperature Max 300℃ Speed limit

dry 0.4m/s oil 5m/s

3. Application

WHB500SW Standard Oilless Wear Plate Fill Graphite With Good Wear Resistance are widely used in plastic machinery, Automobile production line, water turbine,Reservoir work etc.

4. Advantages

Our oilless wear plate breaks through the general bearing lubrication by oil film limitations.In the process of use, through the friction heat to make the solid lubrication and shaft friction, the formation of oil, powder co-lubrication excellent conditions, not only protect the shaft from wear, and make the solid lubrication characteristics eternal.Its hardness is higher than average copper sleeve one times, wear-resisting property is also one times.
