Anti Abrasion Oilless Bearing For Agriculture Machinery Extremely High Load Susttainability
Anti Abrasion Oilless Bearing For Agriculture Machinery Extremely High Load Susttainability
Specifications
Brand Name :
WHB
Model Number :
JDB
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
350000pcs per month
Delivery Time :
10-20 work days
Packaging Details :
Export carton, wooden case, wood pallet
Keywords :
Bronze Oilless Bush
Material :
bronze
Apply for :
agriculture machinery
Size :
Customizable
Feature :
no need oil
Advantage :
good of water lubrication
Description

Bronze Oilless Bush with Lubricating Specifications Dimensions Make to Order

1. Product Description

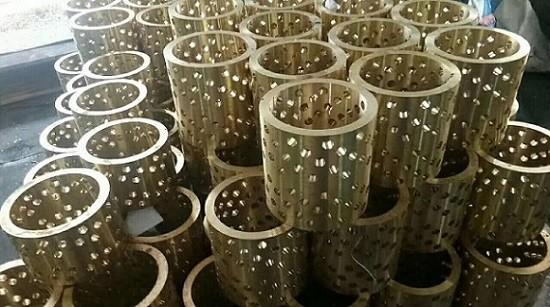

Bronze Oilless Bush with Lubricating Specifications Dimensions Make to Order is rolled into shapeand oil holes specially integrated into the inner surface to reduce the wearing and prolong the service hours. Besides,it has excellent anti-corrosion functions.Extremely high load susttainability,edpecially suitable for coarse abrasion surfaces.

2. Specification

Basic material CuSn6Zn6Pb3 Friction Oil Lubrication 0.05μ
Density 8g/cm³ Dry Friction 0.15 μ
Heat-conducting Coefficient 30~60(w/m.k) Tensility ≥6%
Tensile Strength ≥800 N/mm2 Working Temperature Limits -40~+350℃
Anti-impact Tenacity ≥400-500 KJ/m3 Max Load Pressure 100 N/mm2
Hardness ≥90HB Max Linear Velocity 0.5 m/s
Flexibility Coefficient 110-150 KN/mm2 Max PV Value 2N/mm2.m/s

3. Application

Bronze Oilless Bush with Lubricating Specifications Dimensions Make to Order are widely used in agriculture machinery, mining machinery,port machinery etc.

4. Advantages

This series bushing doesn't take up too large assembly space.Specially formulated high-density bronze alloy bands are used for the building of the bushing,which compared with traditional bushings,is featured in the high density,no shrinkage blowholes, high load sustainability and anti-wearing and anti-fatigue.
