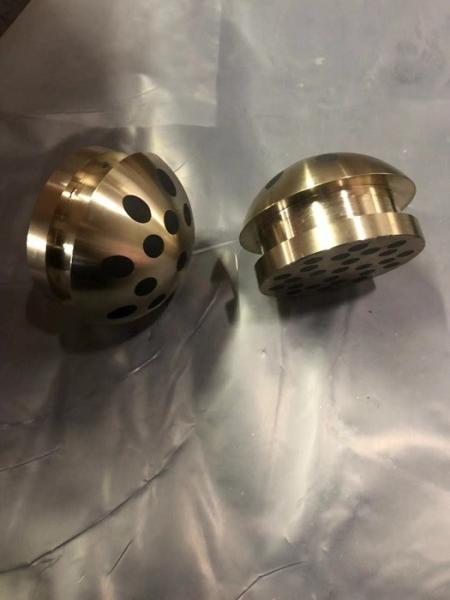

Cast Bronze Solid Lubricant Bearings CuZn25Al6Fe3Mn3 Non-standard With Good Lubrication Effect
Cast Bronze Solid Lubricant Bearings CuZn25Al6Fe3Mn3 Non-standard With Good Lubrication Effect
Cast Bronze Solid Lubricant Bearings CuZn25Al6Fe3Mn3 Non-standard With Good Lubrication Effect
Cast Bronze Solid Lubricant Bearings CuZn25Al6Fe3Mn3 Non-standard With Good Lubrication Effect
Cast Bronze Solid Lubricant Bearings CuZn25Al6Fe3Mn3 Non-standard With Good Lubrication Effect
Cast Bronze Solid Lubricant Bearings CuZn25Al6Fe3Mn3 Non-standard With Good Lubrication Effect
Specifications
Brand Name :
WHB
Model Number :
JDB
Certification :
ISO3547/ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
300000pcs per month
Delivery Time :
15-20 work days
Packaging Details :
Standard export carton,wooden case,wood pallet.
Keywords :
Bronze Bearing
Material :
Brass
Apply for :
engineering machinery
Size :
Customizable
Feature :
oil-free lubrication
Advantage :
high temperature
Description

Cast Bronze Solid Lubricant Bearings CuZn25Al6Fe3Mn3 Non-standard With Good Lubrication Effect

1. Product Description

Cast Bronze Solid lubricant Bearings CuZn25Al6Fe3Mn3 non-standard is embedded with graphite oil as solid lubricant, the bearing breaks through the limitation of the opil film lubrication,it design the solid-lubricant-inlaid bushing into alt kinds of shapes in order to meet various needs in special places,use this bushing can reduce the costs of the machinery mending and the oil in wide range.

2. Specification

Basic material CuZn25AL6Fe3Mn3 Friction Oil Lubrication 0.02μ
Density 8.4g/cm³ Dry Friction 0.15 μ
Heat-conducting Coefficient 35~65(w/m.k) Tensility ≥8 %
Tensile Strength ≥860 N/mm2 Working Temperature Limits -30℃~+360℃
Anti-compact Tenacity ≥400-500 KJ/m3 Max Load Pressure 160 N/mm2
Hardness ≥250HB Max Linear Velocity 0.70 m/s
Flexibility Coefficient 100-150 KN/mm2 Max PV Value 1.90N/mm2.m/s


3. Application

Cast Bronze Solid lubricant Bearings CuZn25Al6Fe3Mn3 non-standard are widely used in building machinery ,mining machinery, metallurgical machiner etc.

4. Advantages

This type of cast bronze solid lubricant bearings have long operating life ane the brass backing has pretty good anti-erosion ability in air, fresh water and seawater, use special graphite that has good self-lubricant properties as lubrican to make out the self-lubricant so that the bushing has included all of their advantages. It can still bring the superior properties into play even under high load and low rotating speed.
