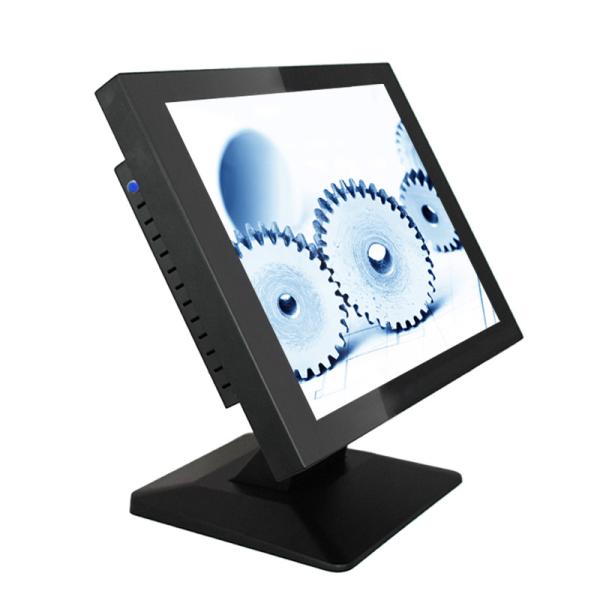

Mini Integrated IP65 17.3 Inch All In One PC Touch Screen
Mini Integrated IP65 17.3 Inch All In One PC Touch Screen
Mini Integrated IP65 17.3 Inch All In One PC Touch Screen
Mini Integrated IP65 17.3 Inch All In One PC Touch Screen
Specifications
Brand Name :
KER
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Brand :
KER
Size :
17.3''
Material :
Aluminum Alloy
Color :
Black / Silver
Certificate :
CE
Language :
multi language
Warranty :
1 year
Avalability of customization :
YES
Description

17.3'' Panel Pc All In One Touch Screen Pc

Mini Integrated Computer Kiosk

INTRODUCTION

Industrial Personal Computer-IPC (Industrial Control Computer-IPC) is a kind of tool that uses bus structure to detect and control production process, mechanical and electrical equipment and process equipment. Industrial computer has important computer attributes and characteristics, such as computer CPU, hard disk, memory, peripherals and interfaces, as well as operating system, control network and protocols, computing power, friendly man-machine interface. The products and technologies of industrial control industry are very special. They belong to intermediate products and provide reliable, embedded and intelligent industrial computers for other industries.


FEATURES

1) Intel Celeron J1900 quad core 2.0GHz(Intel core i5 4210U dual core 2.6GHz is optional)

2) 2*COM, 1*VGA, 1*HD, 1*RJ45LAN, 2*USB3.0, 2*USB2.0

3) 64MB SMT Flash ROM, support wake on lan

4) Support 1*MSATA, 1*2.5''SSD/HDD

5) 1*RTL8111F 1000M lan, support wake on lan

6) 12V DC-IN power adapter(DC9~36V optional);

7) support 1*SODIMM DDR3L, max 8G;

8) Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal,

Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance

Parking Pay Station, Channel System, Medical electronic etc .

SPECIFICATION

General
info		 Item No. KER
Material Aluminum Alloy
Color Black / Silver
IP rating IP65, indoor & outdoor complied
Operation System WIN 7/8/10/XP LINUX
Weight 4.3 KG
Delivery time 1-15 days depend on order quantity
Certificate CE
Warranty 1 year
Avalability of customization YES
Mainboard
info		 CPU Intel Celeron J1900 2GHz Quad-cores
Hard disk 32G SSD
Memory 2G DDR3
Audio Integrated audio chip
Network Integrated gigabit network card
WIFI Inner
Graphics Integrated
System WIN 7/8/10/XP LINUX
Speaker Inner
Screen
info		 Screen size 17.3 inches
Screen No. KER
Resolution 1920*1080
Proportion 16:9
Gray-scale response time 5ms
Panel Type Industrial Control A style TFT
Point distance 0.264mm
Contrast 1000:1
Backlight type LED, lifespan≥50000h
Display color 16.7M
Visual angle 160 deg / 160 deg
Brightness 400cd/m2
Touch type Default Capacitive
(resistive and infrared optional)
Touches cycles ≥ 50 million times
Interface
info		 USB USB2.0*3+USB3.0*1
Expansion COM*2
Default protocol RS232
WIFI 1 PC
Power Supply DC12V *1 PC
HDMI 1 PC
VGA 1 PC
Network card RJ-45*1 PC
Audio Input *1 PC + output *1PC
Other
info		 Power Supply 12V 5A External
Tablet Input voltage 12V
Anti-static contact 4KV, air 8KV
Monitor Power ≤60W
Anti-vibration GB2423 standard in China
Anti-interference EMC & EMI anti-electromagnetic interference
Dustproof and waterproof front panel IP65 dustproof and waterproof
Installation method Default Embedded
(desktop, wall-mounted, cantilever optional)
Ambient humidity 5~85%, non-condensable
Working temperature -20°C~70°C
Language menu Chinese, English, German, French, Korean,
Spanish, Italian, Russian,custumed

Mini Integrated IP65 17.3 Inch All In One PC Touch Screen

Mini Integrated IP65 17.3 Inch All In One PC Touch Screen

PACKAGE

Mini Integrated IP65 17.3 Inch All In One PC Touch Screen

CONTACT

Carlota Chen

Email: admin@kertouch.com

Number: +86 18122345571
