Specifications
Brand Name :
Huihao
Model Number :
Insulation anchor pins
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union, paypal
Supply Ability :
10,0000 pcs per week
Delivery Time :
7 work days
Packaging Details :
1. length less than 65mm, 1000 pcs per carton, 64 cartons per pallet. 2.length less than 120mm, 500pcs per carton, 64 cartons per pallet. 3. others to be your requirements.
Product name :
Ducting Accessories
Material :
stainless steel , galvanized steel, aluminum
Application :
fixing rock wool,Sound Absorbing Fabrics
Pin dia :
2.2,2.5,2.7mm, 3.0mm
Base size :
2''X2' in common, or as request
Sample :
Available
Description

Ducting Accessories Insulation anchor pins and Hardware installers insulation material


Introduction of insulation anchors pins

Huihao is a insulation fasteners/insulation anchors manufacturing company, we produce all kinds of insulation pins and washers. Our products

includes CD weld pins, Cup head weld pins, perforated base pins, self adhesive pins, Lacing Anchors, Quilting pins, all kinds of self locking

washers, Dome caps


Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

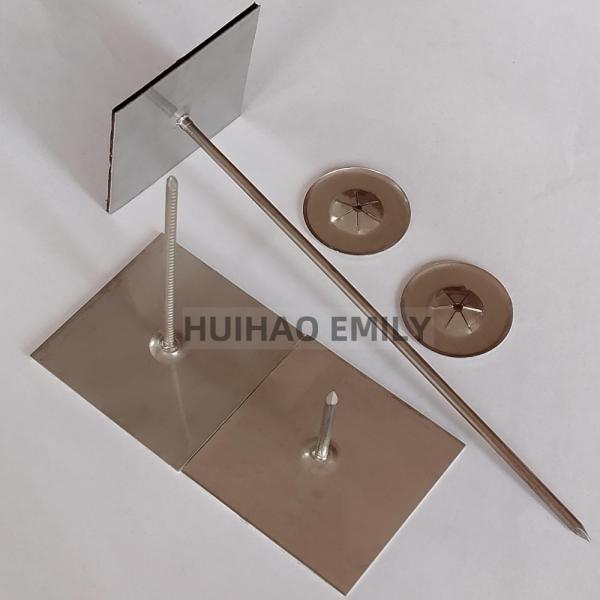

1. Detail of the perforated base insulation anchor pins and seld adhesive insulation fixing pins

photos of insulation anchor pins

specification of insulation anchor pins
Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

material

pin dia

base size

length

Gal steel ,ss , alu

12ga ( 0.106 " )

2''X2''

1/2"

Gal steel ,ss , alu

12ga ( 0.106 " )

2''X2''

1"

Gal steel ,ss , alu

12ga ( 0.106 " )

2''X2''

1-5/8"

Gal steel ,ss , alu

12ga ( 0.106 " )

2''X2''

2"

Gal steel ,ss , alu

12ga ( 0.106 " )

2''X2''

3-1/2"

Gal steel ,ss , alu

12ga ( 0.106 " )

2''X2''

4 1/2"

Gal steel ,ss , alu

12ga ( 0.106 " )

2''X2''

5 1/2"

Gal steel ,ss , alu

12ga ( 0.106 " )

2''X2''

6"

Gal steel ,ss , alu

12ga ( 0.106 " )

2''X2''

8"
Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

D C L
14 ga (.080) 7/8" 2-1/2"
14 ga (.080) 7/8" 4-1/2"
12 ga (.106) 7/8" 2-1/2"
12 ga (.106) 7/8" 4-1/2"
Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

stick pin diameter

base plate size

insulatiion pin length

10ga,12ga ,14ga

2 square w / tape

1

10ga,12ga ,14ga

2 square w / tape

1 - 5 / 8 "

10ga,12ga ,14ga

2 square w / tape

2

10ga,12ga ,14ga

2 square w / tape

2 - 1 / 2"

10ga,12ga ,14ga

2 square w / tape

3 - 1 / 2

10ga,12ga ,14ga

2 square w / tape

4 - 1 / 2"

10ga,12ga ,14ga

2 square w / tape

5 - 1 / 2

10ga,12ga ,14ga

2 square w / tape

6 - 1 / 2"

10ga,12ga ,14ga

2 square w / tape

8 "
Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

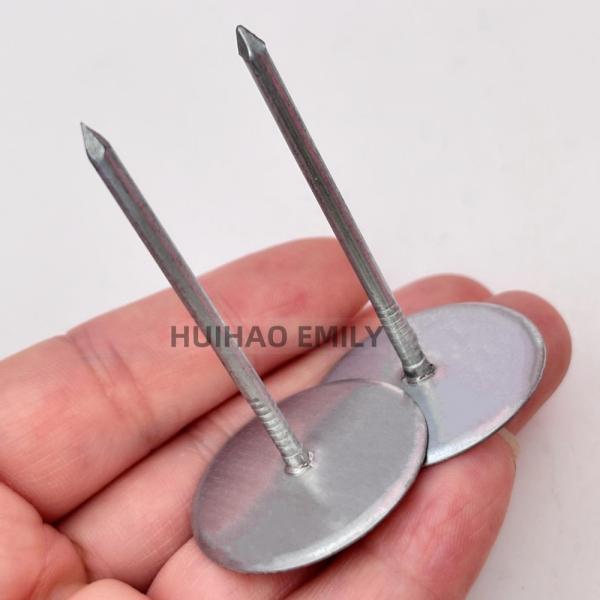

application: Stainless Steel 1" Cup Head Econo Point Weld Pins Use With All FG, RH, PBF, MF, CDMF Pinspotters.

terms

Econo Point Weld Pins diameter

cupped washer size

Econo Point Weld Pins Length

HH-12

2.7mm

1-1/2

Stnd up to 6

HH-10

3.4mm

1-1/2

Special Order

ZG-14

2.0mm

1-3/16

Up to 2-1/2

ZG-12

2.7mm

1-3/16

Stnd up to 6


2.Common size and usages of Ducting Accessories Insulation anchor pins and Hardware :

1 - 5/8": Used for 1-1/2" .75# Fiberglass Duct Wrap
2 - 1/2": Used for 2" Fiberglass Rigid Board / Foam Board
4 - 1/2": Used for 4" Fiberglass Rigid Board / R-13
6 - 1/2": Used for R-19 Fiberglass Batt Insulation
9 - 1/2": Used for R-30 Fiberglass Batt Insulation
12 - 1/2": Used for R-38 Fiberglass Batt Insulation

3.Advantages of the Ducting Accessories Insulation anchor Pins and Hardware


· Suitable for all kinds of wall
· High pull-off strength for a higher security of the system
· Low thermal conduction addition value to avoid thermal bridge
· Galvanized layer on the steel nail to protect the nail from alkali

Welcome to inquiry and sample could be sent to your before ordered.
