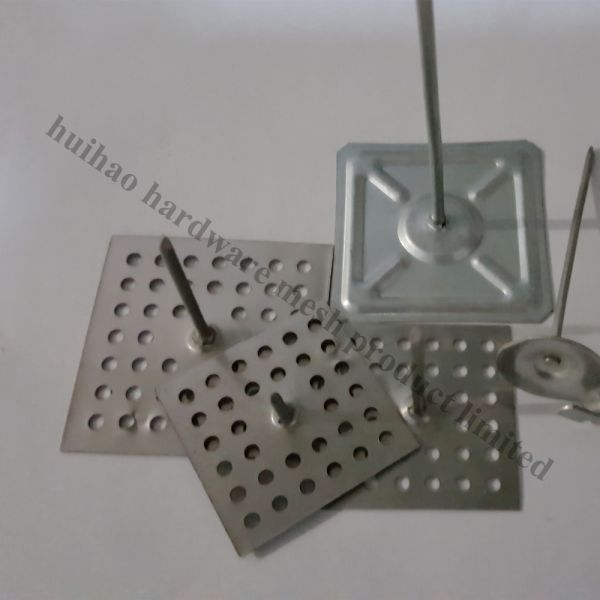

Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm
Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm
Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm
Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm
Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm
Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm
Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm
Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm
Specifications
Brand Name :
HUIHAO
Model Number :
insulation anchor pins
Certification :
ISO
Place of Origin :
China
MOQ :
3000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300000 pcs per month
Delivery Time :
7 work days
Packaging Details :
500pcs per carton, 48 cartons per pallet
material :
galvanized steel, aluminum , ss
nail :
steel nail, aluminum nail
base type :
perforated
length :
15mm-250mm
Description

Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm

1.Specification of perforated type insulation anchor pins

material

pin dia

base size

length

Galvanized steel ,ss , aluminum

12ga ( 0.106 " )

2''X2''

1/2"

Galvanized steel ,ss , aluminum

12ga ( 0.106 " )

2''X2''

1"

Galvanized steel ,ss , aluminum

12ga ( 0.106 " )

2''X2''

1-5/8"

Galvanized steel ,ss , aluminum

12ga ( 0.106 " )

2''X2''

2"

Galvanized steel ,ss , aluminum

12ga ( 0.106 " )

2''X2''

3-1/2"

Galvanized steel ,ss , aluminum

12ga ( 0.106 " )

2''X2''

4 1/2"

Galvanized steel ,ss , aluminum

12ga ( 0.106 " )

2''X2''

5 1/2"

Galvanized steel ,ss , aluminum

12ga ( 0.106 " )

2''X2''

6"

Galvanized steel ,ss , aluminum

12ga ( 0.106 " )

2''X2''

8"

2. drawing of perforated insulation anchor pins

Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm

3. application of perforated insulation anchor pins

Common size and usages of the Perforated Metal Insulation Spikes , Perforated Base Insulation Hangers:

1-5/8": Used for 1-1/2" .75# Fiberglass Duct Wrap
2-1/2": Used for 2" Fiberglass Rigid Board / Foam Board
4-1/2": Used for 4" Fiberglass Rigid Board / R-13
6-1/2": Used for R-19 Fiberglass Batt Insulation
9-1/2": Used for R-30 Fiberglass Batt Insulation
12-1/2": Used for R-38 Fiberglass Batt Insulation

Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm

Application: It is fixed on the position where there is significant wind-suction-force or if the height is more than 20m or if the finishing coat is tile etc.Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing works, and for the duct-lining

Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm

related product- self locking washer

round self-locking washer, or speed clip, is made primarily in Mild Steel, with Standard Stainless and Aluminum sizes available. In several variations of round sizes, this insulation washer mounts on many types of insulation fasteners for capturing and holding insulation material in place. The gauge of the pin, or diameter, should match the fastener to be affixed, or "locked", onto. Popular diameters are 14 gauge, 12 gauge and 10 gauge---while overall, a wide variety of whole sizes are available in both standard and metric self-locking hole sizes which can range from 1/8" to 1/2".

Diameter
1
1-3/16
1-1/2
1-1/2
2"
Nominal Thickness
.015
.015
.015
.015
.015
Stnd Material
Galv
Galv
Galv
Galv
Galv
Pack
1000
1000
1000
1000
2000
Approx. Wgt/1000
4.2
4.8
8
8
14
Other Materials
S.S.
S.S.
S.S.
