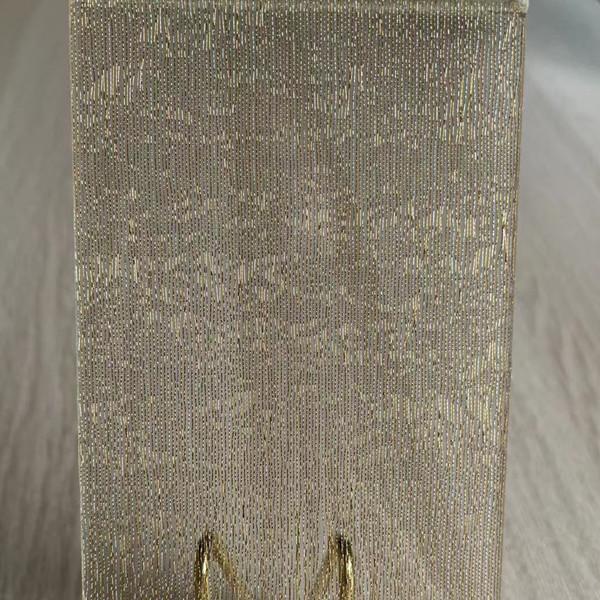

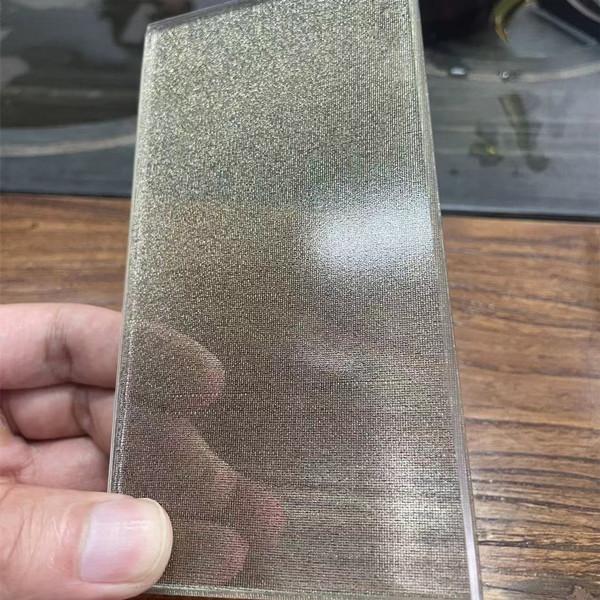

Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
Specifications
Brand Name :
Huihao
Model Number :
Fabric Laminated Glass Facade
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union, paypal
Supply Ability :
2300 sqaure meter per month
Delivery Time :
7 work days
Packaging Details :
wooden box for Colorful Metal Mesh Fabric Laminated Glass Facade
Product name :
Colorful Metal Mesh Fabric Laminated Glass Facade
mesh material :
ss, alu, copper and pe wire
Application :
curtain wall, facades
Thickness :
8mm, 10mm, 12mm, 16mm, 20mm, 28mm
Common size :
1000 mm x 1600 mm
Light transmission Tv :
61.8%
Mesh aperture :
55%
Metal coating :
PR Gold, single-sided, electroplate
Description

Colorful Metal Mesh Fabric Laminated Glass Facade

wire mesh laminated in glass when used in façade elements, whereas in double glazing it is stretched between two panes and fastened to the frame. If only the exterior surface is coated, the view in from outside is reduced and the fabric is also given outstanding energy-transmission reduction values. The rear surface (the side facing inwards) of the fabric is black and therefore neutral in color. From inside and from further away than 3 m the fabric cannot be seen.

Specification details of Colorful Metal Mesh Fabric Laminated Glass Facade

thickness 4+4mm, 5+%mm, 6+6mm, 8+8mm, 10+10mm etc
The thickness depends on diffrerent applications, please contact us for your bespoke projects.
common size
  • 1830*2440mm,
  • 3300*2140mm,
  • 3300*2250mm,
  • 3660*2140mm,
  • 1200*4700mm
Thickness of PVB 0.38mm,0.76mm,1.14mm,1.52mm,2.28mm,3.04mm
color Clear, Ultra Clear, Bronze, Grey, Black, Green, Blue etc...
Color can be from Mirror Color, Glass Color and PVB Color
Tolerance: +/- 2mm (glass size)
Glass options
  • Low Iron (crystal clear) - as standard
  • Float Glass (slight green tint)
  • Mirror Backed

Edge options

  • Polished all round (PAR)
  • Arrised all round (AAR)
  • Ground all round (GAR)

surface treatment
  • Clear (standard) or sandblast.
  • Opaque colours,
  • transparent colours
  • mirror finish can be applied to the rear leaf of the glass.

Features of Colorful Metal Mesh Fabric Laminated Glass Facade
1. Safety
When laminated glass breaks, it stays in shape, keep glass integrity. The glass fragments will not splash and harm the
people around.
2. Typhoon & Earthquake Resistant
When impact or force occurs, glass stays and will not break into pieces instantly.
3. Anti-bullet Glass
using multi-laminated technology to ensure strong impact resistance to gun and violence. So far, our Anti-bullet Glass have
been installed more than 1,000 banks in the south of China.
4. Anti-UV
PVB carries additive for filtering UV penetration. It will help to better protect property, furniture and valuable antique.
5. Sound Protection
PVB is able to absorb sound wave, subsequently create a quiet and tranquil environment.

Application of Colorful Metal Mesh Fabric Laminated Glass Facade

• Space divider.
• Wall decoration.
• Ceiling decoration.
• Window curtain.
• Handrail balustrade.
• Elevator cab mesh

• Facade cladding.
• Glass laminated wire.
• Sunshade screen.
• Security door.
• elevator cabins screen.
• Floor covering fabrics

• Wire mesh facades.
• Shade screens.
• Architecture ceilings.
• Metal draperies for walls.
• Partition and isolation screens.
• Staircases isolation screen.


Colorful metal Mesh Fabric Laminated Glass Facade
Colorful metal Mesh Fabric Laminated Glass Facade
