Specifications
Brand Name :
Huihao
Model Number :
Chain Mesh Conveyor Belt
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
50 square meters
Payment Terms :
L/C, T/T,paypal
Supply Ability :
1000 square meter within 28 days
Delivery Time :
10 work days
Packaging Details :
1. Inside with plastic bag and outside with wooden box. 2. According to Customers' request.
material :
stainless steel 304.316
wire diameter :
1-2mm

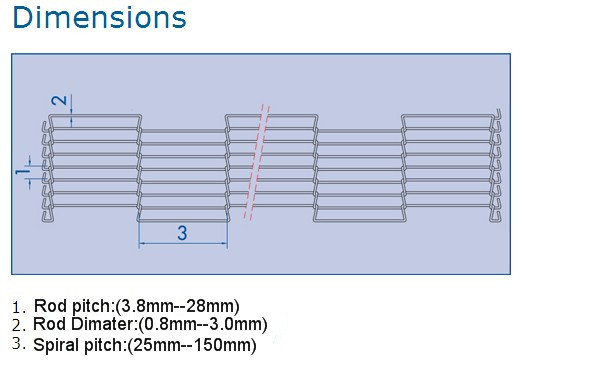

Rod Pitch :
5-8mm
Spiral pitch :
50mm
Overall Width :
300-1000mm
Length :
to be order
Description

Rod Pitch 8MM Stainless Steel Wire Chain Mesh Conveyor Belt For Pizza , Furnace

product details of Stainless Steel Wire Mesh Conveyor Belt

Stainless steel wire conveyor belt own the resistance to acid,alkali and low high temperature.It owns good conveying function,break resistance
as well as anti-oxidation.With professional design and compact form,the stainless steel wire conveyor belt is very easy to install and steadily
run without deflection.
Material
SUS 302, 304, 316, 316L
Standard
DIN JIS
Type
single Loop Edge, Doubl Loop Edge
Mesh Size
6*50mm, 10*70mm, etc.
Thickness
1.0mm-2.0mm
Width
500-2000mm
Length
2M-100M
Application
Used in food machinery and research units
Introduction
It is also know as trapezoidal mesh belt, belt is made by mesh belt of top hardness through a special mold pressing, the edge can also be driven by a chain.
Frature
Acid-ressitance, alkali-ressietance, high temperature resist, stronge tension and good aboration performance.

Specification of Stainless Steel Wire Mesh Conveyor Belt

Pitch and Wire Diameter

Nominal opening between wires

Edge Loop Size

XT Space Width

Minimum Large Space Width

Average Belt Weight (Kgs/m²)

Maximum Tension per Joint - Kgf (N)

Minimum Transfer Outside Diameter (grooved)

Typical Open Area (%)

7.26 x 1.6

5.66

7

22.23

50.8

2.9

6.8 (66.7)

19

71

12.7 x 1.83

10.87

7

22.23

44.45

2.7

8.2 (80)

25

78

9.6 x 1.83

7.77

8

22.23

57.15

3.1

8.2 (80)

25

74

9.6 x 2.08

7.52

8

25.4

82.55

3.75

10 (98)

25

72

COMPONENT QUANTITY CHART (SPROCKETS / BLANKS / SUPPORT STRIPS)

Number of XT spaces across belt

Number of Sprockets

Idler shaft

Belt supports

Sprockets

Blanks

Wear Strips

3

3

2

1

2

4

4

2

2

3

5

5

2

3

4

6

6

2

4

5

7

7

2

5

6

8

8

2

6

7

9

9

2

7

8

10

10

2

8

9

11

11

2

9

10

12

12

2

10

11

13

13

2

11

12

14

14

2

12

13

15

15

2

13

14

16

16

2

14

15

17

17

2

15

16

18

18

2

16

17

19

19

2

17

18

20

20

2

18

19

21

21

2

19

20

22

22

2

20

21

23

23

2

21

22

24

24

2

22

23

25

25

2

23

24

26

26

2

24

25

27

27

2

25

26

Rod Pitch 8MM Stainless Steel Wire Mesh Conveyor Belt For Pizza Furnace

Application of Stainless Steel Wire Mesh Conveyor Belt

Stainless Steel Wire Mesh Conveyor Belt Widely used in roasting foodstuff,printing,electronics ,cold storage ,metal heat treatment ,power

plant,pharmacy plant, non-woven cloth factory,glass and ceramic factory, conveyor machinery and conveyor lines in many industries.

Characteristics of conveyor belt mesh:


1. The stainless steel conveyor belt width: 150-5500mm
2. Working speed: 0.15-0.50m/ min
3. The edge of the form: Curved edge, upsetting the first, in the form of welding
4. Material: stainless steel wire ( 304, 304 L, 302, 201, 316, 316 L, 2520, 2080), stainless iron wire, middle and low carbon steel wire,

galvanized wire ( hot galvanized, electroplating), chromium iron wire, nickel chromium wire, aluminum wire, polyester wire etc.

specification before making the quotation:

1)material

2)rod diameter

3)rod pitch

4)spiral pitch

5)overall belt width

6)loop pattern

7)total length
