Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard
Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard
Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard
Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard
Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard
Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard
Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard
Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard
Specifications
Brand Name :
HUIHAO
Model Number :
stainless steel O ring
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, alibaba/papal
Supply Ability :
1000 pcs per 1 days
Delivery Time :
8 work days
Packaging Details :
be according to the size to pack with bag and carton
name :
stainless steel O ring
material :
stainless steel 304
diameter :
30mm-100mm
wire diameter :
8mm/M8
application :
Collars Leashes And Harnesses
type :
weldless type
Description

Stock M8 Stainless Steel 304 Welded Round O Rings Small Quantity Is Acceptable

what is weldless stainless steel O rings?

stainless steel O ring is made of stainless steel 304 or 316 material by CNC spring Machines.

No solder joints, smooth surface and no burrs, can be used for fitness rings, yoga rings, dog chains

and luggage accessories

weldless is not welded. it is through polish and Ni plated technical to cancel the welded point. so the ring is Beautiful and shiny.

Stock specification and quotation of M8 O ring

material wire diameter inter diameter moq EXW price
ss304 M8 30mm 200 USD1.56/PC
ss304 35mm 200 USD1.62/PC
SS304 40mm 200 USD1.68/PC
ss304 45mm 200 USD1.74/PC
ss304 50mm 200 USD1.81/PC
ss304 55mm 200 USD1.87/PC
ss304 60mm 200 USD1.94/PC
ss304 65mm 200 USD1.98/PC
ss304 70mm 200 USD2.06/PC
ss304 80mm 200 USD2.12/PC
ss304 90mm 200 USD2.22/PC
ss304 100mm 200 USD2.43/PC

Material technical tape of O ring mesh

Chemical%,max

type

C

Si

Mn

P

S

Cr

Mo

Ni

Cu

Characteristics

304-A2

0.1

1

2

0.05

0.03

15-20

8-19

4

Medium work hardening rate, suitable for general cold processing and stretching, good cold workability, commonly used for hexagonal screws, nuts and washers

316-A4

0.08

1

2

0.045

0.03

16-18.5

2-3

10-15

1

Molybdenum added, corrosion resistance is stronger than 304, especially suitable for seawater and chemical media, more corrosion resistance and pitting resistance.

type

items

Performance

rate

diameter

Tensile Strength

mpa/mm2

Non-specific crack elongation mpa/mm2

elongation

mpa/mm2

Austin

A2,A4

50

≤ 39

500

210

0.6d

70

≤ 24

700

450

0.4d

80

≤ 24

800

600

0.3d

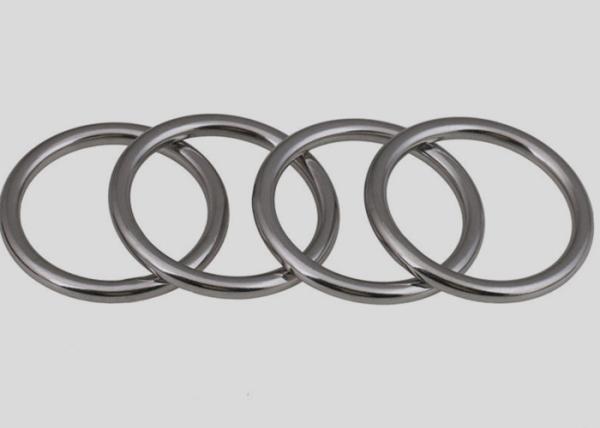

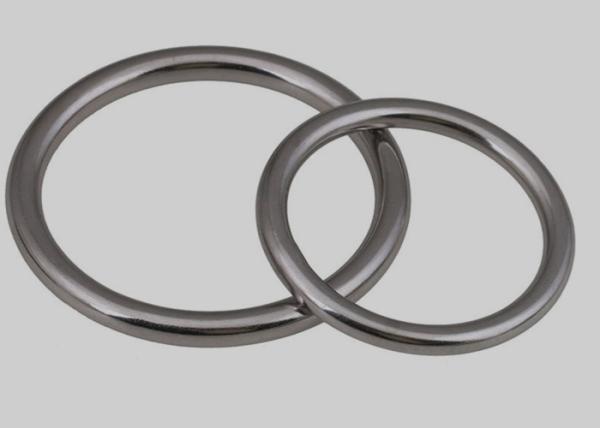

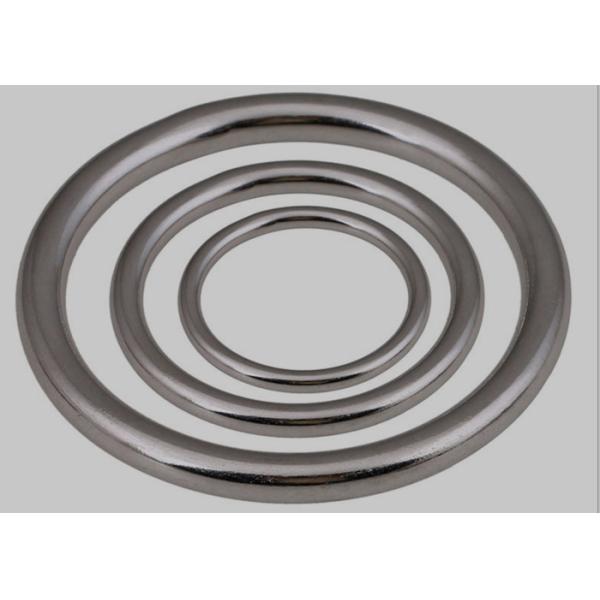

images of stainless steel round ring

Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard

Advantages of stainless steel O ring:

Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard

Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard
  • stainless steel304 material, According to different countries, different raw materials are provided to meet the requirements of the international market.
  • Smooth surface without burrs, waterproof and rustproof, heavy bearing capacity
  • Usually used with expansion blot, stainless steel chains and quick couplings
Stock M8 Welded Stainless Steel Metal Ring Mesh Round O Rings 30mm-100mm Dia ISO Standard
  • It is not an ordinary trader to be inspected by a third-party inspection agency.
  • Complete qualification, anti-rust smoke detection report, mechanics report, CNAS.CMA CAL test report.
  • ISO9001-2008 SYSTEM CERTIFICATION
