Bolts Connection Type Modular Polyurethane Screen Mesh For Coal Washing Steel Plants
Bolts Connection Type Modular Polyurethane Screen Mesh For Coal Washing Steel Plants
Bolts Connection Type Modular Polyurethane Screen Mesh For Coal Washing Steel Plants
Bolts Connection Type Modular Polyurethane Screen Mesh For Coal Washing Steel Plants
Bolts Connection Type Modular Polyurethane Screen Mesh For Coal Washing Steel Plants
Bolts Connection Type Modular Polyurethane Screen Mesh For Coal Washing Steel Plants
Bolts Connection Type Modular Polyurethane Screen Mesh For Coal Washing Steel Plants
Bolts Connection Type Modular Polyurethane Screen Mesh For Coal Washing Steel Plants
Specifications
Brand Name :
huihao
Model Number :
Modular polyurethane screen mesh
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union,paypal
Supply Ability :
10000pcs per 25 days
Delivery Time :
7 work days
Packaging Details :
1.Inside is plastic ,outside is hessian and tie by steel strips then packing by pallet 2.wooden box 3.Special packing can be made according to the customers request
Aperture type :
square, rectangular and round.
Aperture size :
5-50mm
thickness :
30-60mm
Connection type :
mosaic connection, bolts connection, press bar connection and hook connection.
application :
Coal Washing Steel Plants
Size :
500x500mm
Description

Bolts Connection Type Modular polyurethane Screen Mesh for Coal Washing Steel Plants

Specifications of Modular polyurethane Screen Mesh

  • Material: polyurethane material and embedded steel frame.
  • Thickness: 30mm - 60mm.
  • Aperture type: square, rectangular and round.
  • standard size:305x305mm. 305x610mm
  • Connection type: mosaic connection, bolts connection, press bar connection and hook connection.

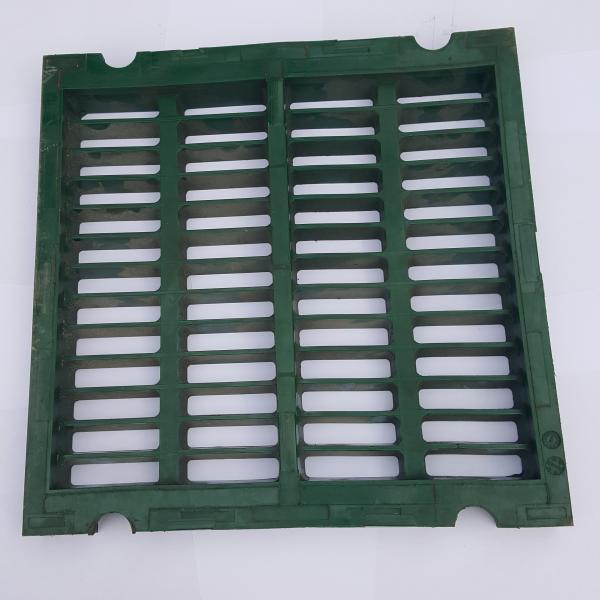

Modular polyurethane Screen Mesh rectangular apertures of main photo

width

length

thickness

aperture

stand width

305mm

305mm

30mm

55x125mm

7mm

Applications of Modular polyurethane Screen Mesh


The modular polyurethane screen mesh can fit various vibrating screens. It is widely used in various applications.

  • Steel plants.
  • Mining industry.
  • Cement plants.
  • Mineral beneficiation industry.
  • Power plants.
  • Coal washing.
  • Sand, gravel separating and screening.

Advantages of Modular polyurethane Screen Mesh:

  • High screening Efficiency---2-5 times of the ordinary screen
  • Large bearing capacity---2.5 times more than rubber sieve
  • Long service life--- Can be used for six months to more than one year
  • good abration and corrosion resistance--- condition of using water or oil as the medium.
  • maintanance and replacement is low--- Hole can’t be plugged& washing-free
  • Low noise---it has well vibration-absorbing performance
  • rational design of the screen hole---limit size of the particleswill not block mesh.
  • widely used---mining, metallurgy, coal, coking, chemical and other industries.
  • Good wet resistant performance---work on the water condition

images of Modular polyurethane Screen Mesh

Bolts Connection Type Modular Polyurethane Screen Mesh For Coal Washing Steel Plants
