5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated
5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated
5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated
5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated
5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated
5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated
5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated
5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated
Specifications
Brand Name :
HUIHAO
Model Number :
insulation CD weld pins
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5000PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100.000PCS per week
Delivery Time :
7-10 days after confirm the order
Packaging Details :
usually 500pcs ,800pcs ,1000pcs per carton then on pallet
Name :
Insulation CD weld pins
Material :
carbon steel/stainless steel
Surface treatment :
polish/galvanized/copper coated
Pin diameter :
1mm,1.5mm,2.7mm,3.0mm,3.4mm,4mm,5mm
Pin length :
10mm-500mm
Sample :
free
Package :
500/800/1000pcs per carton
service :
door to door service
Description

5mm Capacitor Discharge Insulation CD Weld Pins Copper Coated

Quick details insulation CD weld pins copper coated :

  • Name :insulation CD weld pins is also called CD insulation weld pins
  • Material : carbon steel ,stainless steel ,alumnum ,
  • Surface treatment :the carbon steel CD weld pins are available in galvanized coated or copper coated ,
  • The diameter :14gauge(2.0mm) 12gauge(2.7mm) 11guauge(3mm) 10gauge(3.4mm) 4mm ,5mm
  • The length : from 10mm to 500mm
  • Type : weld tip top or little star base Install :self locking washer ,3-slots speed clips ,insulation dome cap washer

Specification of insulation CD weld pins copper coated :

Modle wire diameter Length Material Surface treatment
HH-M1 1mm 10mm SS/MS Polish for SS ,galvanized/copper coated for MS
HH-1.5 1.5mm 15mm SS/MS
HH--2 2.0mm 25mm in comon SS/MS
HH-2.7 2.7mm 38-203mm SS/MS
HH-3 3.0mm 45-203mm SS/MS
HH-3.4 3.4mm 45-500mm SS/MS
HH-4 4mm 45-500mm SS/MS
HH-5 5mm 45-500mm SS/MS
Pls note that we can make the pin size and length according your request ,special size pls contact me for more information

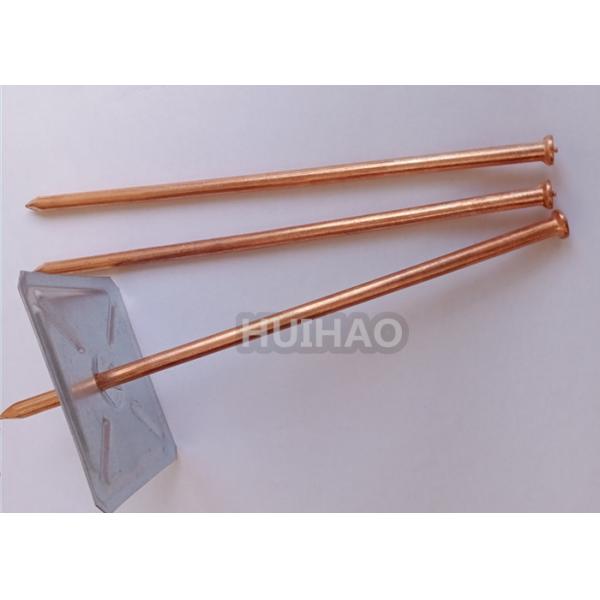

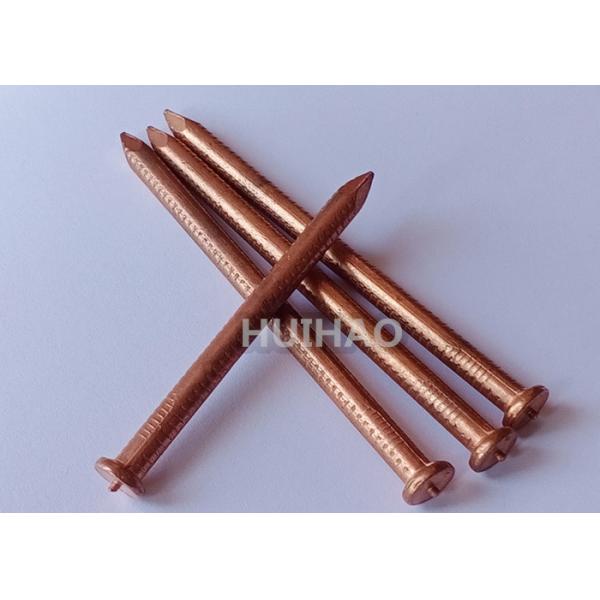

Pic of insulation CD weld pins copper coated :

5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated

Application of insulation CD weld pins :

The welding insulation CD weld pins is a capacitor discharge weld insulation fastener, these insulation

CD weld pins work with a stud welding machine, weld the pins on the sheet metal, then put the insulation
through the welding pins, press a self locking washer onto the nail, bend over or clip off the nail to finish

fastening insulation installation.

5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated

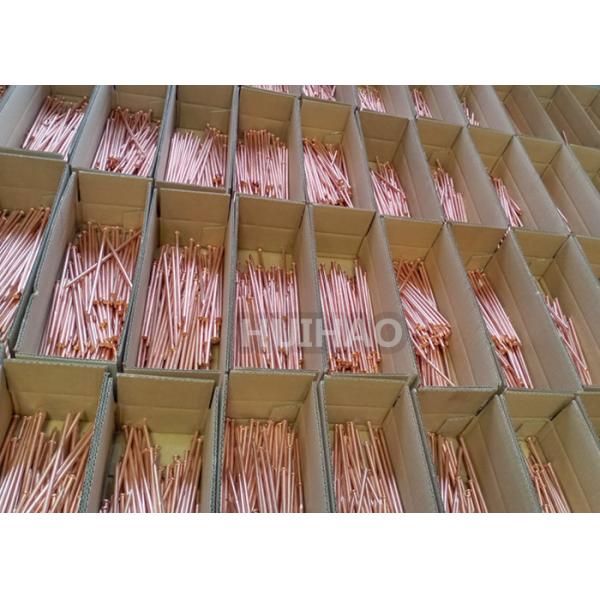

Package of insulation CD weld pins :

5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated

5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated

Pacakge for insulation CD weld pins :

  • Package 1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet. 2. to be your requirements.
  • Delivery Sample: DHL/EMS/UPS/TNT/EXPRESS Large Order: we recommend you by SEA ,or by AIR if in an emergency.

FAQ for HUIHAO company :

Q1: Are you factory or trader ?

Yes ,we sell what we manufacture

Q2:How long is your delivery time?

Usually the ship time is within 7-15 days

Q3:What is your quote elements?

The size of product, material with surface treatment and the quantity

Q4:Can you provide samples?is it free or in charge ?

A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the mold fee will return back you after confirm the mass order

Q5: How can you ensure the quality?

1.we can supply CAD drawing pic for you

2.Our company have ISO certificate

2.We have working on this product for twenty years and we have experience on it ,and we know the point you focus on
