36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards
36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards
36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards
36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards
36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards
36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards
Specifications
Brand Name :
Huihao
Model Number :
36mm Metal Fixing Washers
Certification :
iso9001-2008
Place of Origin :
China
MOQ :
10000pcs
Payment Terms :
T/T, D/A, D/P, L/C
Supply Ability :
2000000 pcs per 20 days
Delivery Time :
20 days after the payment
Packaging Details :
50pcs/bag, 100pcs/bag, 200pcs/bag etc.
Name :
36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards
Material :
galvanized steel or stainless steel
Application :
secure insulation boards to doors, floors, ceilings
Diameter :
36mm
Surface :
galvanized or polish
Thickness :
0.6mm
Small Order :
support
Center Hole :
5mm
Samples :
support
Package Customization :
support
Description

36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards

Description Of The 36mm Metal Fixing Discs Washer

The 36mm metal fixing washers have been specially designed to provide an easy secure way

to fix thermopanel, marmox and wedi type insulation boards to walls, ceilings, or floors.

Item: Insulation Board Fixing Washers

Material: galvanized steel or stainless steel 304 material

Size: 36mm

Center Hole: 5mm

Thickness: 0.6mm

Advantage:

The insulation board metal fixing washers are easy to fix and have been specially designed for use with tile backer boards in three specific ways.

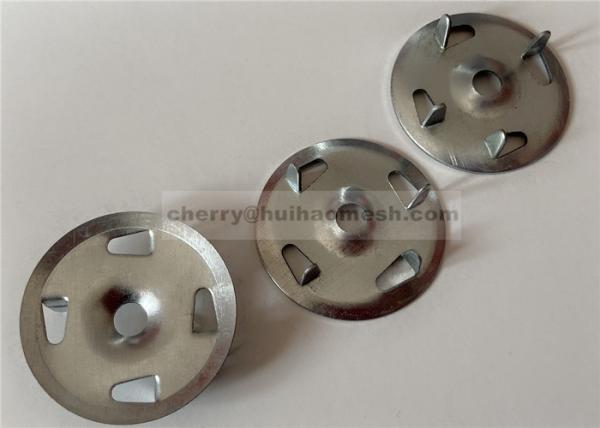

1: The washers are counter sunk to allow the screw head to pull into the board but the outer rim of the disc to remain flush with the board surface. This is to maintain the flat board surface ready for easy unhindered application of the subsequent layers.

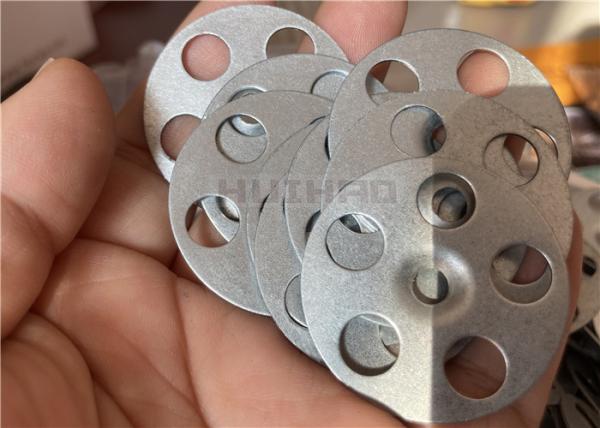

2: The washers have a perforated surface to maintain maximum board surface exposure as standard adhesives and plasters are not designed to be fixed to flat metal surfaces. By perforating the fixing disk this allows the adhesive or plaster to adhere to the board surface minimising the risk of surface damage.

3: The discs are made from stainless steel or galvanized steel to protect them from corrosion and minimise any chance of degradation over time.

36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards

Application Of The 36mm Metal Fixing Discs Washer

1. When using the 36mm metal fixing washers to fix tile backer boards to walls ceilings or floors,

it is recommended to use 15 washers per 1200 x 600mm board.

2. This is only a guide and specifically it's depended on the type, thickness, sub surface and

what is to be put onto the board.

3. It is the installers responsibility to use the correct number of washers to hold the tile backer

board in place.

36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards

Package Of The 36mm Metal Fixing Discs Washer

For the package of the insulation board 36mm metal fixing washers, we supply well package customization service for you, commonly we'll use pp bags and paper carton to make package, the pp bags could be customized according to your need, and the quanity per pp bag could be according to your requirement, small bags package are supported.

1. 50 pcs/bag

2. 100 pcs/bag

3. 200 pcs/bag

4. 500 pcs/bag

5. customized according to customer's requirement
36mm Metal Fixing Discs Washer Used To Fasten Tile Backer Boards

FAQ Of Huihao Hardware Mesh Product Co.,Ltd.

1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, product customization is supported.

3. Do you support package customization?

Yes, package customization is supported.
4. Can i get samples?
Yes, samples for quality confirm is supported.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
