Galvanized Steel Self Stick Insulation Hangers 2-1/2 For HVAC System
Galvanized Steel Self Stick Insulation Hangers 2-1/2 For HVAC System
Galvanized Steel Self Stick Insulation Hangers 2-1/2 For HVAC System
Galvanized Steel Self Stick Insulation Hangers 2-1/2 For HVAC System
Specifications
Brand Name :
HUIHAO
Model Number :
Self Stick Insulation Hangers
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
10000 pcs
Payment Terms :
L/C, T/T,
Supply Ability :
10000 pcs oer hour
Delivery Time :
10 work days
Packaging Details :
500pcs per carton, 48 cartons per pallet, or as your requirement
Name :
Self Stick Insulation Hangers For HVAC System
Brand :
Huihao Custom
Material :
Galvanized steel or stainless steel
Base Size :
40x40mm, 50x50mm etc.
Product Customization :
Support
Pin Diameter :
2.7mm as standard
Samples :
Support
Pin Length :
18mm-230mm in standard
Description

Galvanized Steel Self Stick Insulation Hangers 2-1/2" Used For HVAC System

Quick Details Of The 2-1/2" Self Stick Insulation Hangers For HVAC System:

Self-stick insulation hangers are designed to fix efficiently insulation on smooth surfaces

such as air ducts, attenuators, chambers and enclosures.

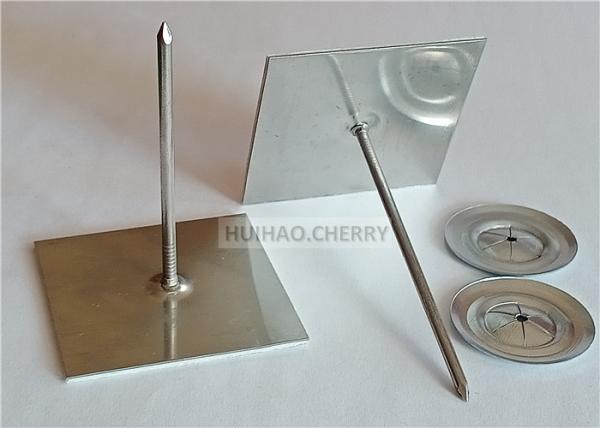

Self stick insulation hanger consists of a pin, firmly riveted on a high quality self-adhesive base.

Item Self Stick Insulation Hangers
Material Galvanized steel or stainless steel
Base size 50x50mm
Base thickness 0.4mm
Adhesive thickness 1.0mm
Pin diameter 2.7mm
Pin length 2-1/2" / 63.5mm
Accessories Self Locking Washers
Advantages

1. The pins are riveted on the base of the self stick insulation hangers, it's very strong.

2. The self adhesive tape on the base botom of the self stick insulation hangers is very sticky.

3. The self locking washers are very hard, it could lock the self stick insulation hangers very firmly.
Galvanized Steel Self Stick Insulation Hangers 2-1/2

Specifications Of The Self Stick Insulation Hangers For HVAC System:

Base

Material

Galvanized Steel

Stainless Steel

Base Size

50 x 50 mm

40x40mm

Base Thickness

0.4 mm (28 ga)

Pin

Material

Galvanized /

Copper Plated Steel

Aluminum

Stainless Steel

Diameter

2.7 mm (12 ga),

3mm (11ga)

Length

19 to 400 mm
(3/4" to 16")

45 to 165 mm
(1-3/4" to 6-1/2")

25 to 400 mm
(1" to 16")

Adhesive

Thickness

1 mm (1/25")
Galvanized Steel Self Stick Insulation Hangers 2-1/2

Technical Data Of The Self Stick Insulation Hangers For HVAC System:

Polyethylene foam with aggresive pressure sensitive rubber resin adhesive.
Service Temperature : -40 deg C to +70 Deg C
Highly Resistant to abrasion, corrosion and moisture.
Confirms to European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
10 Minutes 180 degree Peel Adhesion : 30 N/25mm
500 Hour static shear ( Stainless Steel) : 0.8 kg/cm3

Installation Of The Self Stick Insulation Hangers For HVAC System:

1. Install at ambient temperatures above 10° C (preferably between 15 and 25° C)
2. Surfaces should be clean and dry, free of dust, grease, oil and any other loose matter
3. Remove the protective release paper,taking care not to touch the adhesive
4. Place the self adhesive insulation pins in the required position and press the base against

the surface to be insulated
5. Insulation can be impaled immediately and firmly locked with fastening clips or washers,

but maximum strength of adherence is achieved after 24 hours
6. If necessary, cover the pin with a protective nylon cap
Galvanized Steel Self Stick Insulation Hangers 2-1/2

Package Details Of The Rockwool Insulation Self Stick Hangers

PIN LENGTH

CARTON SIZE

QTY/CARTON

38MM

41CMX28CMX17CM

1000PCS

50MM-65MM

41CMX28CMX17CM

500PCS

70MM-84MM

30CMX28CMX29CM

500PCS

90MM-120MM

30CMX30CMX30CM

500PCS

130MM-160MM

30CMX30CMX35CM

500PCS

170MM-203MM

30CMX30CMX28CM

250PCS

OTHERS

SUPPORT CUSTOM

FAQ Of Huihao Hardware Mesh Product Limited

1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material, the surface finish, the size, all could be customized.

3. Do you support package customization?

Yes, the package could be customized according to your need.

4. Can i get samples?
Yes, samples for quality confirm are supported.

5. Can you accept small orders?

Yes, for common size, we could accept small orders.
