32mm Square Insulation Speed Clips Galvanized Steel For Commercial Insulation Industry
32mm Square Insulation Speed Clips Galvanized Steel For Commercial Insulation Industry
32mm Square Insulation Speed Clips Galvanized Steel For Commercial Insulation Industry
32mm Square Insulation Speed Clips Galvanized Steel For Commercial Insulation Industry
32mm Square Insulation Speed Clips Galvanized Steel For Commercial Insulation Industry
32mm Square Insulation Speed Clips Galvanized Steel For Commercial Insulation Industry
Specifications
Brand Name :
HUIHAO CUSTOM
Model Number :
Square Insulation Speed Clips
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
5000 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500000pcs per 15 days
Delivery Time :
5-8 work days
Packaging Details :
PP bag + Paper carton + Wood pallet
Item :
Square Insulation Speed Clips Galvanized Steel Used For Commercial Insulation Industry
Brand :
HUIHAO CUSTOM
Size :
1-1/4" / 32mm (other diameter also available)
Usage :
Fasten Insulation Pins
Thickness :
0.4-0.5mm
Material :
Galvanized steel (stainless steel also available)
Type :
Square
MOQ :
5000 pcs
Samples :
Support
Door to door Service :
Support
Description

32mm Square Insulation Speed Clips Galvanized Steel Used For Commercial Insulation Industry

Quick Details Of The 32mm Galvanized Steel Insulation Speed Clips Square:

Application: Insulation Speed Clips are used in conjunction with lacing anchors or CD weld

pins or insulation hangers to fasten insulation in place. Simply press the insulation speed clips

onto the pin up against the insulation until the desired position is reached and then clip off or

bend over the remaining portion of the pin for a permanent attachment.

material thickness diameter usage
galvanized steel 0.4mm 32x32mm fix 2.7mm, 3.0mm, 3.4mm, 5.0mm etc. pins
32mm Square Insulation Speed Clips Galvanized Steel For Commercial Insulation Industry

Specification Details Of The Insulation Speed Clips:

1. Insulation speed clips for metal studs are mainly made of stainless steel or galvanized steel

or high hardness aluminum material.

2. Insulation speed clips for metal studs could be round or square type, the choice between
round or square is basically a matter of personal preference.
3. Insulation speed clips for metal studs also could with dome caps, dome caps are designed
to be used where appearance and safety are factors when installing insulation.
4. Some styles of speed clips are made with a beveled edge to prevent the washer from cutting
into the insulation facing.
Item Self Locking Washers, Insulation Speed Clips
Manufacture Huihao Hardware
Material Galvanized Steel Or Stainless Steel Or Aluminum
Surface Finish Galvanized or polish or black coating
Type Round Or Square Or Dome Capped
Size 25mm, 30mm, 32mm, 38mm, 40mm, 50mm, 63.5mm, 65mm etc,
Thickness 0.4mm, 0.5mm, 0.6mm

Usage

Used to fasten perforated insulation hangers, self-adhesive insulation hangers, cd weld pins, lacing anchors etc.

32mm Square Insulation Speed Clips Galvanized Steel For Commercial Insulation Industry

Item: Insulation Speed Clips

Material: Galvanized steel or stainless steel or aluminum

Surface Finish: Galvanized or polish or black coating
Type: Round Or Square
Size: 25mm, 30mm, 32mm, 35mm, 38mm, 40mm, 50mm, 63.5mm etc.
Thickness: 0.4mm, 0.5mm, 0.6mm
32mm Square Insulation Speed Clips Galvanized Steel For Commercial Insulation Industry

Item: Insulation Speed Clips With Dome Caps

Cap Material: Galvanized steel or stainless steel or aluminum or plastic

Insert Material: Galvanized steel or stainless steel
Surface Finish: Galvanized or polish or color painting
Size: 22mm, 27mm, 30mm, 32mm, 38mm, 40mm etc.
Insert Washer Thickness: 0.4mm

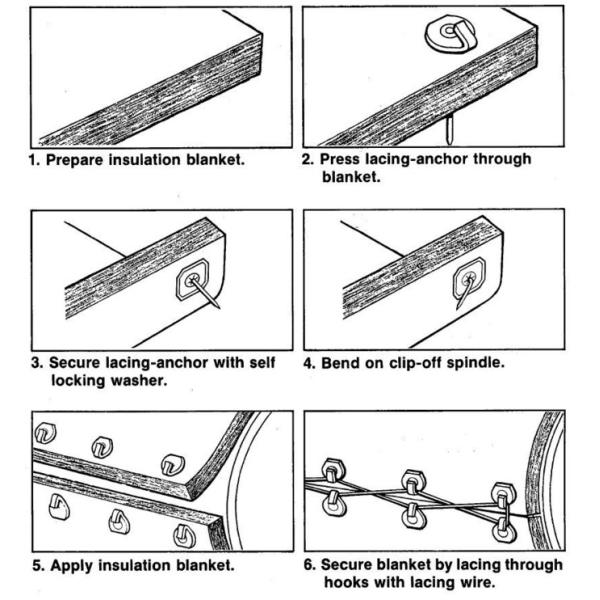

Application Of Square Insulation Speed Clips:

1. Prepare insulation blanket

2. Press lacing anchors through blanket

3. Secure lacing anchors with square insulation speed clips

4. Bend on clip-off spindle

5. Apply insulation blanket

6. Secure blanket by lacing through hooks with lacing wire

32mm Square Insulation Speed Clips Galvanized Steel For Commercial Insulation Industry

Package Of The Insulation Speed Clips:

1. 250 pcs/ 500 pcs/1000 pcs per bag

2. 10 bags/ 8 bags per carton
3. 48 cartons per wooden pallet
4. or as your request

32mm Square Insulation Speed Clips Galvanized Steel For Commercial Insulation Industry
