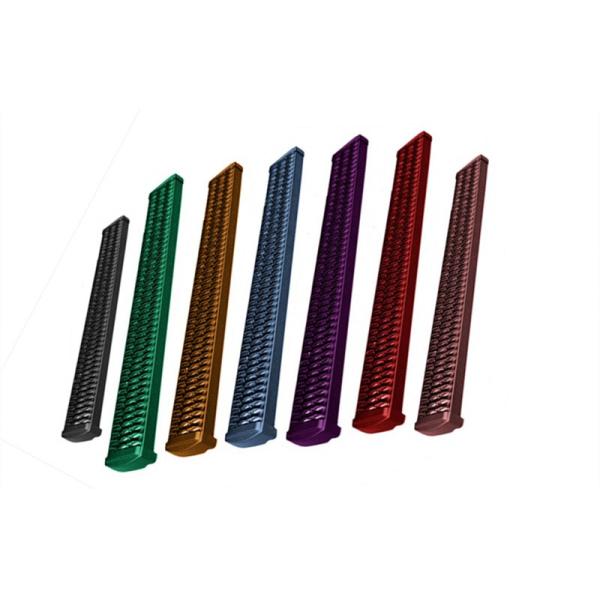

230mm Metal Perforated Grating Grip Strut Ladder Rungs
230mm Metal Perforated Grating Grip Strut Ladder Rungs
230mm Metal Perforated Grating Grip Strut Ladder Rungs
230mm Metal Perforated Grating Grip Strut Ladder Rungs
230mm Metal Perforated Grating Grip Strut Ladder Rungs
230mm Metal Perforated Grating Grip Strut Ladder Rungs
230mm Metal Perforated Grating Grip Strut Ladder Rungs
230mm Metal Perforated Grating Grip Strut Ladder Rungs
Specifications
Brand Name :
huihao
Model Number :
Ladder Rungs
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
50 pieces
Payment Terms :
L/C, T/T
Supply Ability :
4000 pcs per month
Delivery Time :
7 work days
Packaging Details :
pallet or wooden case
name :
safety Grating Ladder Rungs
thickness :
2.5mm, 3mm
width :
230mm
length :
3', 4', 10', 12'
height :
30mm, 35mm
finished :
colored
Description

Perforated Metal safety Grating Ladder Rungs, Traction Tread Ladder Rungs

product details of Perforated Metal safety Grating Ladder Rungs, Traction Tread Ladder Rungs

Huihao Anti-Slip Metal Ladder Rungs are produced with welded end carrier plates, Huihao Anti-Slip Metal Ladder Rungs uses the same

materials with plank. The pattern can be 2, 3diamonds. The Huihao Anti-Slip Metal Ladder Rungs are divided into standard stair treads

and stair treads with nosing. The standard stair treads can be used life, traffic, etc. The stair treads with nosing are more high slip resistance,

it has a special usages for industry.

2 Diamond / 160mm Width
Diamond Pattern
Width
Channel Depth
galvanized
Aluminum
2 Diamonds
160mm
2
11 Ga., 10 Ga., 9Ga.
12 Ga. (.080), 10 Ga. (.100)
160mm
2-1/2
11 Ga., 10 Ga., 9Ga.
12 Ga. (.080), 10 Ga. (.100)
160mm
3
11 Ga., 10 Ga., 9Ga.
12 Ga. (.080), 10 Ga. (.100)
160mm
4
11 Ga., 10 Ga., 9Ga.
12 Ga. (.080), 10 Ga. (.100)
3 Diamond / 240mm Width
Diamond Pattern
Width
Channel Depth
galvanized
Aluminum
3 diamonds
240mm
2
11 Ga., 10 Ga., 9Ga.
12 Ga. (.080), 10 Ga. (.100)
240mm
2-1/2
11 Ga., 10 Ga., 9Ga.
12 Ga. (.080), 10 Ga. (.100)
240mm
3
11 Ga., 10 Ga., 9Ga.
12 Ga. (.080), 10 Ga. (.100)
240mm
4
11 Ga., 10 Ga., 9Ga.
12 Ga. (.080), 10 Ga. (.100)

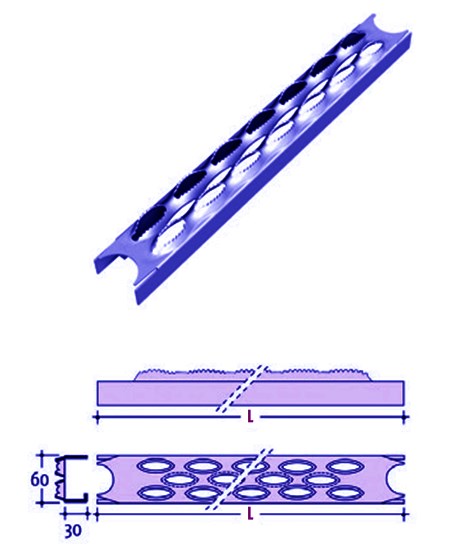

230mm Metal Perforated Grating Grip Strut Ladder Rungs
material
th
w
l
h
GS
2mm
60mm
500mm
30mm
SS
2mm
60mm
500mm
30mm
ALU
3mm
60mm
500mm
30mm
Inner edge of 7 mm on one side
Fixed size 500 mm (with cutout for clearance between ladder bars [1.5" tube] 452 mm)
For 500 mm bar central clearance

images details of Perforated Metal safety Grating Ladder Rungs, Traction Tread Ladder Rungs

230mm Metal Perforated Grating Grip Strut Ladder Rungs
