Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways
Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways
Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways
Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways
Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways
Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways
Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways
Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways
Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways
Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways
Specifications
Brand Name :
huihao
Model Number :
HH- Diamond
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
30
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
7 work days
Packaging Details :
pallet or case
name :
Diamond Strut Safety Grating
material :
GS
Thickness :
3mm
height :
50mm, 75mm, 100mm
aperture :
75mmx30mm
width :
300mm-800mm
length :
less than 6000mm
color :
support
Description

Gal.Steel Diamond Strut Safety Grating With Non-Slip For Long Span Walkways

Heavy-Duty Grip Strut Safety Grating products offer the advantage of regular Grip Strut Safety Grating, but are designed for applications

of greater load and/or longer span. Basic design is the same, but diamond openings are larger and metal is thicker. Heavy-Duty Grating

products are available in many of the same configurations, materials and finishes as regular Grip Strut Safety Grating. Heavy-Duty Grip

Strut Grating products include: planks, walkways and stair treads

material choose of Gal.Steel Diamond Strut Safety Grating With Non-Slip

  • pre-galvanized carbon steel.
  • HRPO carbon steel.

drawing design of Custom Grip Strut Safety Grating Platforms For Safest Walking Working Surfaces

Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways

specification details of Gal.Steel Diamond Strut Safety Grating With Non-Slip For Long Span Walkways

2 Diamond / 9-1/4" Width of Diamond Strut Safety Grating

Diamond Pattern

Width

Channel Depth

galvanized

2 Diamonds

9-1/4

2

10 Ga

9-1/4

2-1/2

10 Ga.,

9-1/4

3

10 Ga.

9-1/4

4

10 Ga

3 Diamond / 13-3/4" Width of Diamond Strut Safety Grating

Diamond Pattern

Width

Channel Depth

galvanized

3 diamonds

13-3/4

2

10 Ga.

13-3/4

2-1/2

10 Ga.

13-3/4

3

10 Ga.

13-3/4

4

10 Ga.

5 Diamond / 23-1/4" Width of Diamond Strut Safety Grating

Diamond Pattern

Width

Channel Depth

galvanized

5 diamonds

23-1/4

2

10 Ga.

23-1/4

2-1/2

10 Ga

23-1/4

3

10 Ga

23-1/4

4

10 Ga

6 Diamond / 27-3/4" Width of Diamond Strut Safety Grating

Diamond Pattern

Width

Channel Depth

galvanized

6 diamonds

27-3/4

2

10 Ga

27-3/4

2-1/2

10 Ga

27-3/4

3

10 Ga

27-3/4

4

10 Ga

8 Diamond / 36" Width of Diamond Strut Safety Grating

Diamond Pattern

Width

Channel Depth

galvanized

8 diamonds

36

1-1/2

10 Ga.

36

2

10 Ga.,

36

2-1/2

10 Ga.,

36

3

10 Ga.,

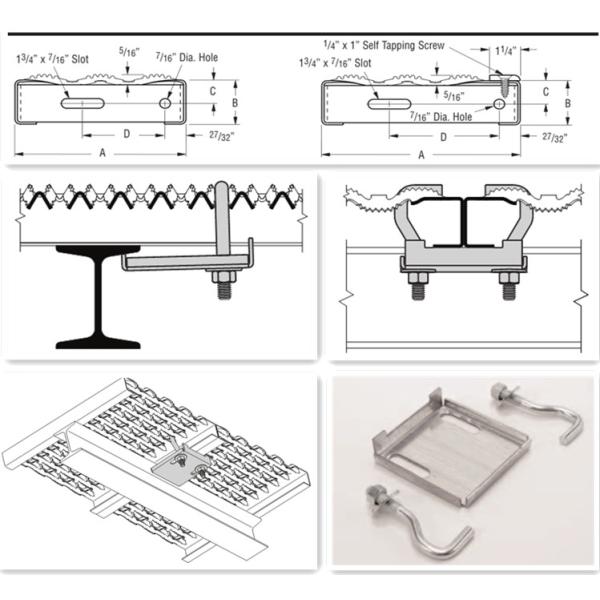

Installation of Gal.Steel Diamond Strut Safety Grating With Non-Slip For Long Span Walkways

Gal Steel Diamond Non Slip Grip Strut Safety Grating For Walkways

Clamp prevents grating from shifting on supports. Holds pieces together with or without clearance between panels. All bolts are below top

surface of grating. No holes are drilled in supporting members. Assembly consists of anchor plate, 2 J-bolts, nuts and washers all electro

zinc plated. Standard finish is hot dipped galvanized before fabrication.
