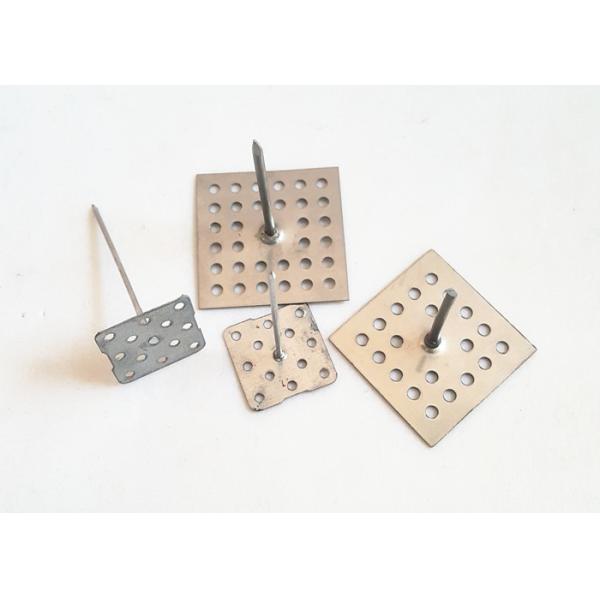

Zinc Plated Perforated Metal Base Insulation Anchor Pins
Zinc Plated Perforated Metal Base Insulation Anchor Pins
Zinc Plated Perforated Metal Base Insulation Anchor Pins
Zinc Plated Perforated Metal Base Insulation Anchor Pins
Zinc Plated Perforated Metal Base Insulation Anchor Pins
Zinc Plated Perforated Metal Base Insulation Anchor Pins
Zinc Plated Perforated Metal Base Insulation Anchor Pins
Zinc Plated Perforated Metal Base Insulation Anchor Pins
Zinc Plated Perforated Metal Base Insulation Anchor Pins
Zinc Plated Perforated Metal Base Insulation Anchor Pins
Zinc Plated Perforated Metal Base Insulation Anchor Pins
Zinc Plated Perforated Metal Base Insulation Anchor Pins
Specifications
Brand Name :
HUIHAO
Model Number :
INSULATION PIN
Certification :
ISO
Place of Origin :
CHINA
MOQ :
30,000PCS
Price :
USD0.02-0.3
Payment Terms :
L/C, T/T, Western Union,PAYPAL
Supply Ability :
300,000PCS PER 20 DAYS
Delivery Time :
7 work dasy
Packaging Details :
per carton, carton size 28cm x29cm x31xm or to be your request
Product name :
insulation fixing pin
Material :
stainless steel ,galvanized
base size :
50mmx50mm ,40x40mm
Pin length :
63 mm - 250 mm in common
pin diameter :
2.7mm 3mm
Usage :
HVAC system
Description

50mmx50mm galvanized perforated metal base insulation fixing pin

Product Description of insulation anchor pins

Perforated Insulation Hangers are used to attach insulation with the use of General Purpose Adhesive. It is specially formulated to

bond to metal, masonry and other sound substrates. Surfaces must be clean and dry before adhesive is applied. Some protective

coatings are not compatible with adhesives and it is recommended that the user make test bonds before proceeding with the

application.After the hanger is installed, insulation is imapled over the spindle and secured with a self-locking washer.

Specification of perforated insulation hangers

Material: stainless steel 304,316,316L, galvanized steel, mild steel, aluminum

pin diameter perforated base plate size insulation pin length
1.8mm-2.2mm square 30mm, 40mm, 50mm 1 "
1.8mm-2.2mm square 30mm, 40mm, 50mm 1 - 5 / 8"
2mm-2.7mm square 30mm, 40mm, 50mm 2 "
2mm-2.7mm square 30mm, 40mm, 50mm 2 - 1 / 2"
2mm-2.7mm square30mm, 40mm, 50mm 3 - 1 / 2"
2mm-3mm square30mm, 40mm, 50mm 4 - 1 / 2"
2mm-3mm square30mm, 40mm, 50mm 5 - 1 / 2"
2mm-3mm square 30mm, 40mm, 50mm 6 - 1 / 2"
2mm-3mm square 30mm, 40mm, 50mm 8 "
2mm-3mm square 30mm, 40mm, 50mm 8 - 1 / 2"
2mm-3mm square 30mm, 40mm, 50mm 9 - 1 / 2"
2.2mm-3mm square 30mm, 40mm, 50mm 10 - 1 / 2"
2.2mm-3mm square 30mm, 40mm, 50mm 12 "

Recommended assembly method:


1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of adherence is achieved after 24 hours

Detail picture of insulation anchor pins

Zinc Plated Perforated Metal Base Insulation Anchor Pins

Zinc Plated Perforated Metal Base Insulation Anchor Pins

Package of insulation anchor pins


1. insulation pin length less than 65mm, 1000pcs per carton, 64 cartons per pallets.
2. insulation pins length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.
3. insulation pins length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.
4. as your requirement

Delivery of insulation anchor pins

Sample;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.

Other style insulation pin

Zinc Plated Perforated Metal Base Insulation Anchor Pins
