Specifications
Brand Name :
HUIHAO
Model Number :
Duct liner pin
Certification :
ISO
Place of Origin :
CHINA
MOQ :
20.000pcs
Payment Terms :
L/C, L/C, T/T, T/T, Western Union, paypal
Supply Ability :
300.000 pcs per 20 days
Delivery Time :
7 work days
Packaging Details :
1.500pcs per bag, 10 bags per carton.72 cartons per pallet 2.1000pcs per carton, 48 cartons per pallet. 3. to be your requirements
Product Name :
cup head stud welding pins
Material :
stainless steel or carbon steel
Head diameter :
30mm or 25mm
Finished :
galvanized , copper coated ,polished
Pin diameter :
2.7mm ,3.0mm,3.4mm
Pin length :
19mm-200mm
Sample :
support
Service :
door to door service
Description

Galvanized Steel Cupped Head Stud Welding Pins for Duct Liner 30mm 38mm

Quick Details of Galvanized Steel Cupped Head Stud Welding Pins

1. Product name :Cupped Head Stud Welding Pins

2.Material: Low Carbon Steel, material specifications or certification available.
3.Finish: Mild Steel pins are galvanized/coated, washer is galvanized.
4.Annealing: All steel pins are fully annealed unless otherwise specified.

5.Paper Insulating Washers:Available for welding through foil faced insulation.Paper insulating washers

can be ordered separately or factory installed.
6.Compatibity: All pins are compatible and recommended for use with all brands of CD stud welding

equipment

Metal Cupped Head Pins type of Capacitor Discharge (CD) pin is welded through the insulation, allowing

the fabrication to be done in one easy step. The head of the pin is attached to the nail, so there is no

need to add a washer.
Metal Cupped Head Pins Reduced labor time - Neat, finished appearance

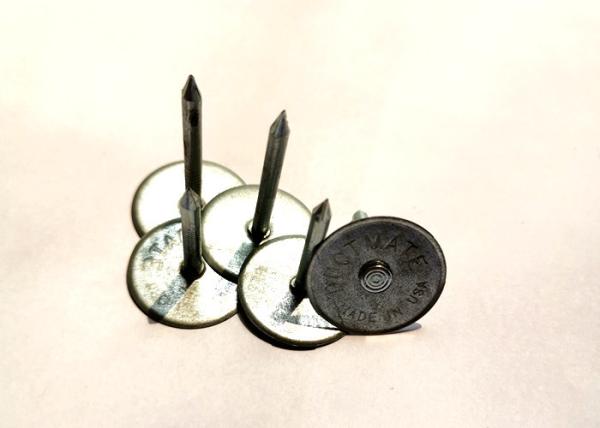

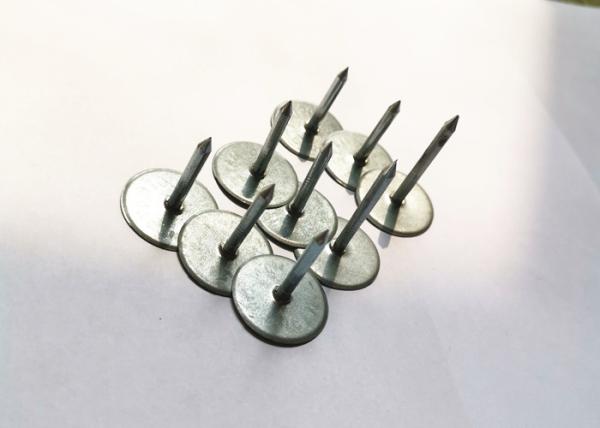

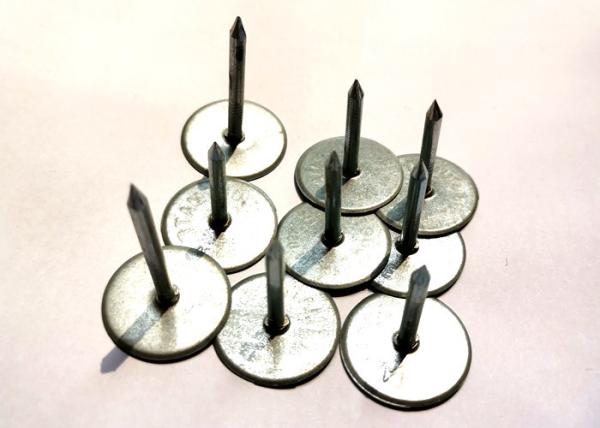

Pic of Galvanized Steel Cupped Head Stud Welding Pins

Galvanized Steel Cupped Head Stud Welding Pins for Duct Liner 30mm 38mm

Specification of Galvanized Steel Cupped Head Stud Welding Pins

common size of duct liner Cupped Head Weld Pin
Cupped Head Weld Pin diameter

base size

 length Base type
2.7mm 25mm, 30mm

15-250mm

 without paper ,with paper ,with gold color
3mm 25mm, 30mm

15-250mm
3.4mm 25mm, 30mm

15-250mm

Feature of Galvanized Steel Cupped Head Stud Welding Pins

Duct Liner Cupped Head Weld insulation Pin For Auto Welding Resistance Equipment
BETTER PLATING weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated.
REDUCED DOWN TIME Consistent point quality reduces frequency of machine adjustments.
STRONGER WELDS Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE Plating exceeds current SMACNA standards for corrosion resistance.
TEMPERATURE RANGE Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
VIBRATIONS

Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

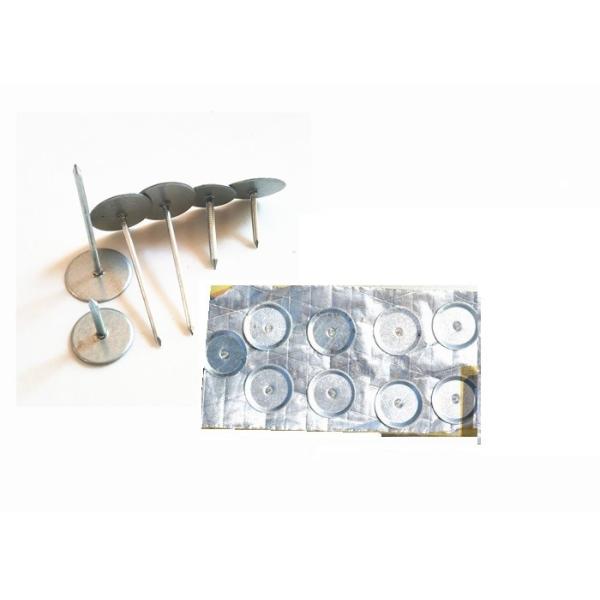

Install of Galvanized Steel Cupped Head Stud Welding Pins

Cupped Head Insulation Pins simplify the permanent installation of "Duct Liner" or other insulation materials

to duct work or to other heating, ventilating or air conditioning sheet metal configurations and housings.

A fabricated part made up of a weld pin and a staked on retaining washer. Variations of material are available.

This product is usually applied with a capacitor discharge stud welder. Used for securing insulation.

Galvanized Steel Cupped Head Stud Welding Pins for Duct Liner 30mm 38mm

Galvanized Steel Cupped Head Stud Welding Pins for Duct Liner 30mm 38mm

Galvanized Steel Cupped Head Stud Welding Pins for Duct Liner 30mm 38mm
