Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation
Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation
Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation
Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation
Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation
Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation
Specifications
Brand Name :
HUIHAO
Model Number :
Capacitor Discharge Weld Pins
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union , paypal
Supply Ability :
500000pcs per 20 days
Delivery Time :
5-8 work days
Packaging Details :
Capacitor Discharge Weld Pins1.500pcs per bags, 10 bags per carton. if the length too long, we will be according your requirements to pack.
Product name :
Capacitor Discharge Weld Pins
Pin diameter :
1mm,1.5mm,2mm,2.74mm,3.0mm,3.4mm,4mm,,5mm
material :
Mild steel ,stainless steel ,aluminum alloy
type :
soft steel nails
length :
10mm-240mm
Washer type :
dome caps
OEM/ODM :
Support
Service :
door to door service
Description

Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation

Details of Copper Plated Capacitor Discharge (CD)Stud Welding Pins

Materal: mild steel,302HQ stainless steel and aluminum

Plating:mild steel pins are copper plated

washers:various types of steel, stainless steel and aluminum self locking washers

standard nail point is used for most applications, nut also available

The Capacitor Discharge Weld Pins is a Low Carbon Steel, Stainless Steel or Aluminum weld pin

that is ideal to apply with pin welding or stud welding equipment. Manufactured with a standard

capacitor discharge weld tip and flange, the Capacitor Discharge Weld Pins is popularly used as

an insulation fastener, in combination with self locking washers(or “speed clips”) to secure

insulating material.

We recommend Capacitor Discharge Pins for welding to clean surfaces. For difficult surfaces the

“Power Base” Weld Pin is designed to weld through paint and rust to eliminate grinding of the base

metal. Both are available in various diameters and lengths.

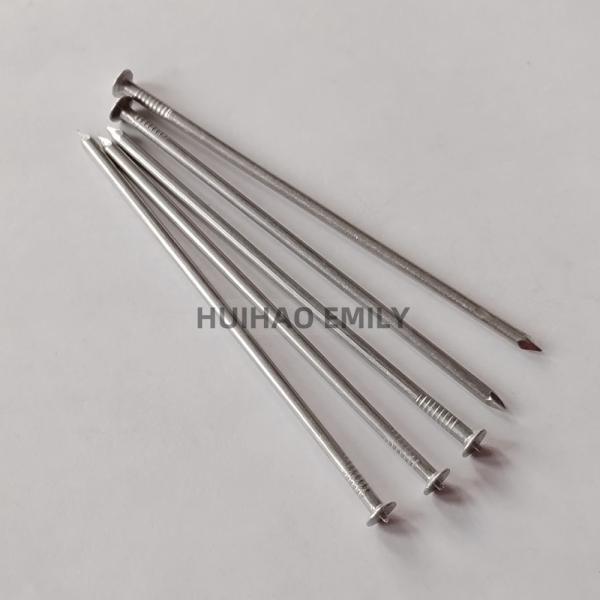

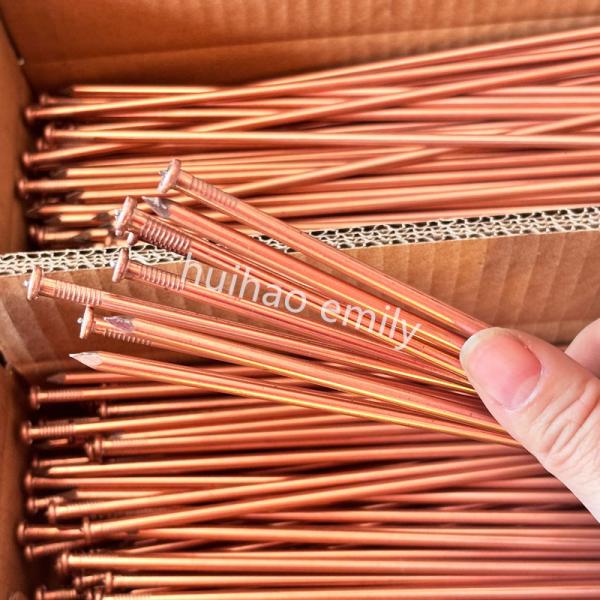

Pic of Copper Plated Capacitor Discharge (CD)Stud Welding Pins

Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation

Specification of Copper Plated Capacitor Discharge (CD)Stud Welding Pins

WELD PIN

SIZE

D

STEEL FD

ALUM. FD

14 GA

.080

.160

---

12 GA

.105

.180

.230

10 GA

.135

.195

.250

9 GA

.148

.230

---

MATERIAL

LOW CARBON STEEL

STAINLESS STEEL

ALUMINUM

C - 0.23% max

P - 0.04% max.

AISI grade - 302/304/305 std.
Other grades available upon request.

Alloy - 1100-H14 standard. Other alloys available upon request.

Mn - 0.90% max.

S - 0.05% max

MECHANICAL PROPERTIES

Tensile - 60,000 psi (min)

Values for various grades available upon request.

Values for various alloys available upon request.

Yield - 50,000 psi (min.)

Elongation - 20% (in two inches)

PLATING

Copper coating is standard on pins. Copper and other platings available upon customer request.

Does not apply to stainless.

ANNEALING

Pins are annealed where required

Does not apply

Capacitor Discharge Weld Pins Other specifications:

Length of this style pin should exceed the thickness of the insulation, in order to securely attach

the self-locking washer.

Nail point is standard - available with "blunt end" as special order.

Capacitor Discharge Weld Pins simplify the permanent attachment of insulation to just about any kind of

construction metal surface. They can be applied quickly and easily using standard CD or Arc stud welding

equipment.
Weld Pins are available in different styles to cover a wide variety of applications. Some factors to consider

regarding the pin style needed for your job would be the base metal type size and surface condition, and

also the welding equipment to be used.
Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation
Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation

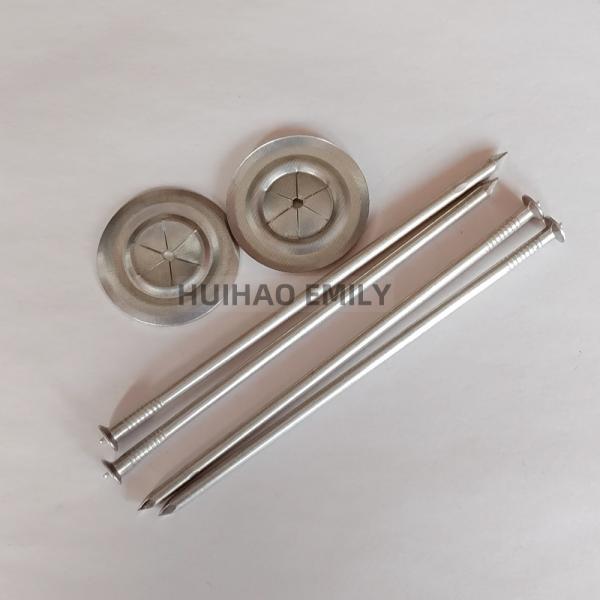

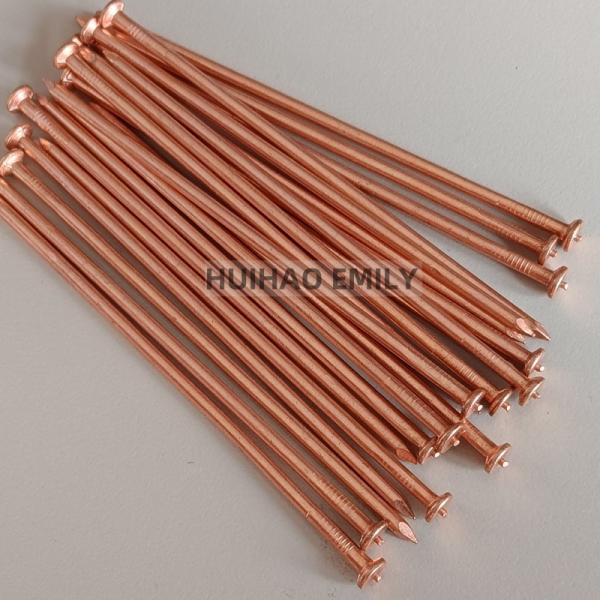

Pic of Copper Plated Capacitor Discharge (CD)Stud Welding Pins

>> Package

1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.

2. to be your requirements.

>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.

Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation
