Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins
Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins
Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins
Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins
Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins
Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins
Specifications
Brand Name :
huihao
Model Number :
self locking washers
Certification :
USO9001-2008
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union, paypal
Supply Ability :
50000pcs per day
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
500 or 1000 units per carton or plastic bag, and bing the carton on the pallets
Product name :
Self Locking Washers For Insulation Pins
application :
fixing insulation pins, anchors, hangers
Material :
mild steel, galvanized steel, stainless steel, aluminum etc.
size :
22mm-65mm
thickness :
0.4mm
color :
white or black
surface treatment :
color plating
min :
Negotiable
Description

Stainless Steel Or Galvanized Steel Self Locking Washers For Insulation Pins

>> >> >> Introduction To The Self Locking Washers For Insulation Pins

Self-locking washers are used in conjunction with weld pins, insulation anchors and lacing anchors to fasten

insulation in place. Simply press with self locking washer onto the pin up to the insulation until the desired

position is reached, then clip off or bend over the remaining portion of pin for a permanent parts

Both round or square self locking washers are available as a matter of design or application preference.

Washers are manufactured with a beveled edge or a flat edge.

>> >> >> Specification Of The Self Locking Washers

Photos Of The Self Locking Washers Details Of Self Locking Washers

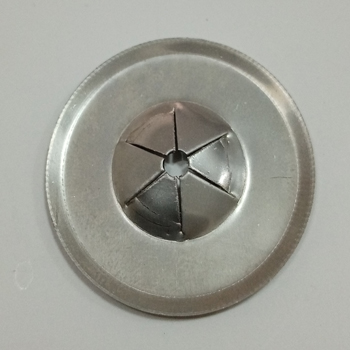

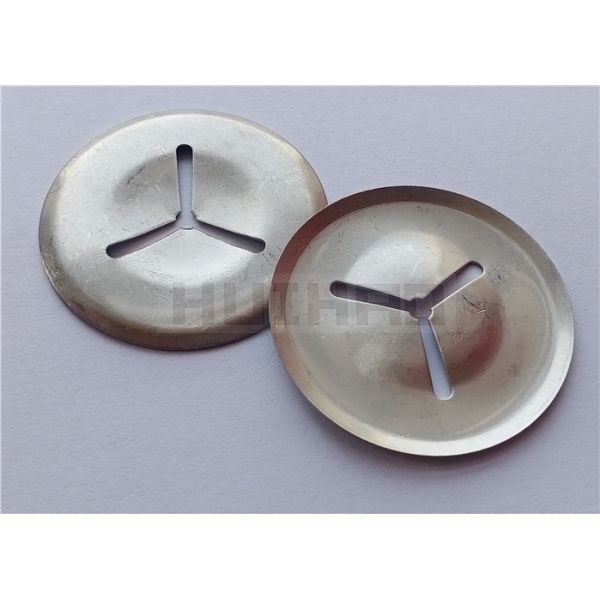

Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins

Material: Stainless Steel

Type: Round

Edge: Flat

Diameter: 1-3/4" / 44.75mm

Thickness: 28ga (0.4mm)

Center Hole:14ga, 12ga, 3mm, 10ga etc.

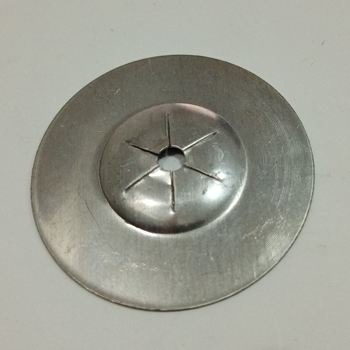

Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins

Material: Stainless Steel

Type: Round

Edge: Flat

Diameter: 1-3/4" / 44.75mm

Thickness: 28ga (0.4mm)

Center Hole: 14ga, 12ga, 3mm, 10ga etc.

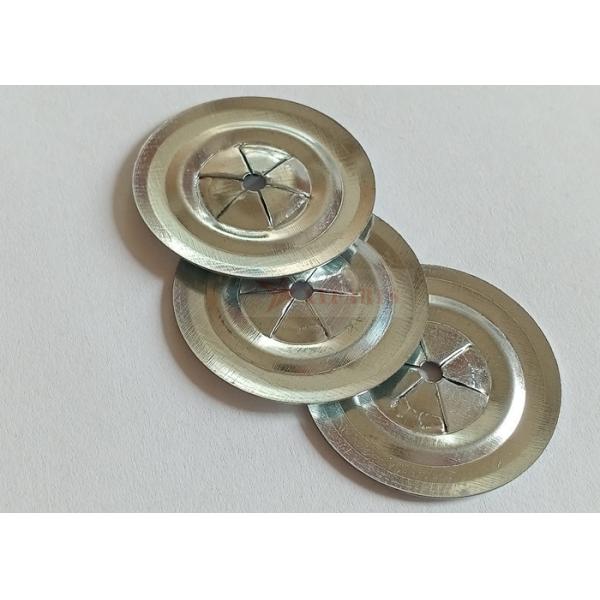

Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins

Material: Galvanized Steel

Type: Round

Edge: Beveled

Diameter: 1-1/2" / 38mm

Thickness: 28ga (0.4mm)

Center Hole: 14ga, 12ga, 3mm, 10ga
Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins

Material: Stainless Steel

Type: Round

Edge: Beveled

Diameter: 1-1/2" / 38mm

Thickness: 28ga (0.4mm)

Center Hole: 14ga, 12ga, 3mm, 10ga etc.

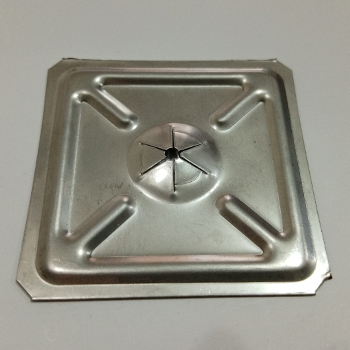

Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins

Material: Galvanized Steel

Type: Square

Edge: Beveled

Diameter: 1-1/2" / 38mm

Thickness: 28ga (0.4mm)

Center Hole: 14ga, 12ga, 3mm, 10ga etc.

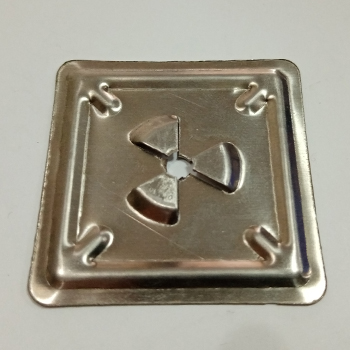

Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins

Material: Stainless Steel

Type: Square

Edge: Beveled

Diameter: 1-1/2" / 38mm

Thickness: 28ga (0.4mm)

Center Hole: 14ga, 12ga, 3mm, 10ga etc.
Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins

Material: Stainless Steel

Type: Square

Edge: Beveled

Diameter: 1-1/2" / 38mm

Thickness: 28ga (0.4mm)

Center Hole: 14ga, 12ga, 3mm, 10ga etc.
Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins

Material: Stainless Steel

Type: Square

Edge: Beveled

Diameter: 2” / 50mm

Thickness: 28ga (0.4mm)

Center Hole: 14ga, 12ga, 3mm, 10ga etc.
Stainless Or Galvanized Steel Self Locking Washer For Insulation Pins

Material: Stainless Steel

Type: Square

Edge: Beveled

Diameter: 2-1/2" / 63.5mm

Thickness: 28ga (0.4mm)

Center Hole: 14ga, 12ga, 3mm, 10ga etc.

>> >> >> Features of Insulation Self Locking Washers

  • Internal locking piece, rustproof and waterproof, high hardness, not easy to deform
  • Smooth surface without burrs
  • Self-locking function, does not fall off

>> >> >> Package:

PP bag + paper carton + wood pallet

100 pcs or 500 pcs or 1000 pcs per PP bag

>> >> >> Delivery:

Sample;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
