Specifications
Brand Name :
HUIHAO
Model Number :
Capacitor Discharge (CD) Weld pins
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union , paypal
Supply Ability :
100000pcs per 20 days
Delivery Time :
5-8 work days
Packaging Details :
50pcs per cases,6 small cases in a box 48 boxes on a pallet
Product name :
Stainless Steel Flanged Capacitor Discharge (CD) Stud Weld Pins
Material :
mild steel or stainless steel or aluminum or brass
Surface finish :
copper plated
Size :
3mm-10mm
name :
Stud Welding Pins
pass :
ISO
Description

Stainless Steel Flanged Capacitor Discharge (CD) Weld Pins

Introduction & Specifications

1) Capacitor Discharge weld pins are designed to be welded to thin gauge sheet material

using tip ignition according to the capacitors discharge welding process.

2) Capacitor Discharge weld pins are available in many different sizes, from a pin diameter

of a 3 mm to 10mm.

3) Standard material are: Low Carbon Copper Flashed Steel, Stainless Steel, Aluminum Alloy,

and Brass.

4) Other grades, i.e. AISI 316 (A4), AISI 310 are available on request.

5) The flange is designed according to EN ISO 13918.

6) Pins made of steel 4.8 are protected against corrosion by copper coating.

(Thickness : 3 to 5 µm)

Stainless Steel Flanged 10mm Stud Welding Pins Capacitor Discharge Cd Long Life D A B L Material
3mm 4.5-5.3mm 0.9mm 6mm 8mm 10mm 12mm 16mm 20mm 25mm 30mm 40mm 50mm Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass
4mm 5.5-6.3mm 0.9mm 6mm 8mm 10mm 12mm 16mm 20mm 25mm 30mm 35mm 40mm 50mm Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass
5mm 7.5-8.3mm 0.9mm 6mm 8mm 10mm 12mm 16mm 20mm 25mm 30mm 35mm 40mm 50mm Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass
6mm 8.5-9.3mm 0.9mm 10mm 12mm 16mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 60mm 70mm 75mm Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass
8mm 9.5-10.3mm 1.0mm 10mm 12mm 16mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 60mm 70mm 75mm Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass
10mm 11.3-12.3mm 1.0mm 10mm 12mm 16mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 60mm 70mm 75mm Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass

MATERIAL MILD STEEL STAINLESS STEEL ALUMINUM BRASS
C - 0.23% max.
P - 0.04% max.
Mn - 0.90% max.
S - 0.05% max.		 AISI Grade: 302/304/305 Standard
Other grades are available. 		Alloy 1100 & 5000 Series
Other alloys available upon request		 Alloy (lead free) 70 - 30 std.
Other alloys available upon request
MECHANICAL PROPERTIES Tensile- 60,000 psi (min.)
Yield - 50,000 psi (min.)		 Tensile - 85,000 psi (min.)
Yield - 40,000 psi (min.)		 Tensile- 42,000 psi (min.) 5000 series
Yield - 30,000 psi (min.) 5000 series		 Tensile - 70,000 psi (min.)
Yield - 50,000 psi (min.)
PLATING Copper plating is standard Does not apply to Stainless
ANNEALING Studs are annealed where required Studs are annealed where required

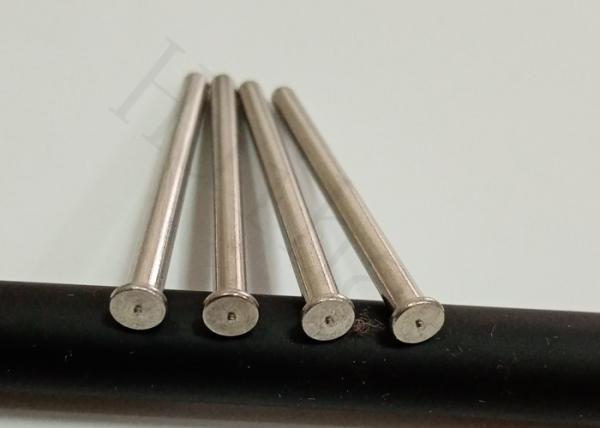

Detailed Image Of The Flanged Capacitor Discharge (CD) Weld Pins

Stainless Steel Flanged 10mm Stud Welding Pins Capacitor Discharge Cd Long Life

Package And Delivery

Packing:

50pcs per cases,

6 small cases in a box,

48 boxes on a pallet.

Delivery:

Sample or small order;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
