Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder
Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder
Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder
Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder
Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder
Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder
Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder
Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder
Specifications
Brand Name :
no brand
Model Number :
AUCUSTOM-2500
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 sets
Price :
USD600-USD860/SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500SETS PER MONTH
Delivery Time :
7 WORK DAYS
Packaging Details :
EXPORT STANDARD WOODEN BOX
name :
Double Guns Welder
size :
420X230X270MM
voltage :
ac220V 50HZ
application :
duct weld pins
PROTECT GRATE :
IP21S
weld speeds :
20-30 PCS /MIN
output voltage :
DC36-95V
Charging voltage :
30-200
Description

Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Gun Welder

Specifications of Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

voltage ac220V 50HZ
Charging voltage 30-200
Equipment power 450W
Capacitance 94000UF
PROTECT GRATE IP21S
SIZE 420X230X270MM
WEIGHT <19KGS
Capacitor Set to Bear Electric Pressure <DC95V
output voltage DC36-95V
NAIL LENGTH RANGE 5MM-270MM
WELDING SPEED 20-30 PCS /MIN
POWER TYPE Capacitance Energy Storage

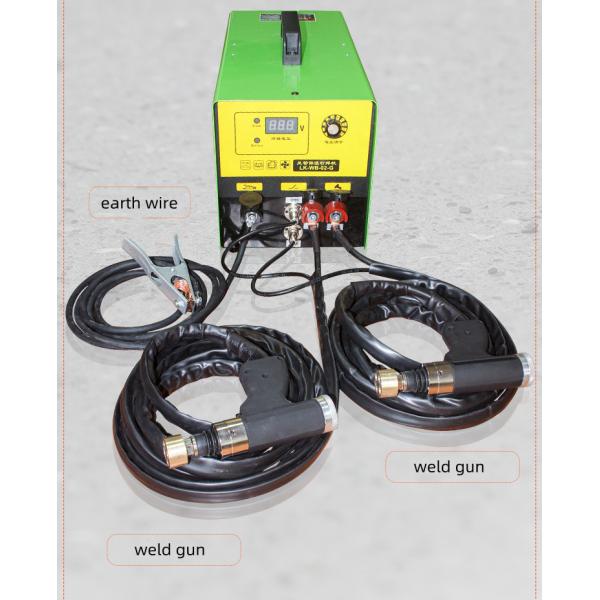

Images details of Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns WelderAir Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

Details of Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

  • The welding gun has 1 second back pressure time during operation.

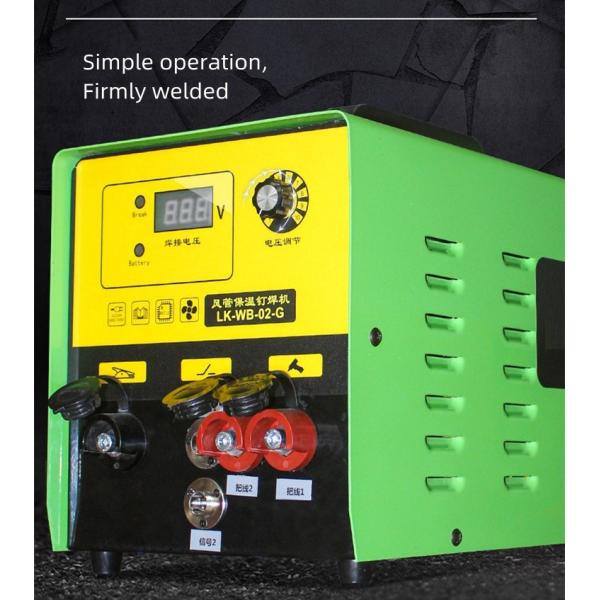

  • Knob adjustment, high-definition digital display, simple fabrication, improved efficiency and more firm welding
  • Metal shell, plastic spraying process, dustproof and waterproof.
  • Inclined air outlet design and waterproof and dustproof cover design of the interface effectively prevent damage and corrosion of internal components

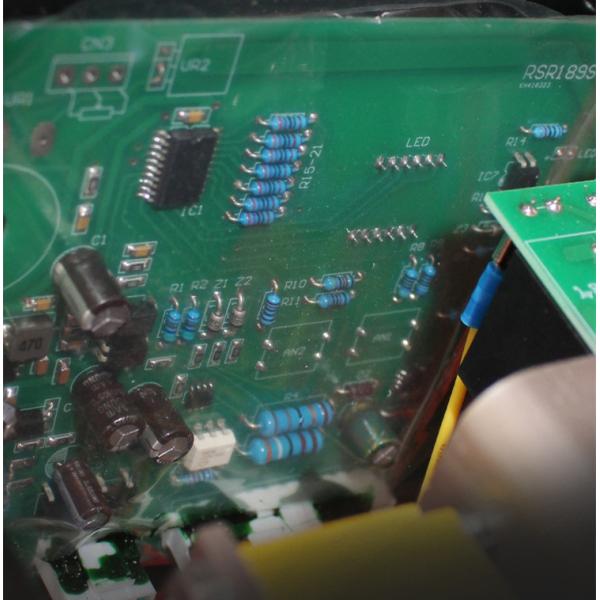

Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder DIGITAL CONTROL IS MORE EFFICIENT Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

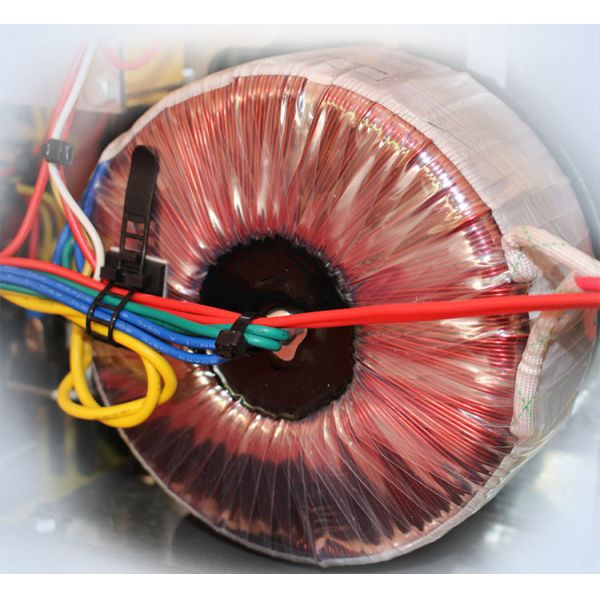

Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder All copper ring transformer
High temperature resistant copper wire
Non burning machine with temperature control protection

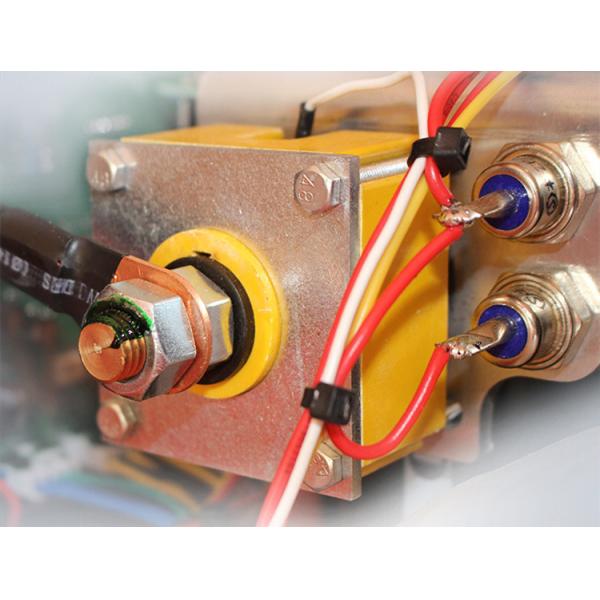

Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder Flat thyristor
Greatly improve welding performance

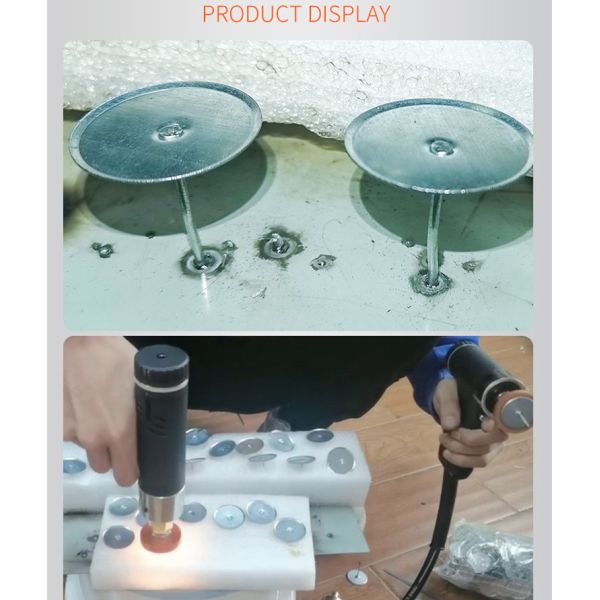

Applications of Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

Name CD Weld Pins For Insulation
Pin Material Low carbon steel or stainless steel
Pin Surface Finish galvanized is standard, copper plating is available upon special request.
Head Material Low carbon steel or stainless steel
Head Surface Finish galvanized is standard
Head Edge

Beveled edge washer to prevent cutting of insulation material.

Flat edge washer style also standard.
Head Diameter 1" (25mm), 1-1/2" (38mm), 1-3/16" (30mm)
Head Thickness 0.4mm or 0.5mm
Pin Diameter 0.135" (3.4mm), 0.106"(2.7mm), 0.08"(2.0mm)
Pin Length 3/8” 7/8” 1” 1-1/8” 1-3/8” 1-1/2” 1-7/8” 2” 3” 4” etc.
Application Duct insulation, metal building insulation

Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder
