Copper Plated Mild Steel Cuphead Weld Pins For Insulation 2.7mm
Copper Plated Mild Steel Cuphead Weld Pins For Insulation 2.7mm
Copper Plated Mild Steel Cuphead Weld Pins For Insulation 2.7mm
Copper Plated Mild Steel Cuphead Weld Pins For Insulation 2.7mm
Copper Plated Mild Steel Cuphead Weld Pins For Insulation 2.7mm
Copper Plated Mild Steel Cuphead Weld Pins For Insulation 2.7mm
Specifications
Brand Name :
huihao
Model Number :
Cup Head Pins For Insulation
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union, paypal
Supply Ability :
5000000pcs per 30 days
Delivery Time :
5-8 work days
Packaging Details :
1. 1000pcs per carton, 64 cartons per pallet. 2. to be your requirements.
Product name :
Copper Plated Mild Steel Cup Head Pins For Insulation 2.7 mm
brand :
Huihao Custom
material :
Low carbon steel or stainless steel
pin dia :
2.7mm
pin surface :
copper plated
base dia :
1"
base surface :
galvanized
length :
as your request
Description

Copper Plated Mild Steel Cup Head Pins For Insulation 2.7 mm

Quick Details Of The Cup Head Pins For Insulation

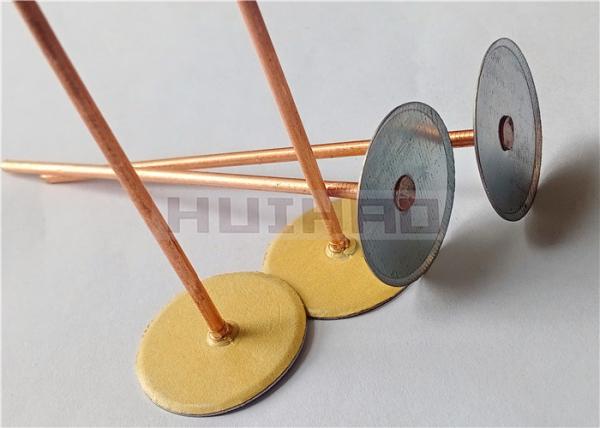

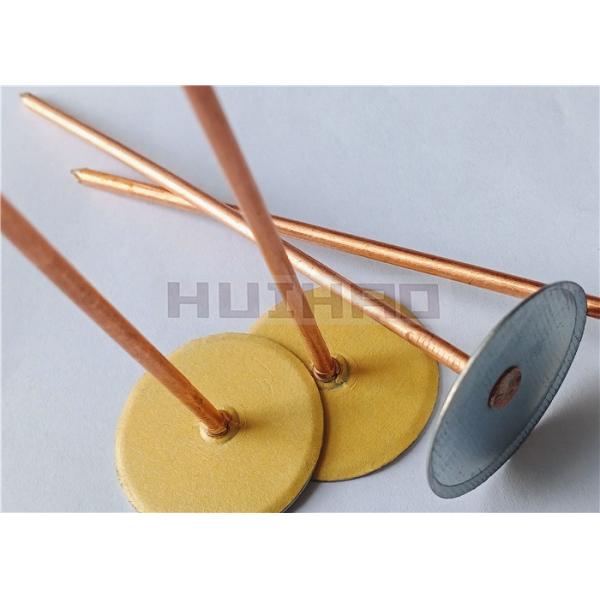

Cup head pin is made of a washer assembled with a pin, they are used to fastening insulation

materials onto metal sheet or ohter metal surface. The pins are used with a Capacitor Discharge

Stud Welding Machine.

Copper Plated Mild Steel Cuphead Weld Pins For Insulation 2.7mm

Item: Cup Head Pins For Insulation

Material: Mild Steel

Surface Finish:

Galvanized for the washer

Copper coating for the pin

Head Size: 30mm

Head Thickness: 0.4mm

Pin Diameter: 2.7mm

Pin Length: as your request
Copper Plated Mild Steel Cuphead Weld Pins For Insulation 2.7mm

Description Of The CD Weld Pins For Insulation

Name CD Weld Pins For Insulation
Pin Material Low carbon steel or stainless steel
Pin Surface Finish galvanized is standard, copper plating is available upon special request.
Head Material Low carbon steel or stainless steel
Head Surface Finish galvanized is standard
Head Edge

Beveled edge washer to prevent cutting of insulation material.

Flat edge washer style also standard.
Head Diameter 1" (25mm), 1-1/2" (38mm), 1-3/16" (30mm)
Head Thickness 0.4mm or 0.5mm
Pin Diameter 0.135" (3.4mm), 0.106"(2.7mm), 0.08"(2.0mm)
Pin Length 3/8” 7/8” 1” 1-1/8” 1-3/8” 1-1/2” 1-7/8” 2” 3” 4” etc.
Application Duct insulation, metal building insulation
Copper Plated Mild Steel Cuphead Weld Pins For Insulation 2.7mm

Application Of The Cup Head Pins For Insulation

When the insulation material is ready in place, weld the cup head pins directly through the insulation to the sheet metal, then the insulation work is finished, so the cup head pins is a labor-saving insulation fastener, it is widely accepted in insulation markets for use in duct work in commercial, residential and industrial buildings.
Copper Plated Mild Steel Cuphead Weld Pins For Insulation 2.7mm Copper Plated Mild Steel Cuphead Weld Pins For Insulation 2.7mm

FAQ Of The Cup Head Weld Pins

1. Are you manufacture or trader?

  • We are the manufacture and we sell what we make.

2. Do you support product customization?

  • Yes, the material, the size, the length all could be customizied according to your request.

3. Can you accept small orders?

  • Yes, for common size, we could accept small orders.

4. Can i get samples?

  • Yes, for common size, samples for quality confirm is supported in our company.

5. What is your advantages for the cup head weld pins?

  • Competitive price: we sale what we manufacture.
  • Excellent quality: we have rich experience, our products are in line with international standard.
  • Good after-sale service: we offer good after-sale service for each order.
  • Our cup head weld pins are consist in price, quality and delivery service.

6. What's the package for the cup head weld pins?

  • 1000pcs per carton, 64 cartons per pallet.
  • to be your requirements.
