Specifications
Brand Name :
HUIHAO
Model Number :
Anti Clogging Self Cleaning Screen Mesh
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
10 pieces
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
700 pieces per 10 days
Delivery Time :
1-8 work days
Packaging Details :
packed in carton, then into wooden case; also can be customized according to your requirement
Material :
65MN steel
usage :
mine sieving
Type :
Anti Clogging Self Cleaning Screen Mesh
Filter Rating :
Triple Shoot
length :
0.5-4mm
width :
1800mm
Description

High Carbon Steel Anti Clogging Self Cleaning Screen Mesh For Mine Sieving

Production details of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh

High Carbon Steel Anti Clogging Self Cleaning Screen Mesh is made of mn steel crimped wire.

High carbon steel:

Manganese steel,high carbon steel 65Mn

Wire diameter

1.5mm-5mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .

Aperture/Opening

2mm to 100mm,tolerance +-3%

specification of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh

some parts of specification as reference, at same time we wab be according your requirements to custom.

aperture (mm)
wire diameter(mm)
kg/m2
screening area%
1.50
1.20-1.60
4.7-6.8
31-38
2.00
1.20-1.60
4.3-6.2
37-43
3.00
1.20-2.00
3.6-7.8
40-52
4.00
1.20-2.00
3.1-6.9
45-58
5.00
1.50-2.80
2.7-11
41-65
6.00
1.50-2.80
3.4-9
48-64
8.00
2.00-3.15
4.5-9.1
53-63
10.00
2.00-3.15
3.7-8.0
59-69
14.00
2.00-4.00
3.0-9.6
61-76
19.00
2.80-4.00
4.2-7.9
68-76
22.00
2.50-4.00
3.0-7.1
72-80
25.00
4.00-5.00
6.4-9.3
70-74
26.00
4.00-5.00
6.10-9.20
70-75
28.00
3.00-4.00
3.5-5.8
77-82
30.00
3.00-4.00
3.3-5.6
78-83
32.00
4.00
5.30
79
35.00
4.00-5.00
4.8-7.3
77-81
40.00
4.00
4.00
84

weave type of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh

weave type drawing show

weave type details of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh

High Carbon Steel Anti Clogging Self Cleaning Screen Mesh For Mine Sieving

Tri-Loc of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh

Long openings will keep sticky or wet material flowing freely. Weave holds wires securely yet permits slight vibration to keep openings clear. This specification is often called "Triple Shoot".

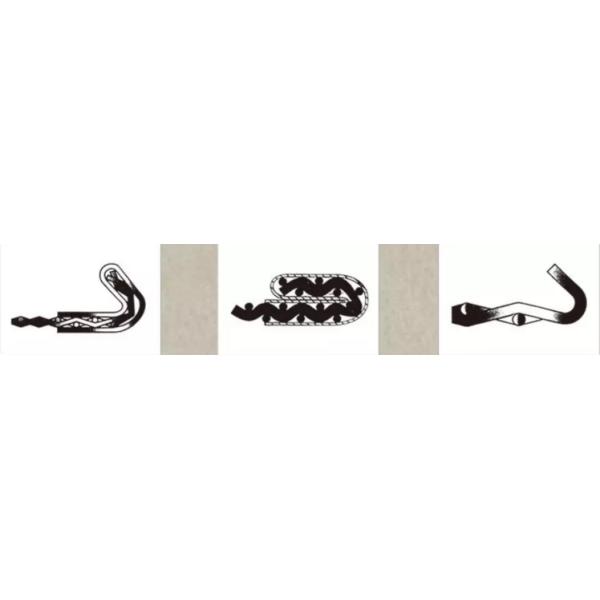

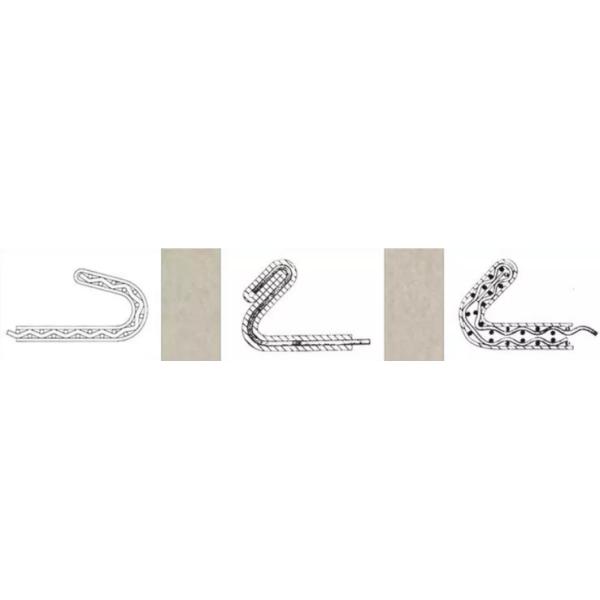

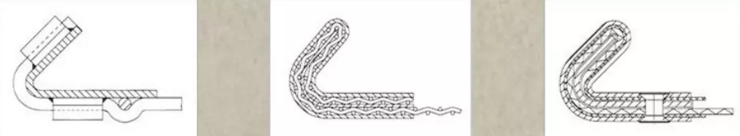

hook type of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh

High Carbon Steel Anti Clogging Self Cleaning Screen Mesh For Mine Sieving
High Carbon Steel Anti Clogging Self Cleaning Screen Mesh For Mine Sieving
High Carbon Steel Anti Clogging Self Cleaning Screen Mesh For Mine Sieving
