14Ga Stainless Steel 304 Lacing Anchor Hooks For Thermal Insulation Jackets

14Ga Stainless Steel 304 Lacing Anchor Hooks Product introduce :

• 1. Lacing Anchor is a fabricated metal anchor consisting of a pin and tabbed ,or hooked washer .
• 2. Stainless steel is a popular material while some Lacing Anchors are made in Mild steel .
• 3. 2-1/2" stainless steel lacing anchors are primarily used as the means of fastening lagging

exhaust systems (tie wire as the lacing material).

• 4.Lacing anchors can be used to add additional support to existing lagging, or used with other

raw insulation material.

• 5.Lacing anchors are manufactured in nail point configuration, and are 12 gauge in diameter.
• 6.to lagging it is recommended that 12 gauge self-locking washers- oblong or round- be used.

Features of slim lacing anchor
pins material is annealed steel wire, easy for bending and cutting.
zinc coated/copper plated surface treatment for rustproof
smooth surface ,No burry
base washer material is hardness material, not be deformed

Spefication Of 14Ga Stainless Steel 304 Lacing Anchor Hooks :

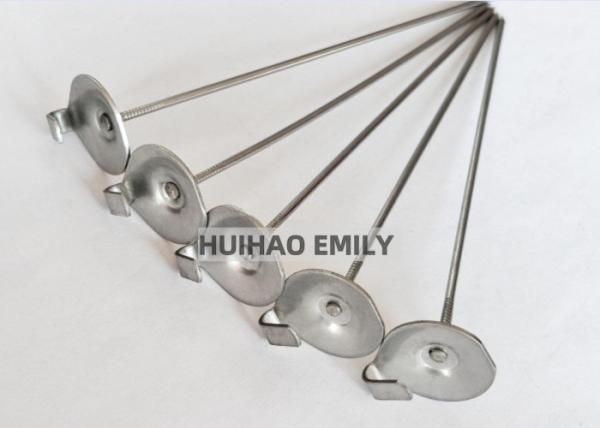

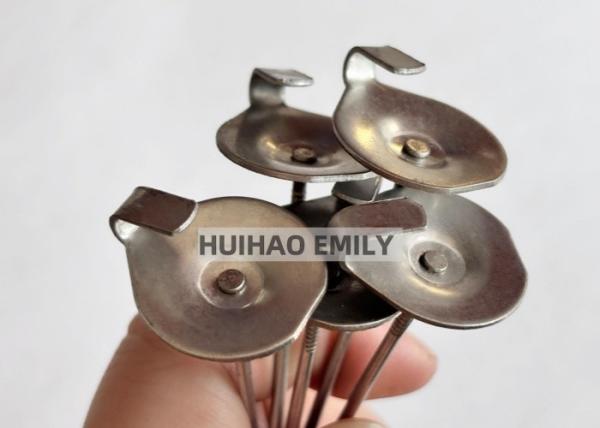

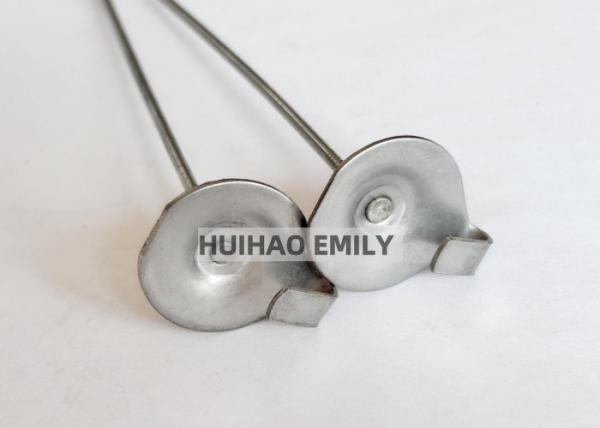

Pic Of 14Ga Stainless Steel 304 Lacing Anchor Hooks :

How to install Metal lacing anchor :

1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.

How to choose suitable pin length for fixing insulation material ?

=38mm insulation pin fixing for 15mm-25mm insulation materials

=63mm insulation pin fixing for 25mm-45mm insulation materials

=90mm insulation pin fixing for 45mm-70mm insulation materials

=110mm insulation pin fixing for 40mm--70mm insulation board

=145mm insulation anchors for 75mm-105mm insulation slabs

=170mm fireproof fixing for 105-130mm insulation panels

=200mm metal fasteners for 135mm-160mm insulation boards

Other accessories for insulation removable covers :

Lacing anchors Material :stainless steel 304/316/316L Pin diameter :2mm,2.7mm Pin length :2-1/2 inch, 4-1/2inch or to be request Self locking washer :25mm,30mm

Quilting pins Material :stainless steel 304/316/316L Pin diameter :2mm,2.7mm Pin length :2-1/2 inch, 4-1/2inch or to be request Self locking washer :25mm,30mm

2 holes Lacing hooks Material :stainless steel 304/316/316L Size:22mm Thickness :1mm is in common,other to be request Surface :NO&AB or without

Single holes Lacing hooks Material :stainless steel 304/316/316L Size:22mm Thickness :1mm is in common,other to be request Surface :NO&AB or without

Lacing washers Material :stainless steel 304/316/316L Size:25mm Thickness :1mm is in common,other to be request

Package Of 14Ga Stainless Steel 304 Lacing Anchor Hooks :

The package of lacing hooks washers : >> Package 1. 500 pcs/800pcs/1000 pcs per carton. 64 cartons per pallet. 2. to be your requirements. >>> Delivery Sample: DHL/EMS/UPS/TNT/EXPRESS Large Order: we recommend you by SEA ,or by AIR if in an emergency.
