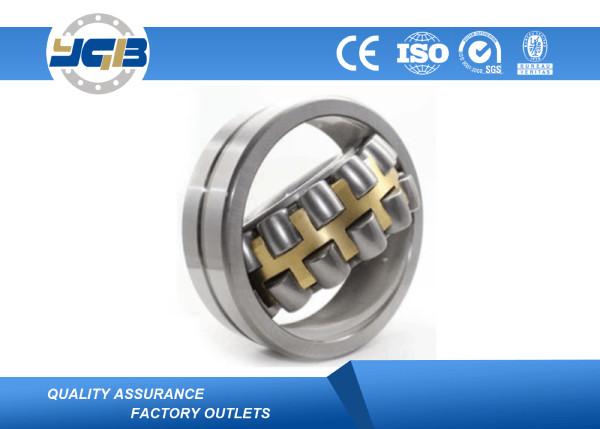

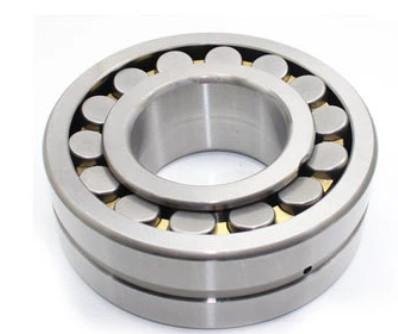

ISO Spherical Roller Bearing 23140CCW33 23140CCK/W33 24140CC/W33 24140CCK30/W33
ISO Spherical Roller Bearing 23140CCW33 23140CCK/W33 24140CC/W33 24140CCK30/W33
ISO Spherical Roller Bearing 23140CCW33 23140CCK/W33 24140CC/W33 24140CCK30/W33
ISO Spherical Roller Bearing 23140CCW33 23140CCK/W33 24140CC/W33 24140CCK30/W33
Specifications
Brand Name :
SKF, TNT, YGB, OEM
Model Number :
23140
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T or LC
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden，in case for outer packing. All it's standarded
Product name :
Self aligning mounted ball bearing
Number of row :
Double Row
Precision rating :
P0 P1 P4 P5 P6
Seals type :
OPEN
Application :
Low Noise Motors
Description

Spherical Roller Bearing 23140CCW33 23140CCK/W33 24140CC/W33 24140CCK30/W33

Product description:

Suffix:
CA: Integral brass cage, double row symmetrical roller, inner ring ride
CC: Two window-type steel cages, double row symmetrical roller, inner ring ride
MA: Machined brass cage, outer ring ride
MB: Machined brass cage, inner ring ride

K: Tapered bore, taper 1:12
K30: Tapered bore, taper 1:30
S: With a groove, lubrication holes in out rings.
W: Without annular groove and lubrication holes in outer ring
W20: Three lubrication holes in outer ring
W26: Six lubrication holes in inner ring
W33: Annular groove and three lubrication holes in outer ring
W77: Plugged W33 lubrication holes

Product name
Spherical Roller Bearing 23140CCW33 23140CCK/W33 24140CC/W33 24140CCK30/W33
Material
Chrome Steel GCr15
Seal type
open, zz, 2rs
Cage
Steel Cage
Number Of Row
Double Row
Certificate
SGS/ISO9001
Ball Bearings Feature
1 Long life span
2 High rotating speed&Low noise
Bearing Package
Pallet,wooden case,commercial packaging or as customers' requirement.
Service
OEM service provided
Delivery time
3-10 days depends on quantity needed

Product Description

In a self-aligning bearing, the inner ring has two raceways and the outer ring has a single spherical raceway with its center of curvature coincident with the bearing axis. Self-Aligning Double Row Ball Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection. The concave raceway of the outer ring in combination with two rows of balls operate over a wide range of contact angles.

The drawing:

ISO Spherical Roller Bearing 23140CCW33 23140CCK/W33 24140CC/W33 24140CCK30/W33

ISO Spherical Roller Bearing 23140CCW33 23140CCK/W33 24140CC/W33 24140CCK30/W33

Spherical Roller Bearing Information:

(Universal Series 12xx, 13xx, 22xx, 23xx)

1. Roller bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads.
These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered.
2. All roller bearings are open, shielded, or sealed.
3. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use.
4. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan.

5. This structure of type is Cylindrical and tapered holes.

Related model number:

model list
d(mm)
D(mm)
B(mm)
Cr( N)
C0r(N)
m(kg)
22308
40
90
33
73500
90500
1.041
22309
45
100
36
108000
140000
1.387
22310
50
110
40
140800
170000
1.827
22311
55
120
43
170500
198000
2.299
22312
60
130
46
184800
225000
2.881
22313
65
140
48
206800
252000
3.494
22314
70
150
51
253000
315000
4.212
22315
75
160
55
288200
388000
5.225
22316
80
170
58
316800
405000
6.296
22317
85
180
60
338800
440000
7.36
22318
90
190
64
401500
542000
8.878
22319
95
200
67
423500
570000
10.38
22320
100
215
73
495000
668000
12.941
22322
110
240
80
599500
832000
17.85
22324
120
260
86
709500
992000
22.378
22326
130
280
93
794200
1140000
28.13
22328
140
300
102
907500
1340000
34.84
22330
150
320
108
1230000
1600000
43.6
22332
160
340
114
1380000
1790000
51.9
22334
170
360
120
1420000
2060000
60.75
22336
180
380
126
1470000
2270000
68.08

Advantage:

(1)High-Quality Steel-Ultra clean steel to extend bearing life by up to 80%.

(2)Advanced Grease Technology

(3)High-Grade Balls - Quiet and smooth operation even at high speed.

(4)Super Finished Raceways - Specially honed to minimize noise and improve lubricant distribution and life.

Application:

Suitable for precision instruments, low noise motors, automobiles, motorcycles, and general machinery, etc. It is the most widely used type of bearing in the machinery industry.

Contact us:

YGB Bearing Co., Ltd is an integrated and modern enterprise engaged in the R&D, manufacture, and sales of high-quality bearings. We are the Bearing experts serving the OEM throughout China as well as the international markets, such as deep groove ball bearing, spherical roller bearing and tapered roller bearing as well as other kinds of bearings.

If you need to be free to contact us.
