Double Shields Stainless Steel Needle Roller Bearing NA6916 Drawn Cup Bearing
Double Shields Stainless Steel Needle Roller Bearing NA6916 Drawn Cup Bearing
Double Shields Stainless Steel Needle Roller Bearing NA6916 Drawn Cup Bearing
Double Shields Stainless Steel Needle Roller Bearing NA6916 Drawn Cup Bearing
Double Shields Stainless Steel Needle Roller Bearing NA6916 Drawn Cup Bearing
Double Shields Stainless Steel Needle Roller Bearing NA6916 Drawn Cup Bearing
Double Shields Stainless Steel Needle Roller Bearing NA6916 Drawn Cup Bearing
Double Shields Stainless Steel Needle Roller Bearing NA6916 Drawn Cup Bearing
Specifications
Brand Name :
YGB,OEM,SKF,NTN
Model Number :
NA6916
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T or LC
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Model :
NA6916
Size(mm) :
80 X 110 X 54 MM
Port :
Shanghai
Seal type :
double shields
Weight(kg) :
1.46
Limiting speed :
5000 r/min
Material :
GCr15/AISI52100/100Cr6
Description

Double Shields Stainless Steel Needle Bearings NA6916 80 X 110 X 54 MM Drawn Cup Bearing

Description:
.

Model NA6916
Bearing material GCr15/AISI52100/100Cr6
ID*OD*W (mm) 80 X 110 X 54 mm
Seal type double shields
Lead time Stock or 15-30days
Weight(kg) 1.46
Basic dynamic load ratings/C 134kN
Basic static load ratings/C0 315 kN
Limiting speed 5000 r/min
Clearance C2,C0,C3,C4,C5
Vibration Level V1, V2, V3, V4
Precision Rating P0,P6,P5,
MOQ No MOQ
Port Shanghai
Grease Mobil polyrex EM,Kyodo Yushi SRL
Payment terms T/T, L/C


Series Models:

Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Permissible Torque Md Limiting Speed Suitable Drawn Cup Bearings
Fw D C Rotating Shaft Min-1 RotatIng Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm rpm
3 HF0306KF 0.9 3 6.5 6 0.2 36000 7000 HK0306TN
4 HF0406KF -- 1 4 8 6 0.34 34000 8000 HK0408TN
HF0406KFR -- 1 4 8 6 0.1 34000 8000 HK0408TN
6 HF0608KF 2.8 6 10 8 1.5 20000 11000 HK0608
HF0612KF HF0612 3 6 10 12 1.76 23000 13000 HK0608
HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000 HK0608
HF061210 3.5 6 12 10 3 20000 13000 HK061208
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000 HK0808
HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000 HK0808
-- HF061210 3.2 8 12 10 3 16000 12000 HK0808
-- HF081410 3.6 8 14 10 4.6 15000 11000 HK081410
-- HF081610 4.1 8 16 10 5.5 15000 11000 HK081610
-- HF081412 4 8 14 12 5 16000 12000 HK081410
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000 HK1010
HF1012KFR HF1012R 4 10 14 12 1.5 14000 11000 HK1010
12 -- HF1216 11 12 18 16 12.2 11000 8000 HK1212
14 -- HF1416 13 14 20 16 17.3 9500 8000 HK1412
16 -- HF1616 14 16 22 16 20.5 8500 7500 HK1612
18 -- HF1816 16 18 24 16 24.1 7500 7500 HK1812
20 -- HF2016 17 20 26 16 28.5 7000 6500 HK2010
25 -- HF2520 30 25 32 20 66 5500 5500 HK2512
30 -- HF3020 36 30 37 20 90 4500 4500 HK3012
35 -- HF3520 40 35 42 20 121 3900 3900 HK3512

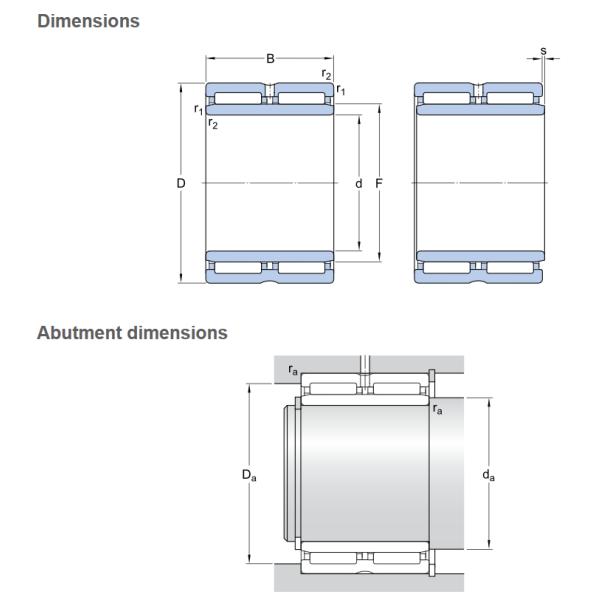

Drawing:

Double Shields Stainless Steel Needle Roller Bearing NA6916 Drawn Cup Bearing

QC:


We have a complete process for the production and quality assurance to make sure our products can meet your requirement. And our quality can compare with the most Chinese famous bearing manufacture. we have the same technology. Such as
1 . Assembly
2 . Windage test
3 . Cleaning
4 . Rotary test
5 . Greasing and gland
6 . Noise inspection
7 . Appearance inspection
8 . Rust prevention
9 . Product package

Our service:
Double Shields Stainless Steel Needle Roller Bearing NA6916 Drawn Cup Bearing

Payment
1: T/T: 30% as deposit and 70% balance after getting a copy of B/L.
2: L/C (cannot for branded bearings.)
3: Discuss together between buyer and supplier.
Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
