High Speed AXK Series Thrust Needle Roller Bearing 60x85x3mm AXK6085
High Speed AXK Series Thrust Needle Roller Bearing 60x85x3mm AXK6085
High Speed AXK Series Thrust Needle Roller Bearing 60x85x3mm AXK6085
High Speed AXK Series Thrust Needle Roller Bearing 60x85x3mm AXK6085
High Speed AXK Series Thrust Needle Roller Bearing 60x85x3mm AXK6085
High Speed AXK Series Thrust Needle Roller Bearing 60x85x3mm AXK6085
Specifications
Brand Name :
SKF , YGB , OEM
Model Number :
AXK6085
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
500
Price :
negotiation
Payment Terms :
T/T , L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1,000,000pcs per month
Delivery Time :
within 5- 15 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packinghttps://www.maoyt.com/index.php?r=product/edit&pid=12421533#label_name
Name :
AXK6085 Needle roller bearing
Structure :
Single Row Needle Roller
Material :
Chrome Steel
Seals Type :
Open
Number of Row :
Single row
Size :
60x85x3 mm
Virbration :
V1 V2 V3 V4
Clearance :
C0 , C2 , C3 , C4 , C5
Description

High Precision NKS32 Style Standard Needle Roller Bearings without Inner Ring

Description:

Product Name: AXK6085 needle roller bearing 6085 bearing
Basic dynamic load rating 37.5kN
Basic static load rating 232kN
Reference speed 2200 r/min
Limiting speed 4300 r/min
Material: Chrome steel
Certification: ISO9001: 2008
Feature: The thick outer ring provides maximum load capacity and shock resistance with a relatively small radial cross-section.

A needle roller bearing is a bearing that uses small cylindrical rollers.

The typical structure consists of a needle cage that orients and contains the needle rollers, the needle rollers themselves, and an outer race (sometimes the housing itself).

Radial needle bearings are cylindrical and use rollers parallel to the axis of the shaft. Thrust needle bearings are flat and use a radial pattern of needles.
Full complement bearings have solid inner and outer rings and rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity and are suitable for particularly compact designs.

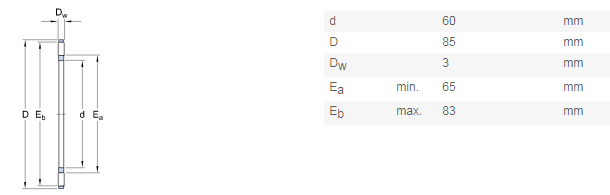

The Drawing:

High Speed AXK Series Thrust Needle Roller Bearing 60x85x3mm AXK6085

Aplication:

• Paper moving for copiers, fax machines, paper towel dispensers, etc.
• Exercise equipment
• Two-speed gearboxes
• Rack indexing drives
• Converters, non-return devices, and transcendental clutches.
• Fishing Reels, RC Cars, RC Helis, RC Engines

Related Products:

Shaft Diameter(mm) Bearing Type Boundary Dimensions(mm) Weight(g)
Current Type Original Type d D B
8 AXK0821 8 21 2 2
10 AXK1024 10 24 2 3
12 AXK1226 12 26 2 3
15 AXK1528 15 28 2 4
17 AXK1730 17 30 2 4
20 AXK2035 20 35 2 5
25 AXK2542 25 42 2 7
30 AXK3047 30 47 2 8
40 AXK4060+2AS 40 60 3 16
45 AXK4565 45 65 3 18
55 AXK5578 55 78 3 28
60 AXK6085 60 85 3 33
70 AXK7095 70 95 4 60
75 AXK75100 75 100 4 61
90 AXK90120 90 120 4 86
100 AXK100135 100 135 4 104
110 AXK110145 110 145 4 122
130 AXK130137 130 137 5
150 AXK150190 150 190 5 232
160 AXK160200 160 200 5 246
