NTN SKF Tapered Roller Bearings Single Row 30306 30 x 72 x 20.75 MM For Motors
NTN SKF Tapered Roller Bearings Single Row 30306 30 x 72 x 20.75 MM For Motors
NTN SKF Tapered Roller Bearings Single Row 30306 30 x 72 x 20.75 MM For Motors
NTN SKF Tapered Roller Bearings Single Row 30306 30 x 72 x 20.75 MM For Motors
NTN SKF Tapered Roller Bearings Single Row 30306 30 x 72 x 20.75 MM For Motors
NTN SKF Tapered Roller Bearings Single Row 30306 30 x 72 x 20.75 MM For Motors
Specifications
Brand Name :
YGB,OEM,SKF,NTN,FAG
Model Number :
30306
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T or LC
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Limiting speed :
10000 r/min
MOQ :
No MOQ
Model :
30306
Seal type :
double shields
Weight(kg) :
0.38
Number of row :
Single
Size :
30 x 72 x 20.75 mm
Payment terms :
T/T, L/C
Description

NTN SKF Tapered Roller Bearings Single Row 30306 30 x 72 x 20.75 MM For Motors

Description :

Model 30306
Bearing material GCr15/AISI52100/100Cr6
ID*OD*W (mm) 30 x 72 x 20.75 mm
Seal type double shields
Lead time Stock or 15-30days
Weight(kg) 0.28
Payment terms

T/T, L/C
Limiting speed 10000 r/min
Clearance C2,C0,C3,C4,C5
Vibration Level V1,V2,V3,V4
Precision Rating P0,P6,P5,
MOQ No MOQ
Port Shanghai
Grease Mobil polyrex EM,Kyodo Yushi SRL

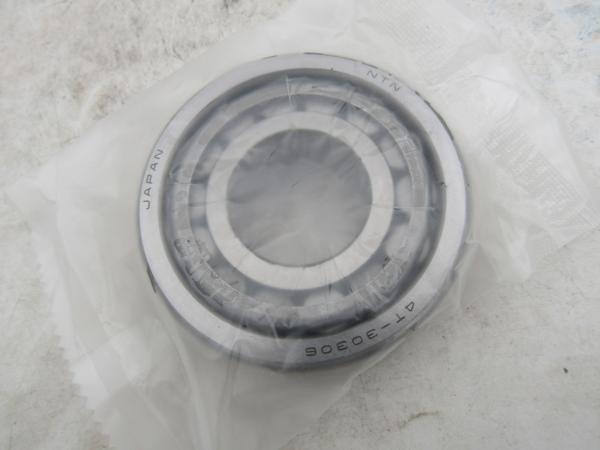

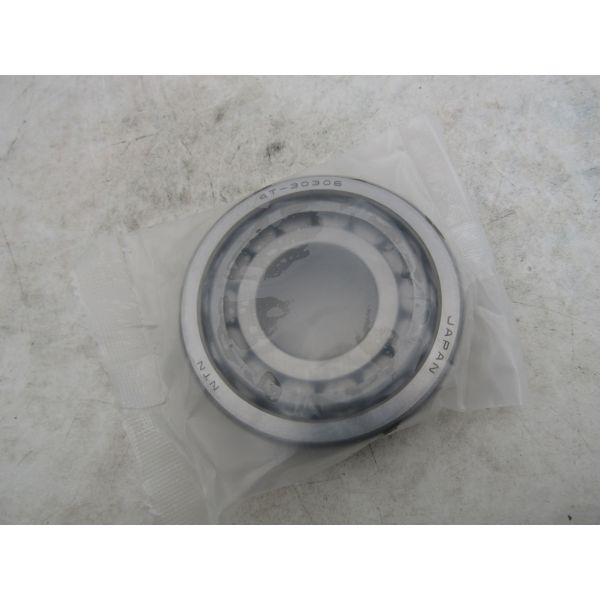

Photo:
NTN SKF Tapered Roller Bearings Single Row 30306 30 x 72 x 20.75 MM For Motors

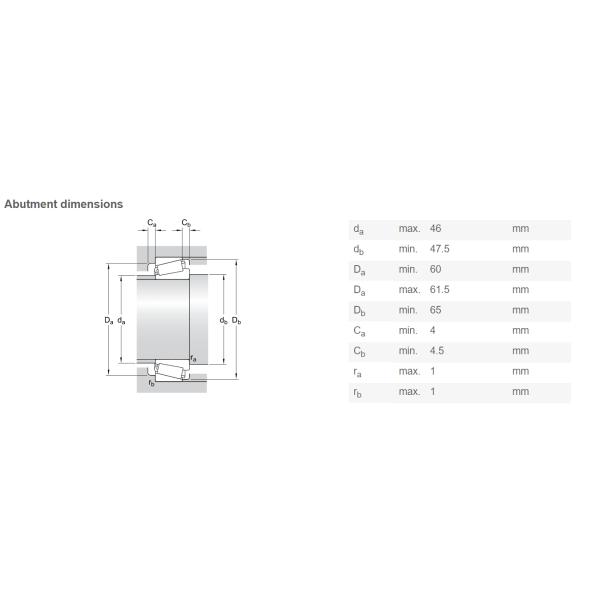

Drawing:
NTN SKF Tapered Roller Bearings Single Row 30306 30 x 72 x 20.75 MM For Motors

NTN SKF Tapered Roller Bearings Single Row 30306 30 x 72 x 20.75 MM For Motors


Features of single row taper roller bearings:


Tapered roller bearings have tapered inner and outer ring raceways and tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis (fig 1) to provide true rolling and low friction. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle (α). The size of the angle is indicated by the calculation factor e († product tables): the larger the value of e, the larger the contact angle. A single row tapered roller bearing is typically adjusted against a second tapered roller bearing.
Single row tapered roller bearings are separable (fig 2), i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).

Advantages:

1. Tapered Roller Bearings belong to separated bearing, constituted by inner ring, outer ring, rollers, and cage;

2. Tapered Roller Bearings Withstand huge radial load and axial load, pass one-way axial load only;

3. The single row tapered roller bearings are used commonly.

Our Main Products

Deep groove ball bearings
Cylindrical roller bearings
Needle roller bearings
Thrust ball bearings
Thrust roller bearings
Spherical roller bearings
Angular contact ball bearings

Advantages
1. high speed and high precision
2. long service lifetime
3. lowest noise and good performance


Payment
1: T/T: 30% as deposit and 70% balance after get copy of B/L.
2: L/C (cannot for branded bearings.)
3: Discuss together between buyer and supplier.

Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
