Replace KAYDON JA060CP0 Thin Section Ball Bearings Sealed 1/4 X 1/4
Replace KAYDON JA060CP0 Thin Section Ball Bearings Sealed 1/4 X 1/4
Replace KAYDON JA060CP0 Thin Section Ball Bearings Sealed 1/4 X 1/4
Replace KAYDON JA060CP0 Thin Section Ball Bearings Sealed 1/4 X 1/4
Specifications
Brand Name :
YGB,SKF,TNT, OEM
Model Number :
JA060CP0
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1000 pcs
Price :
negotiation
Payment Terms :
T/T , L/C
Supply Ability :
1,000,000pcs per month
Delivery Time :
within 5- 10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Name :
Sealed thin section Bearing
Type :
Deep groove ball bearings
Size （ inches ） :
6*6.5*0.25
Precision Rating :
P0 P6 P5 P4 P2
Cage :
Steel
Certificate :
ISO9001:2008
Service :
OEM Customized Services
Description

Replace KAYDON JA060CP0 Thin Section Ball Bearings Sealed 1/4" X 1/4"

Description :

Kaydon part number JA060CP0
Bore 6.000 inches
Outside dia. 6.500 inches
Width 0.25 inches
Land dia. L1 6.148 inches
Land dia. L2 6.356 inches
Dynamic Kaydon radial 720 lbs
Dynamic ISO radial 1,487 lbs
Static Radial 1,900 lbs
Limiting speeds 1,160 RPM
Torque max. no load 52 in-oz
Approx. weight

0.28 lbs

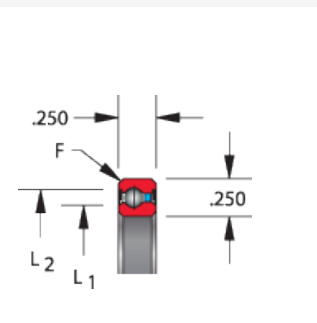

The drawing:

Replace KAYDON JA060CP0 Thin Section Ball Bearings Sealed 1/4

JSA SERIES:

SILVER THIN BEARINGS • JSA SERIES 1/4" x 1/4"
SILVER DIMENSION IN INCHES CAPACITIES IN POUNDS TYPE C TYPE X Torque Appx.
THIN Bore Outside Land Land TYPE C & X TYPE X Max Weight
PART NO. B Diam. Diam. Diam. Radial Thrust Moment Limiting Limiting No Load Pounds
& RFQ D L1 L2 (Lbs-in) Speeds Speeds (Oz-In)
Static Dyn Static Dyn Static Dyn (RPM) (RPM)
JSA020 2 2.5 2.148 2.356 684 326 1,712 793 770 361 Consult Consult 6 0.1
JSA025 2.5 3 2.648 2.856 832 360 2,095 912 1,158 509 Factory Factory 8 0.12
JSA030 3 3.5 3.148 3.356 992 413 2,475 1,010 1,604 662 12 0.14
JSA035 3.5 4 3.648 3.856 1,141 456 2,857 1,112 2,138 842 16 0.17
JSA040 4 4.5 4.148 4.356 1,292 481 3,223 1,214 2,740 1,031 20 0.19
JSA042 4.25 4.75 4.398 4.606 1,374 500 3,412 1,264 3,072 1,133 24 0.2
JSA045 4.5 5 4.648 4.856 1,446 524 3,602 1,312 3,423 1,244 28 0.21
JSA047 4.75 5.25 4.898 5.106 1,520 541 3,795 1,356 3,798 1,350 32 0.22
JSA050 5 5.5 5.148 5.356 1,591 562 3,982 1,405 4,182 1,464 36 0.23
JSA055 5.5 6 5.648 5.856 1,752 599 4,367 1,488 5,022 1,703 44 0.25
JSA060 6 6.5 6.148 6.356 1,903 636 4,747 1,578 5,931 1,964 52 0.28
JSA065 6.5 7 6.648 6.856 2,051 664 5,122 1,652 6,910 2,236 61 0.3

Sealed thin section bearings and thin-walled bearings are simple in structure and easy to use. It is mainly used to bear radial loads, but when the bearing radial clearance is increased, it has a certain angular contact ball bearing performance and can bear combined radial and axial loads. When the rotation speed is high and the thrust ball bearing is not suitable, the thin-walled bearing angular contact ball type can also be selected to bear pure axial load. Compared with other types of bearings of the same size, thin-walled bearings have a low coefficient of friction and a high limit speed.
Thin-wall bearings are mainly used in: model airplanes, remote control cars, machine tools, motors, water pumps, agricultural machinery, textile machinery, laser printers, instruments, measuring instruments, electronic accessories, motors, motors, etc.
