Drilling Rig Parts Axial Spherical Roller Bearing 29424 120x250x78 Customized Services
Drilling Rig Parts Axial Spherical Roller Bearing 29424 120x250x78 Customized Services
Drilling Rig Parts Axial Spherical Roller Bearing 29424 120x250x78 Customized Services
Drilling Rig Parts Axial Spherical Roller Bearing 29424 120x250x78 Customized Services
Drilling Rig Parts Axial Spherical Roller Bearing 29424 120x250x78 Customized Services
Drilling Rig Parts Axial Spherical Roller Bearing 29424 120x250x78 Customized Services
Specifications
Brand Name :
SKF, TNT, YGB, OEM
Model Number :
29424
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T or LC
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden，in case for outer packing. All it's standarded
Name :
29424 Spherical Roller Bearing
Structure :
Thrust
Number of Row :
Single Row
Type :
Roller
Seals Type :
OPEN\Z\ZZ\RS\2RS
Precision rating :
P0 P6 P5 P4 P2
Material :
Chrome steelGcr15, stainless steel
Service :
OEM Customized Services
Description

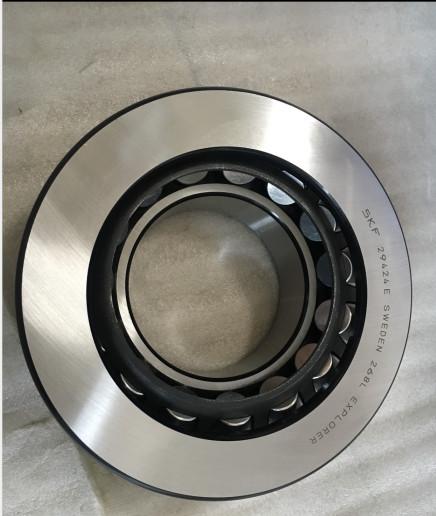

Drilling Rig Parts Axial 29424 Spherical Roller Thrust Bearing 120x250x78

Description:

Item: 29424 Spherical Roller Bearing
Type: Spherical Roller Bearing
Dimensions: 120mm x 250mm x 78mm /Metric
ID (inner diameter)/Bore: 120mm
OD (outer diameter): 250mm
Width/Height/thickness: 78mm
Size: 120x250x78 mm
Quantity: One Bearing
Dynamic load rating Cr: 670,000 N
Static load rating Cor: 2,160,000 N
Limiting Speed:
Grease Lubrication: 1,100 RPM
Oil Lubrication: 1,900 RPM

Thrust Roller Bearing 29424 description

Thrust Roller Bearing 29424 is Thrust Roller Bearing 29424. Thrust Roller Bearing 29424 contains thrust cylindrical roller bearing, thrust spherical roller bearing, thrust tapered roller bearing and thrust needle roller bearing. Thrust Roller Bearing 29424 can bear a heavy load in mining industry and other related industries.

Thrust Roller Bearing 29424s are separable bearings, can only withstand axial load and a slight impact, to limit the shaft (or shell) of the axial displacement in one direction, it can be used as single-axis to the position. But its carrying capacity is far greater than the thrust ball bearings.

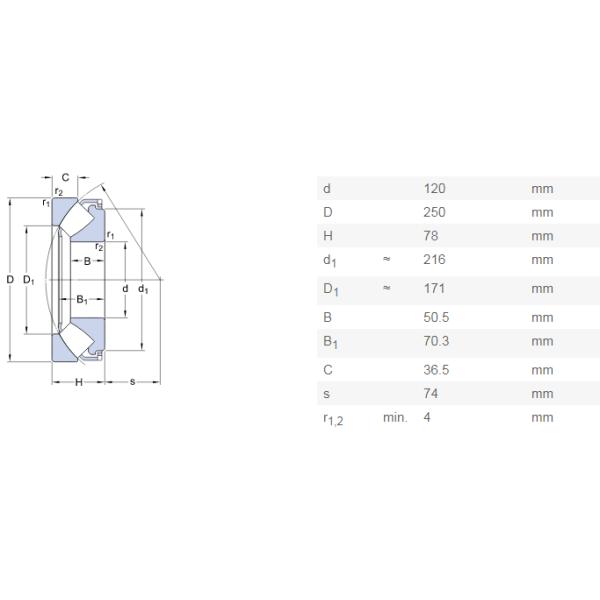

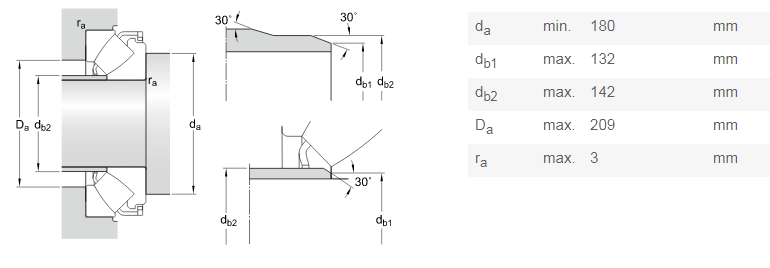

The Drawing:

Drilling Rig Parts Axial Spherical Roller Bearing 29424 120x250x78 Customized Services

Drilling Rig Parts Axial Spherical Roller Bearing 29424 120x250x78 Customized Services

Relatives:

Bearing No. Size(mm)
New Old d D T E
29412 9039412 60 130 42 38
29413 9039413 65 140 45 42
29414 9039414 70 150 48 44
29415 9039415 75 160 51 47
29416 9039416 80 170 54 50
29317 9039317 85 150 39 50
29417 9039417 180 58 54
29318 9039318 90 155 39 52
29418 9069418 190 60 56
29320 9039320 100 170 42 58
29420 9039420 210 67 62
29322 9039322 110 190 48 64
29422 9039422 230 73 69
29324 9039324 120 210 54 70
29424 9039424 250 78 74
29326 9039326 130 225 58 76
29426 9039426 270 85 81
29328 9039328 140 240 60 82
29428 9039428 280 85 86


Why Choose Us

1). World-Class Bearing: We provide our customer with different kinds of Standard and Non-standard World-Class Bearing

2). Technical Testing: Company will check the products one by one before sending you.

3). Technical Assistance: Company can provide you all related technical data if you needed

4). Quick Delivery: You will get your goods within 7 working days after your payment.

5). After-sale service: we support 24 Hours after-sale service

displacement on the radial clearance.

Contact us:

YGB Bearing Co., Ltd is an integrated and modern enterprise engaged in the R&D, manufacture, and sales of high-quality bearings. We are the Bearing experts serving the OEM throughout China as well as the international markets, such as deep groove ball bearing, spherical roller bearing and tapered roller bearing as well as other kinds of bearings.

If needs be free to contact us.
