L623149/L623110/L623149XB/L623110EA Single Row Bearing Single Cup Standard Tolerance
L623149/L623110/L623149XB/L623110EA Single Row Bearing Single Cup Standard Tolerance
L623149/L623110/L623149XB/L623110EA Single Row Bearing Single Cup Standard Tolerance
L623149/L623110/L623149XB/L623110EA Single Row Bearing Single Cup Standard Tolerance
L623149/L623110/L623149XB/L623110EA Single Row Bearing Single Cup Standard Tolerance
L623149/L623110/L623149XB/L623110EA Single Row Bearing Single Cup Standard Tolerance
Specifications
Brand Name :
YGB,OEM,NSK
Model Number :
L623149/L623110
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
500 pcs
Price :
Negotiable
Supply Ability :
10000pcs/day
Delivery Time :
Stock or 15-30days
Packaging Details :
plastic tube+individual box+carton
Name :
CHINA bearing TS type taper roller bearing L623149 L623110
Model :
L623149/L623110
Type :
Tapered Roller Bearing
Number of Row :
Single Row
Size :
114.3x152.4x21.433 mm
Vibration level :
V1, V2, V3
Description

Taper roller bearing L623149/L623110/L623149XB/L623110EA Single Cup, Standard Tolerance,



Description :

Tapered roller bearings L623149/L623110
Bearing number: L623149/L623110
Size (mm) : 114.3x152.4x21.433
Brand: Timken
Bore Diameter (mm) : 114,3
Outer Diameter (mm) : 152,4
Width (mm) : 21,433
Weight - 1,05 Kg
Details: 1): Fast delivery
2): High quality and competitive price
3): Free sample available
4): New package
5): Do what customer wants, Think what customer cares.


The drawings:


L623149/L623110/L623149XB/L623110EA Single Row Bearing Single Cup Standard Tolerance

Product description

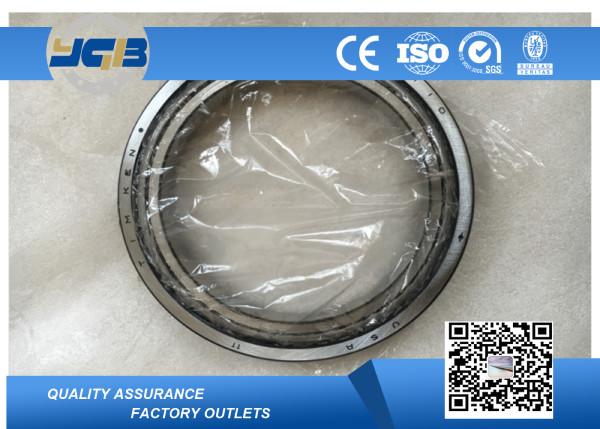

This Timken L623100 Series single cup matches with a single cone (inner ring assembly, sold separately) to assemble into a complete single tapered roller bearing, suitable for applications that support both radial and axial loads.
This cup is matched to its cone assembly based on the load that the bearing needs to support, and if the bearing needs radial internal clearance to accommodate thermal expansion. Generally mounted in opposing pairs on a shaft to evenly distribute loads, this single tapered roller bearing assembly is stable in temperatures ranging from -54 to 120 degrees C (-65 to 250 degrees F).
The single cup is made of Timken's high-alloy steel for durability, heat tolerance, and resistance to deformity under heavy loads.
As part of a separable tapered roller bearing unit, this single cup has an open design that allows for lubrication and accurate adjustments.
This single tapered roller bearing is for use in high-load, moderate-speed applications that include automotive axle systems and conveyor systems in heavy-duty industries such as mining, construction, and agriculture, among others.

Product features

Single-cup (outer ring) for connecting to cones (inner ring assemblies, sold separately) to form a complete single tapered roller bearing
Supports both radial and axial loads between a rotating and non-rotating member
Operating temperatures range from -54 to 120 degrees C (-65 to 250 degrees F)
High alloy steel for durability and heat tolerance
Open configuration for lubrication applied in place

Relatives

Part No. Dimensions (Metric) Approx.
ISO No. d D B C T Wgt. lbs
32203 T2DD017 17 40 16 14 17.25 0.21
32204 T2DD020 20 47 18 15 19.25 0.3
32205 T2CD025 25 52 18 15 19.25 0.42
322/28 T5DD028 28 58 19 16 20.25 0.57
32206 T3DC030 30 62 20 17 21.25 0.62
322/32 T5DC030 32 65 21.5 17 22 0.78
32207 T3DC035 35 72 23 19 24.25 0.95
32208 T3DC040 40 80 23 19 24.75 1.12
32209 T3DC045 45 85 23 19 24.75 1.23
32210 T3DC050 50 90 23 19 24.75 1.3
32211 T3DC055 55 100 25 21 26.75 1.81
32212 T3EC060 60 110 28 24 29.75 2.43
32213 T3EC065 65 120 31 27 32.75 3.26
32214 T3EC070 70 125 31 27 33.25 3.44
32215 T4DC075 75 130 31 27 33.25 3.57
32216 T3EC080 80 140 33 28 35.25 4.41
32217 T3EC085 85 150 36 30 38.5 5.51
32218 T3FC090 90 160 40 34 42.5 7.28
32219 T3FC095 95 170 43 37 45.5 8.82
32220 T3FC100 100 180 48 39 49 10.5
32221 T3FC105 105 190 50 43 53 13
32222 T3FC110 110 200 53 46 56 15.2
32224 T4FD120 120 215 58 50 61.5 18.9
32226 T4FD130 130 230 64 54 67.75 27.5
32228 T4FD140 140 250 68 58 71.75 35.5
32230 T4GD150 150 270 73 60 77 44.2
32232 T4GD160 160 290 80 67 84 54.2
32234 T4GD170 170 310 86 71 91 67.2
32236 T4GD180 180 320 86 71 91 72.1
32238 T4GD190 190 340 92 75 97 87.7
32240 T3GD200 200 360 98 82 104 105.2


FAQ:

1.Q:Are you a factory or trading company?
A: Manufacturing and exporting Bearings.

2.Q: Can I get some samples and do you offer the sample free?
A: Yes, sure, we are honored to offer you samples if we have stock.
And you just need to pay the freight, if have no stock, you need to pay the sample fee and freight.

3.Q: Does the sample fee can be return back?
A: If you place an order, we can return part of the sample fee even all of the fees to you.
It also depends on the quantity of order and the type of sample.
4.Q: What is the MOQ for bearing?
A: According to relative models.
