P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill
P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill
P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill
P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill
P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill
P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill
P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill
P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill
Specifications
Brand Name :
YGB,OEM,SKF,NTN
Model Number :
NU 232ECM / NU 234ECM
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T or LC
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Model :
NU 232ECM / NU 234ECM
Grease :
Mobil polyrex EM,Kyodo Yushi SRL
Port :
Shanghai
material :
GCr15/AISI52100/100Cr6
Seal type :
double shields / Open / double seals
Precision Rating :
P0, P6, P5 ,P4 ,P2
Description

Electrically Insulated Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill

Description :

Model NU 234ECM
Bearing material GCr15/AISI52100/100Cr6
ID*OD*W (mm) 170 X 310 X 52 mm
Seal type double shields
Lead time Stock or 15-30days
Weight(kg) 17.7
Basic dynamic load ratings/C 695 kN
Basic static load ratings/C0 815kN
Limiting speed 2400 r/min
Clearance C2,C0,C3,C4,C5
Vibration Level V1, V2, V3, V4
Precision Rating P0, P6, P5, P4, P2
MOQ No MOQ
Port Shanghai
Grease Mobil polyrex EM,Kyodo Yushi SRL
Payment terms T/T, L/C

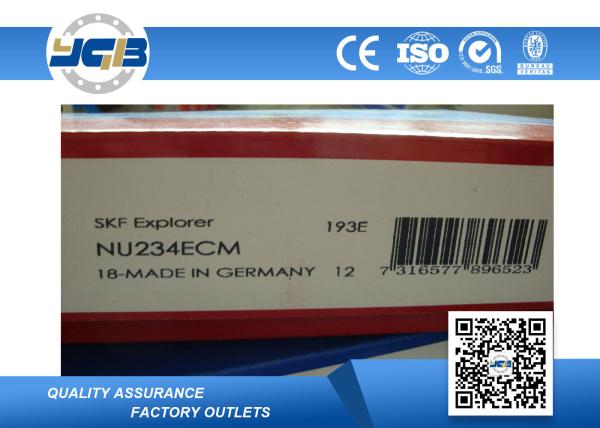

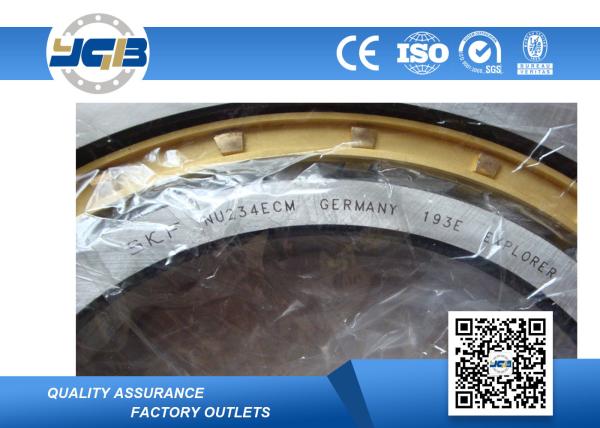

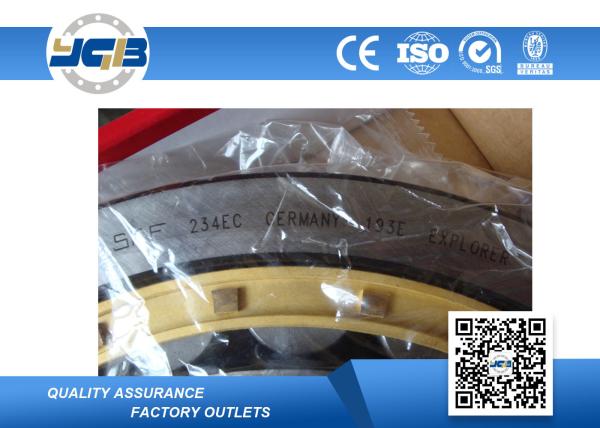

Photo:
P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill
P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill

Drawing:
P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill




Factory show:
P2 Cylindrical Roller Bearings Single Row NU 232ECM / NU 234ECM For Rolling Mill

Radial clearance adjustment method of cylindrical roller bearing:
Commonly used methods to adjust radial clearance of cylindrical roller bearing are as follows:
1. For the side clearance of cylindrical and oval bearing bush, it can be adjusted by manual grinding and scraping or repairing and scraping after turning and adding pad on the face of the bearing.
2. For the top clearance of cylindrical and elliptic bearing, manual grinding and scraping can be adopted, or when the situation permits, the bearing can be adjusted by adding mat on the face of the bearing.
3. For the multi-oil wedge fixed bearing bush, it is not allowed to repair and scrape and adjust the bearing bush gap in principle. If the gap is not suitable, the new bearing bush should be replaced.
4, for the multi-oil wedge tilting type bearing, not allowed to repair the scraping tile, the gap is not appropriate should be replaced due to the tile. For the tile with adjustable thickness, the amount of tile can be adjusted by adding a stainless steel pad under the adjustment block behind the tile, or by thinning the thickness of the adjustment block. Note that for the tilting type bearing bush with the multi-oil wedge, the thickness error between the same group of tiles should be less than 0.01mm.


Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
