Specifications
Brand Name :
YGB,OEM,SKF,NTN,NSK
Model Number :
Deep groove ball bearing 6200 2RS
Certification :
ISO9001:2008
Place of Origin :
Wuxi, China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
T/T , L/C
Supply Ability :
1,000,000pcs per month
Delivery Time :
within 5- 10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Application :
Machinery Equipments
Sample: :
Available free
Material :
stainless steel , Gcr15. carbon steel
Seal Type :
ZZ, 2RS, Z, RS, RZ, 2RZ
Precision :
P0, P6, P5, P4, P2
Virbration :
V1, V2, V3
clearance :
Co, C2, C3, C4
Description


Electrically Insulated Deep Groove Ball Bearing 6200 ZZ 2RS Series Bearings 6202 ZZ 6204 2RS Low Vibration

Description

Model6202-ZZ
Bearing materialGCr15/AISI52100/100Cr6
ID*OD*W (mm)15x35x11 mm
Seal typedouble seals
Lead timeStock or 15-30days
Weight(kg)0.048
Limiting speed22000 rpm
ClearanceC0,C2,C3,C4
Vibration LevelV1 V2 V3 V4
Precision RatingP0,P6,P5,
MOQNegotiation
PortShanghai
GreaseMobil polyrex EM,Kyodo Yushi SRL
Payment termsT/T, L/C

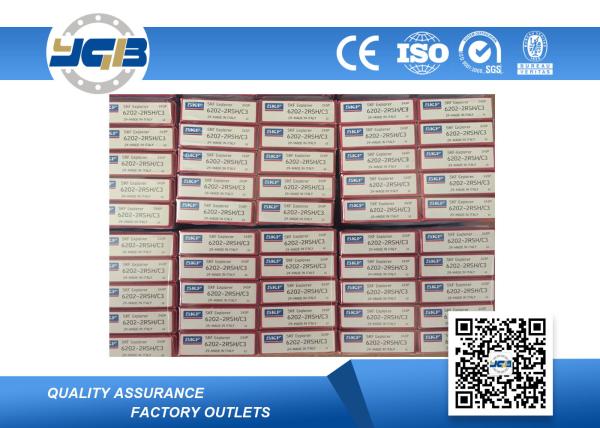

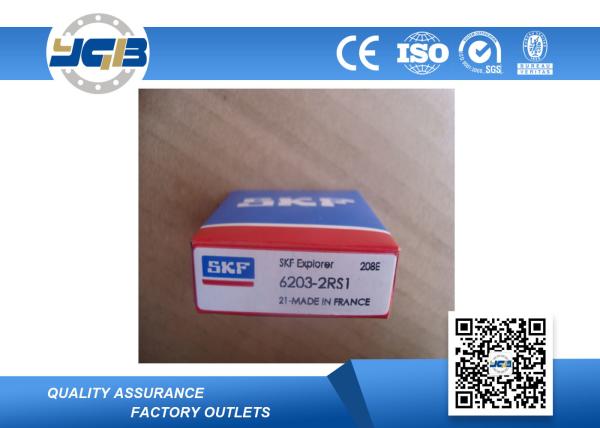

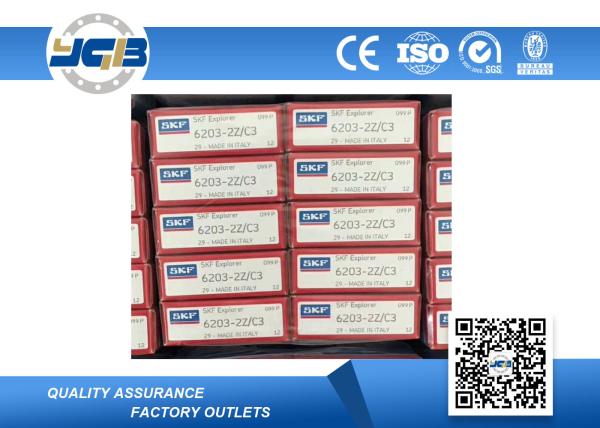

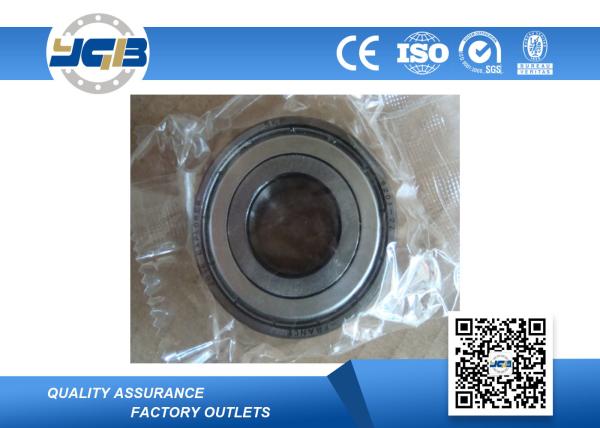

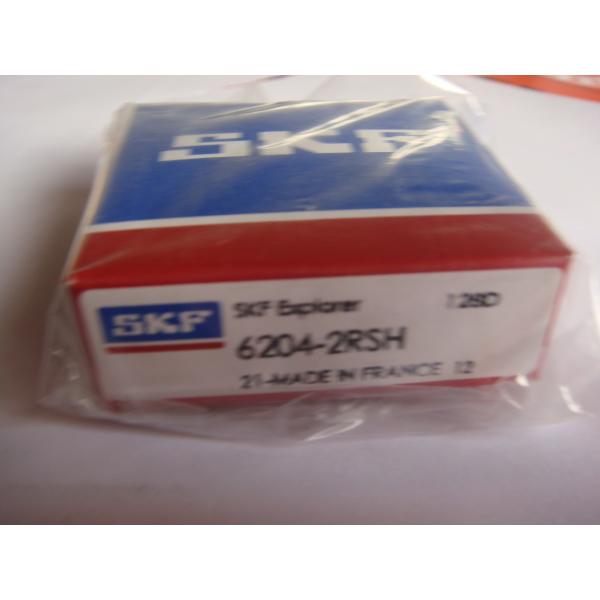

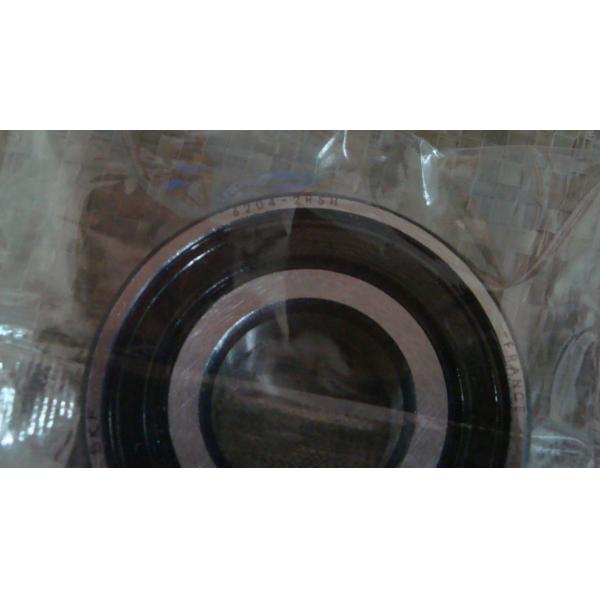

Photo:
Electrically Insulated Deep Groove Ball Bearing 6200 ZZ 2RS Series Bearings 6202 ZZ 6204 2RS Low Vibration

Electrically Insulated Deep Groove Ball Bearing 6200 ZZ 2RS Series Bearings 6202 ZZ 6204 2RS Low Vibration

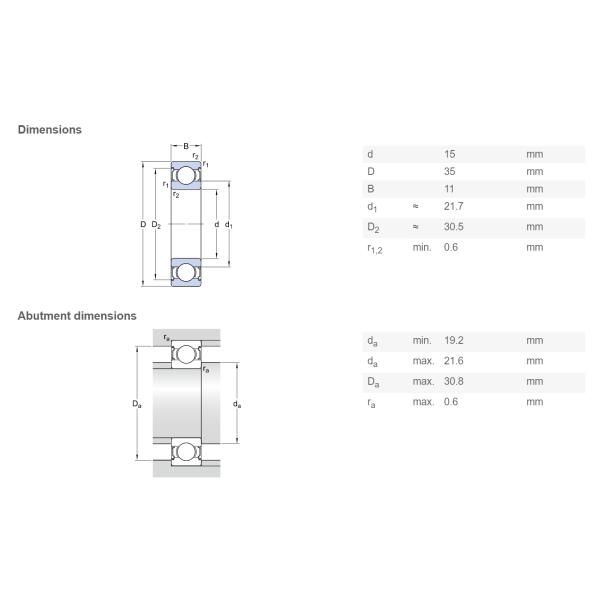

Drawing:
Electrically Insulated Deep Groove Ball Bearing 6200 ZZ 2RS Series Bearings 6202 ZZ 6204 2RS Low Vibration


Packing:
1. Industrial packaging: a). plastic tube + carton + pallet;
b). plastic bag + kraft paper + carton + pallet;
2. Commercial packing: plastic bag + color box + carton + pallet;
3. According to the requirement of customer.
Shipping:
1) Less than 30KGS, we will send by express. ( Door to Door, Convenient )
2) Between 31 - 100 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 100 KGS, we will send by sea. ( Cheapest, on time )


6200 Series Sizes

N0.

Bore

O.D

Width

Chamfer

Load Rating

Maximuum Seed

Weight

mm

mm

mm

mm

Dynamic
Cr

Static
Cor

Grease
r/min

Oil
r/min

Kg/pcs

624

4

13

5

0.2

1.15

0.4

36000

45000

0.0032

625

5

16

5

0.3

1.76

0.680

32000

40000

0.0050

626

6

19

6

0.3

2.34

0.885

28000

36000

0.0080

627

7

22

7

0.3

3.35

1.400

26000

34000

0.0130

628

8

24

8

0.3

4.00

1.590

24000

32000

0.0170

629

9

26

8

0.3

4.55

1.960

22000

30000

0.0190

6200

10

30

9

0.6

5.10

2.390

19000

26000

0.0300

6201

12

32

10

0.6

6.10

2.750

18000

24000

0.0360

6202

15

35

11

0.6

7.75

3.600

17000

22000

0.0460

6203

17

40

12

0.6

9.60

4.600

16000

20000

0.0650

6204

20

47

14

1.0

12.80

6.650

14000

18000

0.1070

6205

25

52

15

1.0

14.00

7.850

12000

16000

0.1250

6206

30

62

16

1.0

19.50

11.300

10000

13000

0.2010
