AC30500020 30BD5020DU Deep Groove Bearing , Air Compressor Cluth Bearing
AC30500020 30BD5020DU Deep Groove Bearing , Air Compressor Cluth Bearing
AC30500020 30BD5020DU Deep Groove Bearing , Air Compressor Cluth Bearing
AC30500020 30BD5020DU Deep Groove Bearing , Air Compressor Cluth Bearing
Specifications
Brand Name :
YGB,SKF,NT, OEM
Model Number :
6306
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
5000 pcs
Price :
negotiation
Payment Terms :
T/T , L/C
Supply Ability :
1,000,000pcs per month
Delivery Time :
within 5- 10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Name :
Single row deep groove ball bearings
Seals Type :
OPEN ZZ 2RS RS
Material :
Bearing Steel
Service :
OEM Customized Services
Certificate :
ISO9001:2008
Feature :
Long Life durable
Application :
Agricultural Machinery
Description

AC30500020 30BD5020DU Air Compressor Clutch Bearing From Chinese Factory

Description :

Bearing Number: 30BD5020
Brand: SKF or OEM
Size (mm): 30 x 50 x 20/20
Material: GCr15 Chrome steel fully hardening
Precision: P0 P6 P5
Clearence: C1:20μm-35μm; C 2:35μm-50μm; and Axial clearance less than 60μm
Cage: Reinforced polyamide cage
Country of Origin: China
Certification: ISO9001

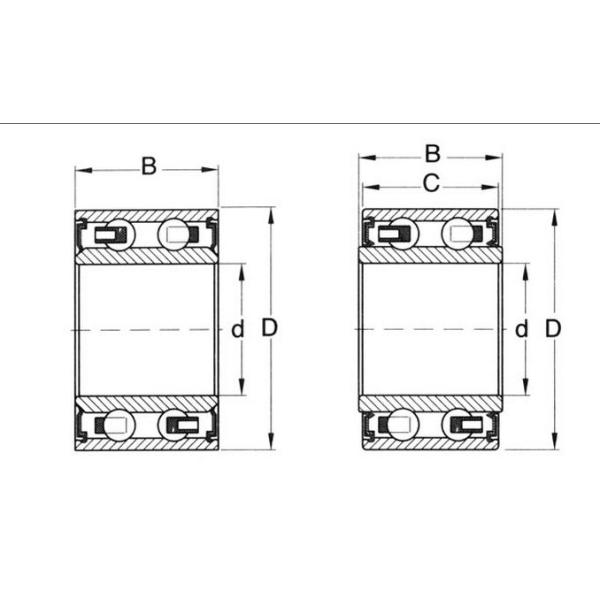

The Drawing:

AC30500020 30BD5020DU Deep Groove Bearing , Air Compressor Cluth Bearing

Series Models:

Basic Bearing No. weight Boundary dimensions (mm) Application Car make
No. NACHI NSK KOYO KG d D B C
30BD4518

30BD4518

T12DD

 30 45 18 18 HYUNDAI
30BD4712

30BX04S1

-2DST

 30 47 12 12 TOYOTA
30BD461816 336-2001 30 46 18 16
30BD4718 30BG04S8G-2DS 83A693 30 47 18 18 SUZUKI, DAI, MAZDA
30BD472118 30BC04 83A693A 30 47 21 18 TOYOTA
30BD4720

30BD4720T12

DDUCG21

 30 47 20 20
30BD4722 30BG4S13-2DST2 30 47 22 22
30BD5020 30 50 20 20
30BD5220 30BGS32G-DST(101.007) 30 52 20 20
30BD5222 30BGS10G-2DST2 30BD5222DU DAC3052-32RD 0.165 30 52 22 22 FORD, TOYOTA, HONDA
30BD5523 30BD40DU 0.204 30 55 23 23 Ford, Hyundai, Kia,Bluebird
30BD5526

30BGS1

-2NSL

 DAC3055CRK 30 55 26 26
30BD6227

30BG05S1

-2NSL

 W5206 30 62 27 27
32BD4718 32BG04S3G 32BD4718DUK 0.093 32 47 18 18 AKTI
32BD522015 320-2001 2TS2-DF0676LH 32 52 20 15 BENZ
32BD5523 32BG05S1 -2DSL 32BD45DU 32 55 23 23 MAZDA, XIALI
35BD4820 35BD4820DUM6 35 48 20 20 Toyota
35BD5020 35BG05S7G-2NST 35BD5020DU DAC35500020 35 50 20 20 MITSUBISHI
35BD5220 35BD5220DF (101.011) 0.126 35 52 20 20
35BD5222 35BD5222DFX7 (101.006) DAC35520022 35 52 22 22
35BD5223 35BG05S6G 35 52 23 23
35BD5520 35BG05S10G-2DST2 35BD219DUK DAC35550020 0.1486 35 55 20 20 GM , HONDA , NISSAN
35BD5524 35 55 24 24
35BD6221 35BG06G-2DS 35 62 21 21
35BD6224 DF0789(101.008) 35BD6224DU 35 62 24 24
35BD62277 35BD210DDU BD30-11A 35 62 27.7 27.7 CHRYSLER WHITE
38BD5417 38BG05S2G-2DS 0.112 38 54 17 17 SUZUKI , DAIHATSU
38BD6224 101.008 38 62 24 24

Basic Information:

Single row radial ball bearings are the most widely used bearings

which makes these bearings suitable for radial loads or a combination of thrust and radial loads. This design permits precision tolerances even at high-speed operation.

Shielded bearings are protected on one, or both sides (suffixes Z and ZZ, respectively) by metal shields fastened to the outer ring.

This close clearance labyrinth seal retains the lubricant and prevents the entrance of foreign matter.

Sealed bearings incorporate steel reinforced rubber seals securely fastened to a groove on the outer ring.

Contact with the inner ring is by sealing lip (Contact Suffix RS). Or, non-contact with the inner ring is by labyrinth seal (Non-contact Suffix LLB) to provide positive sealing at all times.

Payment:

1: T/T: 30% as deposit and 70% balance after getting a copy of B/L.
2: L/C (cannot for branded bearings.)
3: Discuss together between buyer and supplier.
